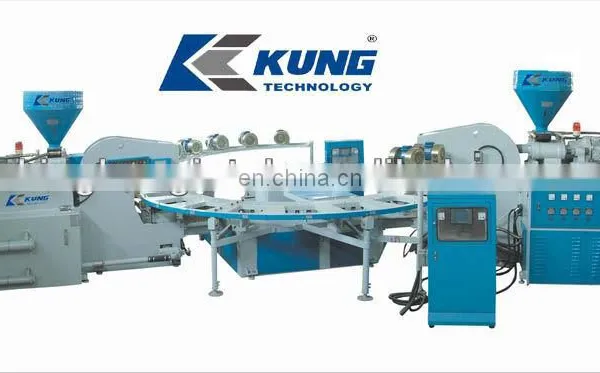

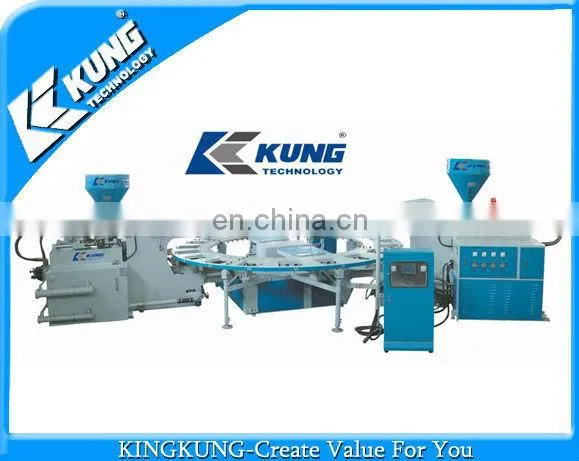

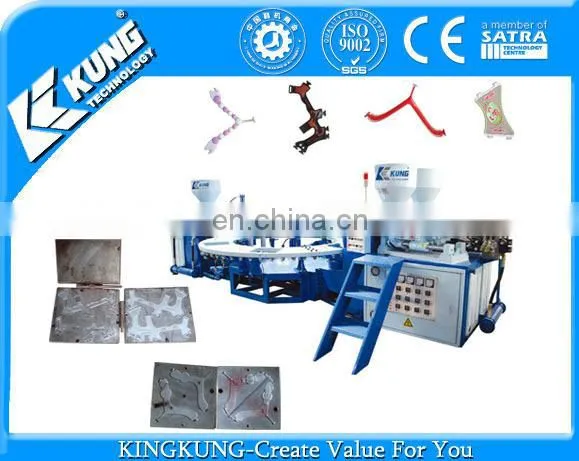

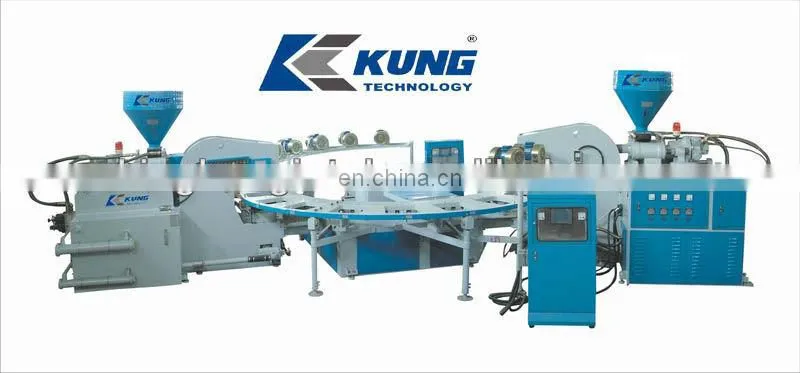

Full-Automatic Type of Double-color Plastic Shoes Injection Molding
1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.
4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.
5. We can offer many newly styles for you reference.
6. We also can offer the raw material for you according to your request.
If any new inquiry, pls feel free contact with us! We will offer you the high quality goods
Features:
1.Specially for producing various single/double sports soles, women/men slippers and sandals.
2.It is suitable for thermoplastic raw materials, foaming or non foaming, such as PVC,TPR and TPU.
3.The machine can be controled by the computer to work automatically with a power wave interference filter protect system.
4.The machine can turn off automatically when the power is not stable, and the computer will detect the some parts of the machine when it works and show the results on the screen
5.Adopting imported linear potention meter to control plastic voulme. The accuracy is up to 0.1mm is injects the material accurately. The product is beautiful and has reliable quality.
6.The heating zone adopts advanced electronic solid state relay. It can frequently electrify for long time and without any noise.It adopts thermocouple to inspect three times per second and it shows the temperature on the display screen.
7.Automatic adjustment system to depth of parallelism of die set can ensure regular production when the die set is unparallel. The quality product without rough selvedge may be guaranteed.
8.The strong close mold base and lock mould power close mould with one steps control different color each two color together injection can reduce waiting time quicken production rate and promote productivity.
9.The machine can produce single/double color finished products
10.The output is 180 pairs/hour.
Technical Terms |
Unit of Paramter |
HJ-6220A |
Injection Capacity |
g |
780x1/620x1 |
Injection precision |
g |
±0.45 |
Injection hydraulic presure |
Mpa |
12 |
Screw rotary speed |
r/min |
0-200 |
Injection speed |
CM/sec |
10 |
Molud clamping force |
Ton |
90 |
system hydraulic presure |
Mpa |
16 |
Max.injection stroke |
mm |
180 |
Molud opening stroke |
mm |
200 |
Oil tank capacity |
KG |
720 |
Heating power |
Kw |
10 |
Power of motor |
kw |
22x2 |
Mould station number |
a |
20 |
Max.dimension of mould |
M |
8.5x3.6x2 |
Machine werght |
Ton |
11.5 |
