Renew Toggle Switch

Name: Renew Toggle Switch
Brand: RENEW
SKU: 158677638

US$ 0.9 - 1.3 MOQ: 20 Pieces

Key Specifications

Brand Name:

RENEW

Place of Origin:

China

Model Number:

RT-S6-23B

Yueqing Renew Electronic Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

5 days

Brand Name RENEW

Place of Origin China

Model Number RT-S6-23B

Max. Voltage 250V

Max. Current 15A

Mechanical Life 50 000 operations

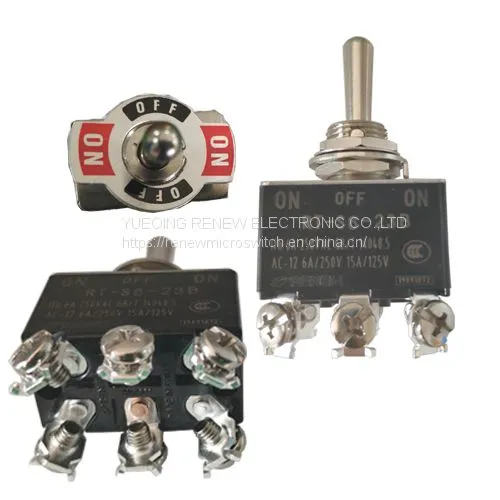

RT-S6-23B/ RT1322 Two pole ON-OFF-ON type 3-way toggle switch

Model No.: RT-S6-23B

Rated data and performance

Rated working current	15A,10A,6A,3A/125V,250VA(resistive load) 12VDC 30A
Contact type	Contact resistance (initial value )		Less tan 15mΩ
	Contact material		Sliver cadmium oxide contact (if no need cadmium,[according with ROSH certificate ] can customize
Electrical	Insulation resistance(initial value )		Above 100 mΩ(use the DC500V insulation resistance test)
	Dielectric strength		Between Non-connect terminal(initial value):1000V 50/60HZ 1 min Between non voltage metal parts and each terminal:2000V 50/60HZ 1min Between grounding and each terminal: 2000V 50HZ 1 min
Mechanical	Shock resistance	In the free position	Less than 98m/s2(10G)
		In the full operating position	Less than 500m/s2(30G)
	Vibration resistance		1.5mm double amplitude 10-55HZ (contact gap is under 1ms )
Capacity	Mechanical		50,000times above (on/off frequency 20times/min)
	Electrical (resistor load)		25,000times above (rated load, 7times/min)
Using condition	Ambient temperature/ humidity		-20~+70(with no icing ), under the 85%RH (+5~20)
	The max on/off frequency		30times/min
