Horizontal Parting Sand Shooter Metal Casting Machine

Horizontal Parting Sand Shooter Metal Casting Machine thumbnail-1
Horizontal Parting Sand Shooter Metal Casting Machine photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Delin Horizontal parting sand Shooter metal casting machine
Contact Supplier Request Quote Chat Now
Nan'an Delin Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name Delin Horizontal parting sand Shooter metal casting machine
Model Number Dl-361 Horizontal parting sand Shooter metal casting machine
Power(W) 10kw
Dimension(L*W*H) (2110*1550*2080)mm
Weight 1220kg
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.full automatic
2.high-efficiency
3.Newest design



Product Description





                                    DL-361-A-01





Horizontal parting sand Shooter metal casting machine



 MAIN SPECIFICATION AND TECHNICAL PARAMETERS DL-361-A-01 Automatic Core Shooting Machine(with nylon conveying band)
1.Greatest Weight of Sand Cores 6kg
2.The Biggest Size of Core Boxes(L*W*H) (400*280*200)mm
3.Size of Heating Plate(L*H) (350*200)mm
4.Heating Power 9.6kw
5.Ltinerary of Plunger Under Pressure ≤ 30mm
6.Ltinerary of Opening Mould ≤ 300mm
7.The Longest Ltinerary of Cored-pull Guide Bar 150mm
8.Total Power of The Machine 10kw
9.Size of Appearance of Machine(L*W*H) (3500*1480*2350)mm
10.Net Weight of The Whole Machine 1543kg
11.Nylon Conveying Band(L*W*H) (2200*400*100)mm
12.Increased Angle of Nylon Conveying Band 2'-4'
13.Transmission Speed 72mm/s





                                    DL-361

Horizontal parting sand Shooter metal casting machine



MAIN SPECIFICATION AND TECHNICAL PARAMETERS DL-361  Automatic Core Shooting Machine
1.Greatest Weight of Sand Cores 6kg
2.The Biggest Size of Core Boxes(L*W*H) (400*280*200)mm
3.Size of Heating Plate(L*H) (350*200)mm
4.Heating Power 9.6kw
5.Ltinerary of Plunger Under Pressure ≤ 30mm
6.Ltinerary of Opening Mould ≤ 300mm
7.The Longest Ltinerary of Cored-pull Guide Bar 150mm
8.Total Power of The Machine 10kw
9.Size of Appearance of Machine(L*W*H) (2110*1550*2080)mm
10.Net Weight of The Whole Machine  1220kg

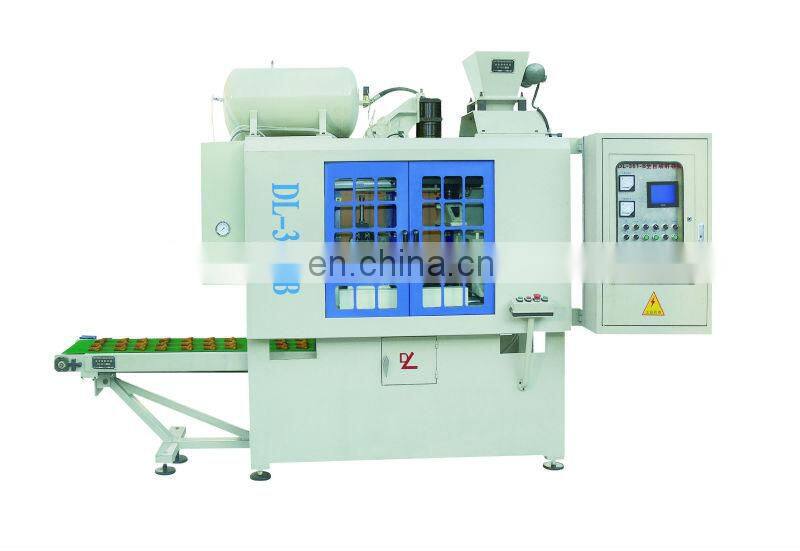

                             DL-361-B





Horizontal parting sand Shooter metal casting machine

MAIN SPECIFICATION AND TECHNICAL PARAMETERS  Automatic Core Shooting Machine(with nylon conveying band)
1.Greatest Weight of Sand Cores 6kg
2.The Biggest Size of Core Boxes(L*W*H) (400*280*200)mm
3.Size of Heating Plate(L*H) (350*200)mm
4.Heating Power 9.6kw
5.Ltinerary of Plunger Under Pressure ≤ 30mm
6.Ltinerary of Opening Mould  ≤ 300mm
7.The Longest Ltinerary of Cored-pull Guide Bar 125mm
8.Nylon Conveying Band(L*W*H) (2650*400*100)mm
9.Total Power of The Machine 10kw
10.Increased Angle of Nylon Conveying Band 2'-4'
11.Transmission Speed 72mm/s
12.Size of Appearance of Machine(L*W*H) (3800*1000*2350)mm
13.Net Weight of The Whole Machine 1185kg







                         DL-800

Horizontal parting sand Shooter metal casting machine

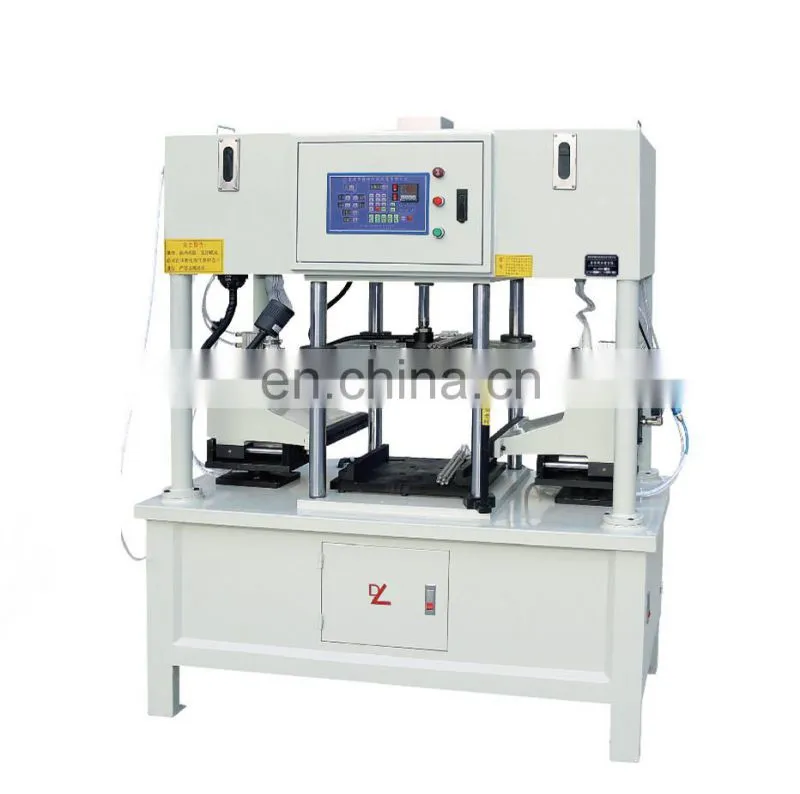

MAIN SPECIFICATION AND TECHNICAL PARAMETERS Automatic Double Head Core Shooting Machine
1.Greatest Weight of Sand Cores 15kg*2
2.The Biggest Size of Core Boxes(L*W*H) (800*800*500)mm
3.Left and right ltinerary of plunger ≤ 250mm
4.The longest ltinerary of clamping when vertical clamping 700mm
5.Net weight of the machine 3000kg
6.Heating Power 37kw
7.Size of Appearance of Machine(L*W*H) (2400*1240*3062)mm











                               DL-400-B

Horizontal parting sand Shooter metal casting machine



MAIN SPECIFICATION AND TECHNICAL PARAMETERS Automatic Double Head Core Shooting Machine
 1.Greatest Weight of Sand Cores  3.2kg*2
2.The Biggest Size of Core Boxes(L*W*H) (380*280*200)mm
3.Left and right ltinerary of plunger 125mm
4.The longest ltinerary of clamping when vertical clamping ≤ 300mm
5.Net weight of the machine   513kg
6.Heating Power  8kw
7.Size of Appearance of Machine(L*W*H) (1420*680*1700)mm















                                                                                       DL-600-B

Horizontal parting sand Shooter metal casting machine

 MAIN SPECIFICATION AND TECHNICAL PARAMETERS Automatic Double Head Core Shooting Machine
1.Greatest Weight of Sand Cores  5kg*2
2.The Biggest Size of Core Boxes(L*W*H)  (500*500*250)mm
3.Left and right ltinerary of plunger  175mm
4.The longest ltinerary of clamping when vertical clamping  ≤ 350mm
5.Net weight of the machine  855kg
6.Heating Power  15kw
7.Size of Appearance of Machine(L*W*H)  (1850*800*2100)mm









                         DL-361-A



Horizontal parting sand Shooter metal casting machine

MAIN SPECIFICATION AND TECHNICAL PARAMETERS Automatic Core Shooting Machine(with nylon conveying band)
1.Greatest Weight of Sand Cores 6kg
2.The Biggest Size of Core Boxes(L*W*H) (400*280*200)mm
3.Size of Heating Plate(L*H) (350*200)mm
4.Heating Power  9.6kw
5.Ltinerary of Plunger Under Pressure ≤ 30mm
6.Ltinerary of Opening Mould ≤ 300mm
7.The Longest Ltinerary of Cored-pull Guide Bar  150mm
8.Nylon Conveying Band(L*W*H) (2200*400*100)mm
9.Total Power of The Machine 10kw
10.Increased Angle of Nylon Conveying Band 2'-4'
11.Transmission Speed 72mm/s
12.Size of Appearance of Machine(L*W*H) (3500*1550*2200)mm
13.Net Weight of The Whole Machine 1350kg

Horizontal parting sand Shooter metal casting machine



Company Information



Nan’ an Delin Machinery Manufacturing Co.,Ltd ,

has a history of more than 20 years,

located in sanitary hometown is the earlier professional equipment manufacturer in the southern parts of China.

With an area of 50000 square meters,as well as 350 workers ,including 65 middle &high-class professional technicians.

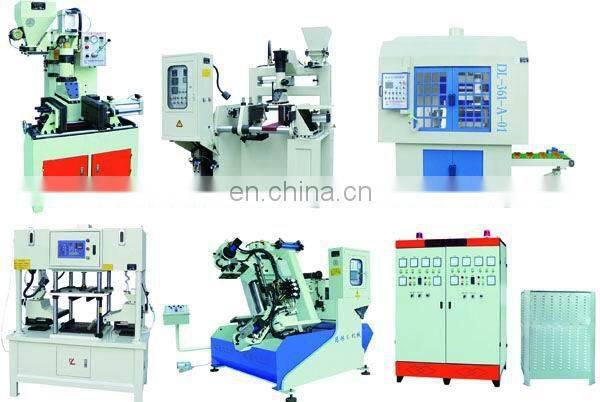

  Main products:Automatic molding machine ,Low-pressure die casting machine,Gravity casting machine,Furnace,Core shooting machine,

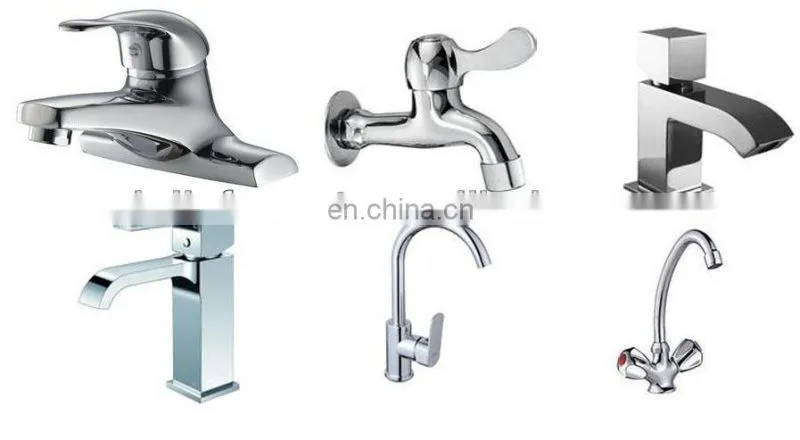

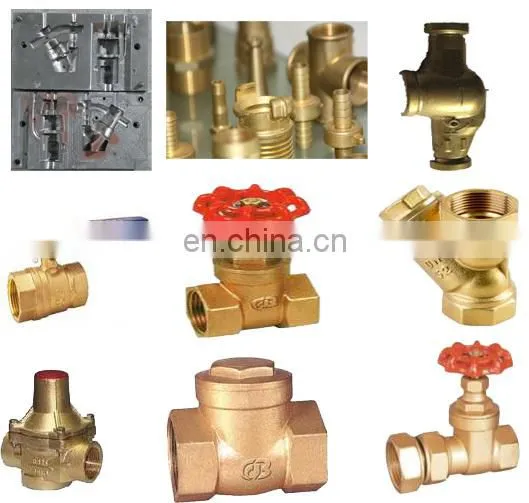

Mix sand machine,etc.Widely used in plumbing,sanitary ware,car spares,valves,iron casting lines, etc
