Specifications

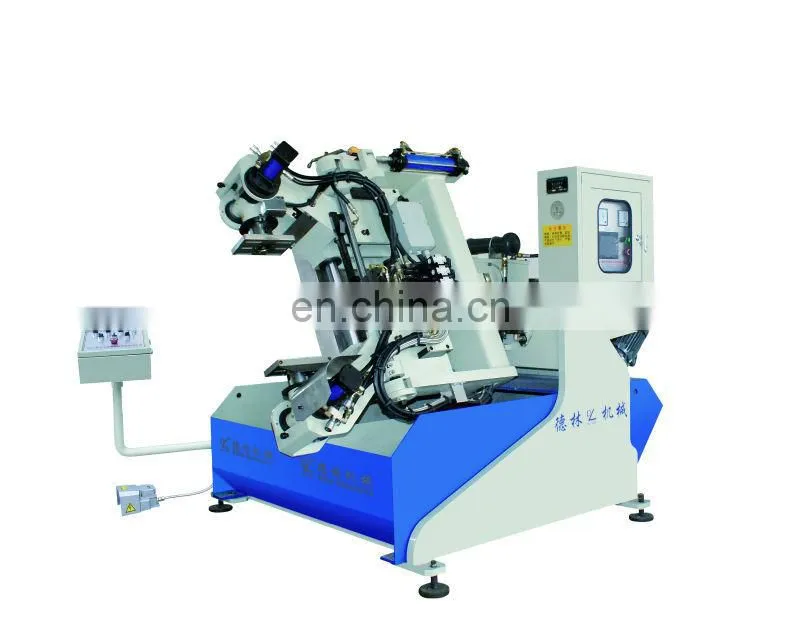

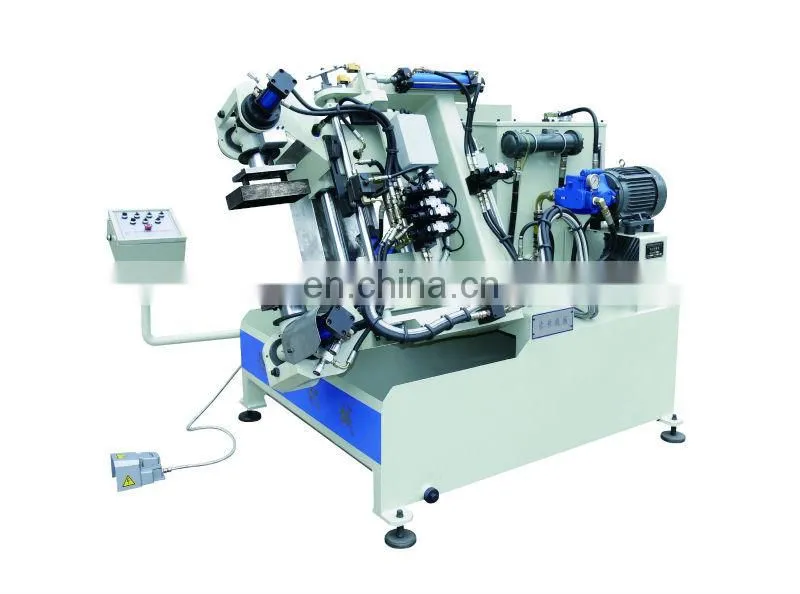

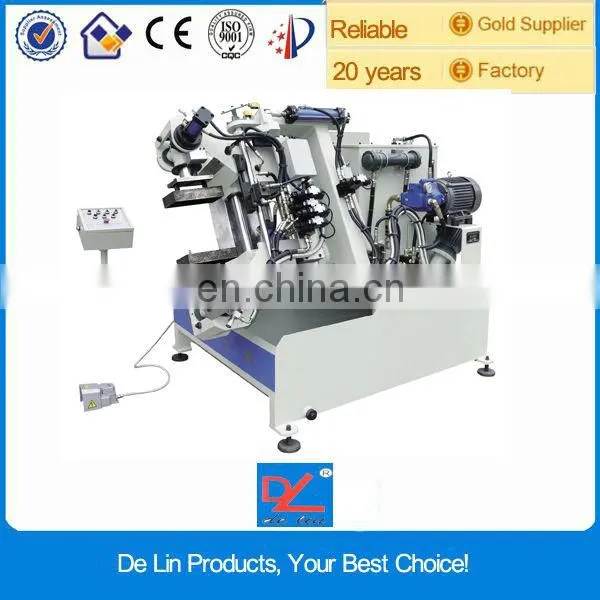

vacuum casting machine1.High shot speed
2.Applied to gravity casting industries
3.can casting copper and non-ferroallo
1.brass die casting machine feature:
- Big inclination angle of mold cavity,can meet different products′casting techmique.
- Adjustable rotating speed of mold cavity,improve mold exhausting.
- PLC control,full hydraulic drive,high dependability.
- Urgent stop button in set on the machine body,it is for easy.
- It is convenient installing and regulating
2.Main Specification And Technical Parameters

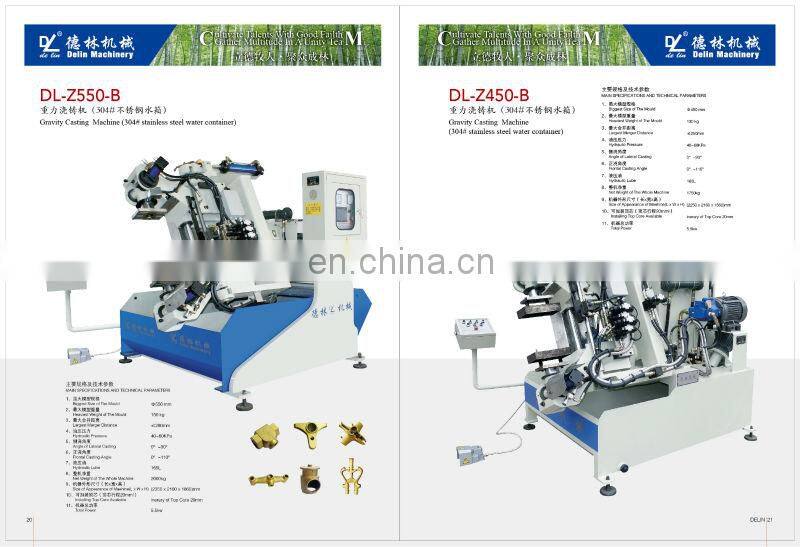

DL-Z450-B
1. Specification of the largest model : Φ450mm
2. Heaviest Weight of the mould: 130kg
3. Maximum combination distance : ≤250mm
4. Net weight of the complete machine : 1750kg
5. Hydraulic pressure: 40-60kpa
6. Frontal casting angle: 0°-110°
7. Angle of lateral casting: 0°-90°
8. Hydraulic Lube: 163L
9. Total power: 5.5kw
10. Installing Top core available: inerary of top core 20mm
11. Size of appearance of machine(LxWxH): (2250x2160x1560)mm
DL-Z550-B
1. Specification of the largest model : Φ550mm
2. Heaviest Weight of the mould: 150kg
3. Maximum combination distance : ≤280mm
4. Net weight of the complete machine : 2000kg
5. Hydraulic pressure: 40-60kpa
6. Frontal casting angle: 0°-110°
7. Angle of lateral casting: 0°-90°
8. Hydraulic Lube: 165L
9. Total power: 5.5kw
10. Installing Top core available: inerary of top core 20mm
11. Size of appearance of machine(LxWxH): (2350x2100x1860)mm

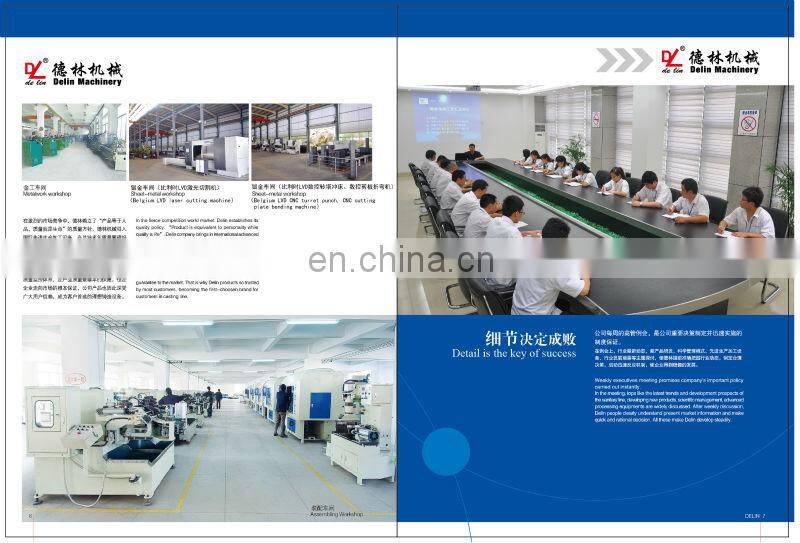

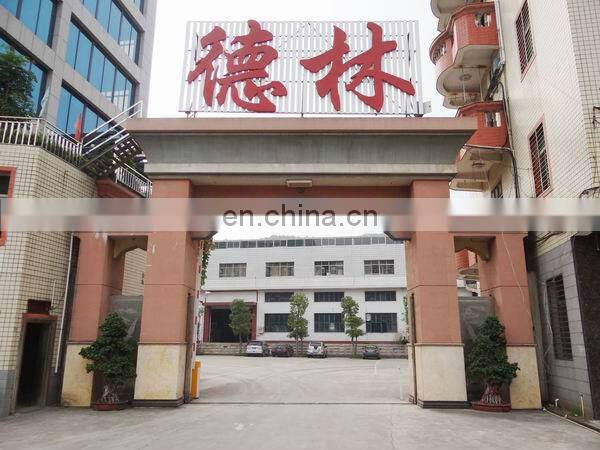

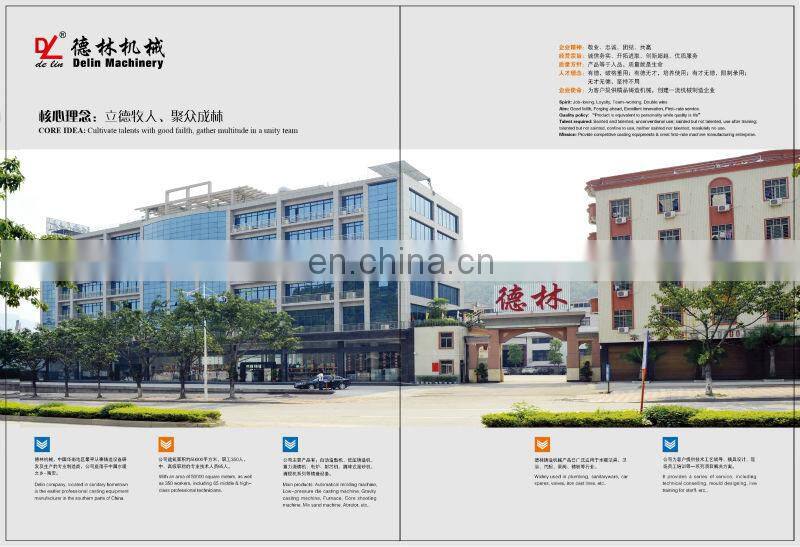

Company Information
Nan’an Delin Machinery Manufacturing Co.,Ltd ,has a history of more than 20 years,
located in sanitary hometown is the earlier professional equipment manufacturer in the
southern parts of China.With an area of 50000 square meters,as well as 350 workers ,
including 65 middle &high-class professional technicians.
Main products:Automatic molding machine ,Low-pressure die casting machine,
Gravity casting machine,Furnace,Core shooting machine,Mix sand machine,etc.
Widely used in plumbing,sanitary ware,car spares,valves,iron casting lines, etc
