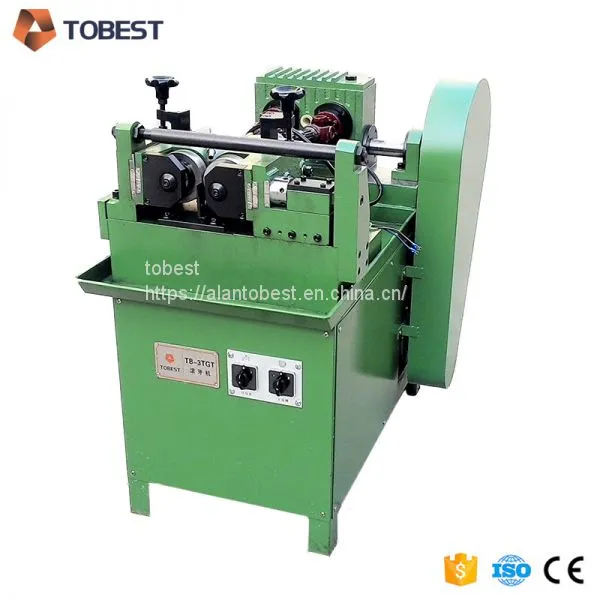

External Thread Making Machines Small Thread Rolling Machine TB-3TGT

Name: External Thread Making Machines Small Thread Rolling Machine TB-3TGT
Brand: TOBEST
SKU: 158627746

US$ 3750 - 4750 MOQ: 1 Set

Key Specifications

Brand Name:

TOBEST

Place of Origin:

China

Model Number:

TB-3TGT

Tobest

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

35 days

Brand Name TOBEST

Place of Origin China

Model Number TB-3TGT

After-sales Service Provided No overseas service provided

Warranty 12 months

Weight 440(KG)

Dimension(L*W*H) 650*600*750mm

Production Capacity 4-25 pcs/min

Voltage 3-380V 50HZ

Certification ISO 9001-2008, CE

Application Bolts, screws, thread rods, etc

Condition New

Power(W) 1470W

External thread making machines small thread rolling machine TB-3TGT

Features:

1.Under fixed rolling mode, adopt eccentric-type process for thread extrusion.

2.Specially for set screws and fastening screws.

3.Equipped with additional vibration disc to realize full automatic production so that the manpower can be saved effectively.

4.Adopt cardan joint for connection and drove by worm gear and rod to improve the product quality.

Technical Parameter of TOBEST TB-3TGT

Work piece diameter				φ2-φ10/mm
Range of pitch rolled				0.4-1.5P
Length of thread rolled				no limited
Spindle speed				50rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Distance between die spindles				90-130mm
Machine motor				2HP(1470W)
Distance from lathe bed to rolling die				85mm
Supply voltage				380V
Weight(reference)				440(KG)
Package Dimension(LWH)				880760760mm
Dimension(LWH)				650600750mm
Bearing brand				NSK,UBC
Certification				ISO 9001-2008, CE
Application				Bolts, screws, thread rods, fasteners, etc
Brand Name				TOBEST
Color				Green(or according to your need)
Package				Wooden case
Warranty				12 months
