Small Capacity Egg Wafer Roll Making Machine
- T/T Credit Card
You May Like
-
Instant Coffee Powder Making Machine/coffee Instant Production Line
-
Coffee Powder Processing Line/coffee Powder Instant Grinding Machine
-
Coffee Bean Processing Plant/instant Coffee Bean Processing Line
-
Rack Roll-in Rotary Industrial Bread Baking Machine/Big Bakery Ovens/Industrial Bakery Equipment
-
Wood Ice Cream Spoon Making Plant
-
Instant Coffee Production Line/machine/equipment
Product Description
Introduction
This direct-fired egg roll making machine is a new type of food processing equipment, which is suitable for manufacturing bi-color or single-color pastry egg roll with or without filling in various specifications. It adopts photoelectric or saw blade cutting to produce egg rolls, and the length can be optionally adjusted. The inner diameter is 7-10mm, and the maximum could be 25mm. It is composed of pulper, center depositor, baking forming machine and cooling conveyor. This machine adopts diesel oil and liquefied gas baking, do not subject to the influence of voltage. Moreover, it is characterized with low noise, high level of automation and free environmental pollution. The material of this machine are selected in accordance with food hygiene standards.
Features
1.Two dough band and two lines of stick, to get high capacity.
2.The oven can be baked by gas/electricity/diesel, and the heating system adopts the automatic ignition technique.
3.Auto alarm system. The gas supply will be turned off when alarming.
4.Auto temperature control system. Effectual heat preservation can fully use the energy.
5.A transducer is used to regulate the speed of the main motor.
6.The thickness of sheet is adjustable.
7.The length of stick is also changeable. To adjust by the magic-eye
8.The diameter of stick is changeable, just need to change the winding shaft.
9.The wafer stick can be partly or fully filled.
10.Impeller mixer for slurry can shorten the mixing time, and get good quality.

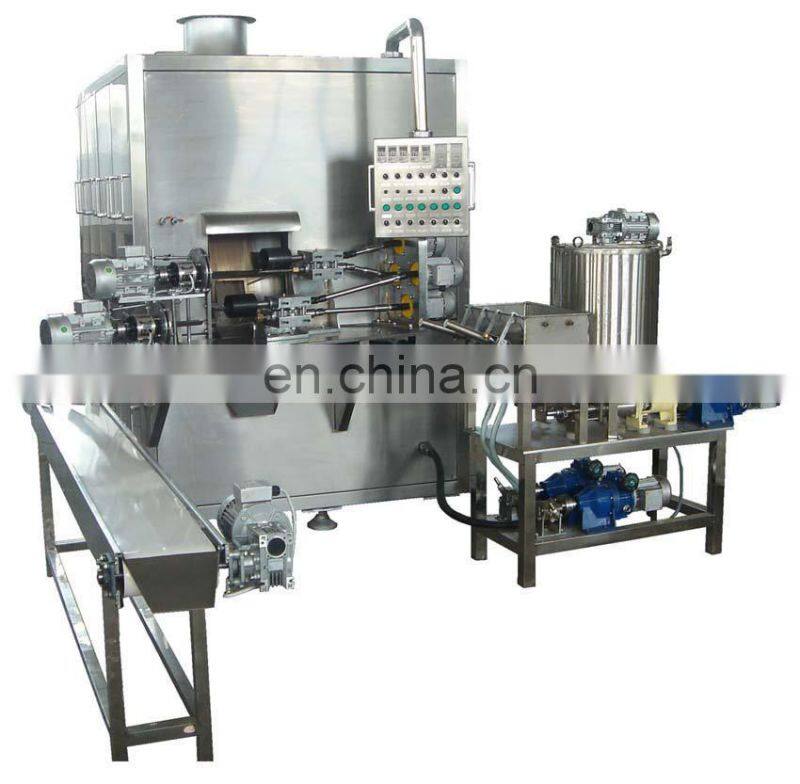

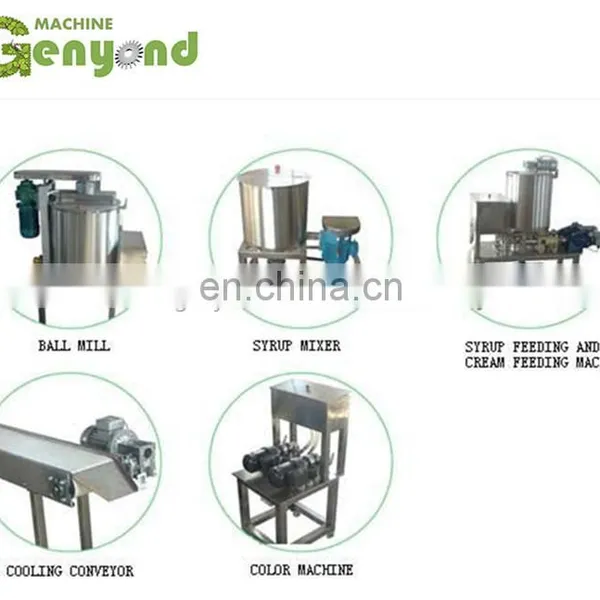

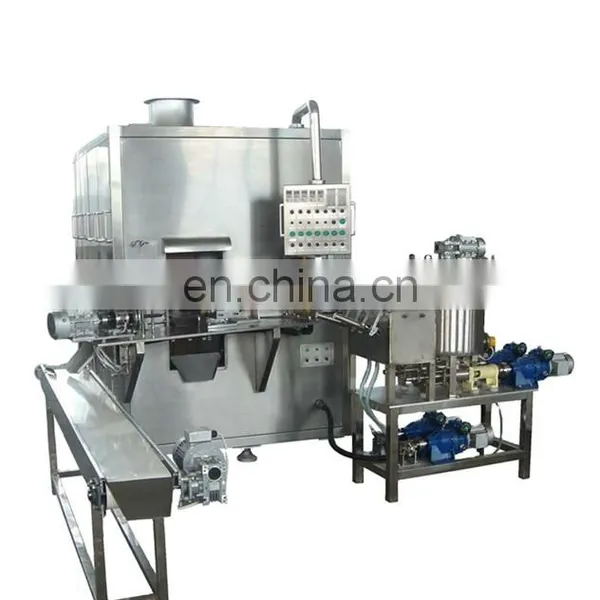

Production line composition | ||||||

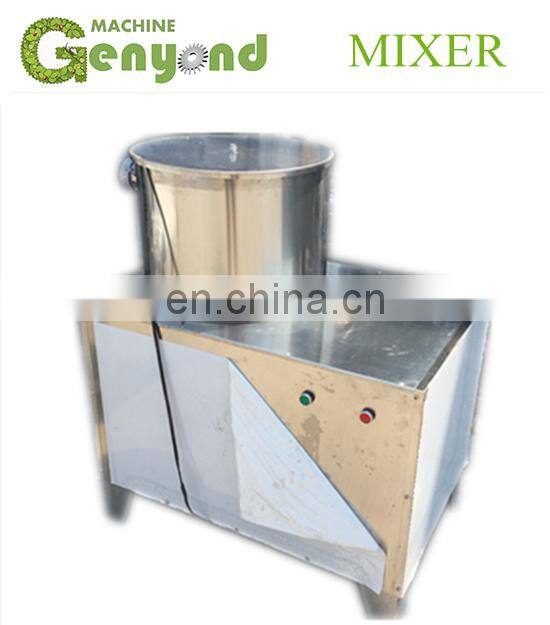

Slurry mixer: to make slurry | ||||||

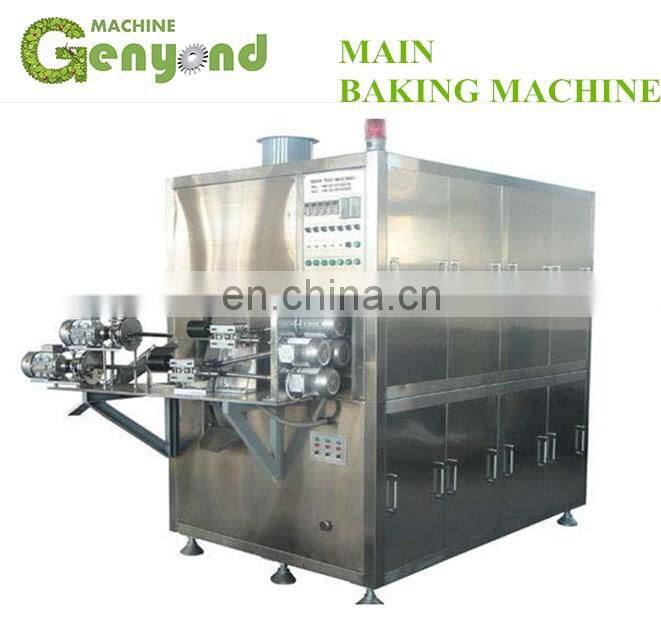

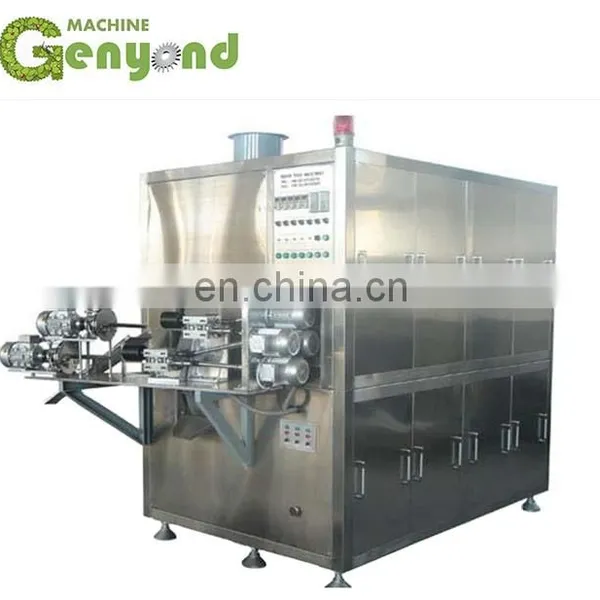

Baking machine: to bake the dough strip and roll the strip into stick and cut into required size | ||||||

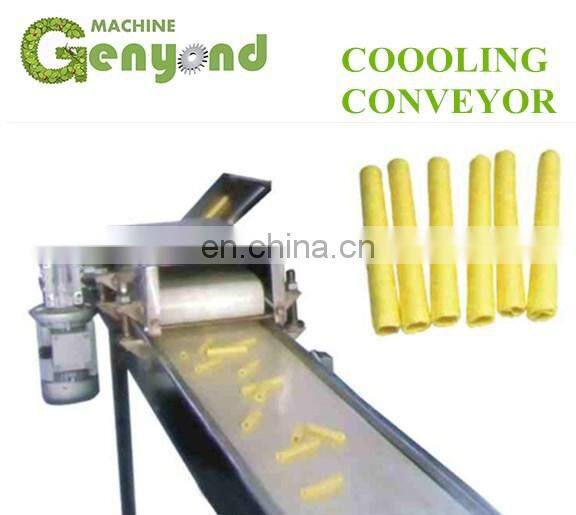

Cooling conveyor: to cool the shaped stick | ||||||

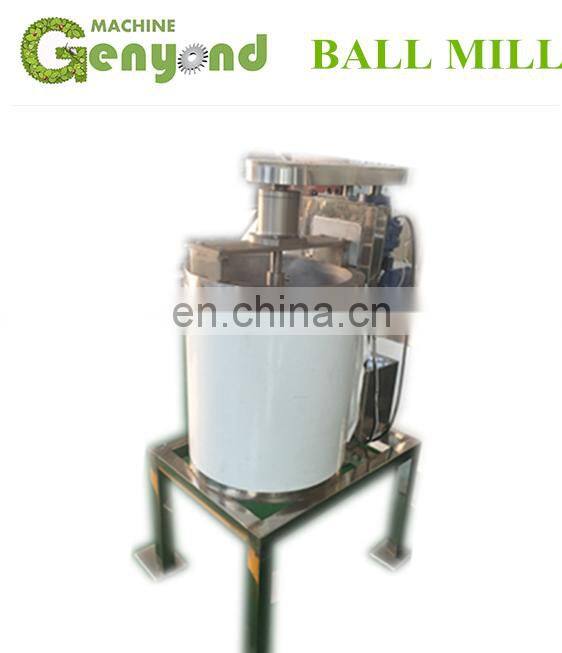

Ball mill: to make cream or chocolate cream for filling | ||||||
Coloring machine: to make the side color strip for dual color products | ||||||
Drum diameter | ||||||
ENERGY CONSUMPTION | Electric Oven: Power consumption 45KW/hr | |||||
Diesel oven: diesel oil consumption: 4kg /hr . Power consumption :3kw/hr | ||||||
LPG Gas oven : Gas consumption: 3.5kg/hr power consumption:3kw/hr | ||||||
Power | 60kw | |||||
Stick diameter | Between 8~16mm | |||||
Stick length | 30~150mm, can make more longer according client's special order | |||||
Capacity | hollow products 25~30kg/h | |||||
filled products: 50~60kg/h | ||||||
Dimensions | 3400×1700×2500mm | |||||
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging
Standard export wooden package
Delivery
3-40 days aftert confirming, detail delivery date will be decided by the production season and oder quantity .
Company profile

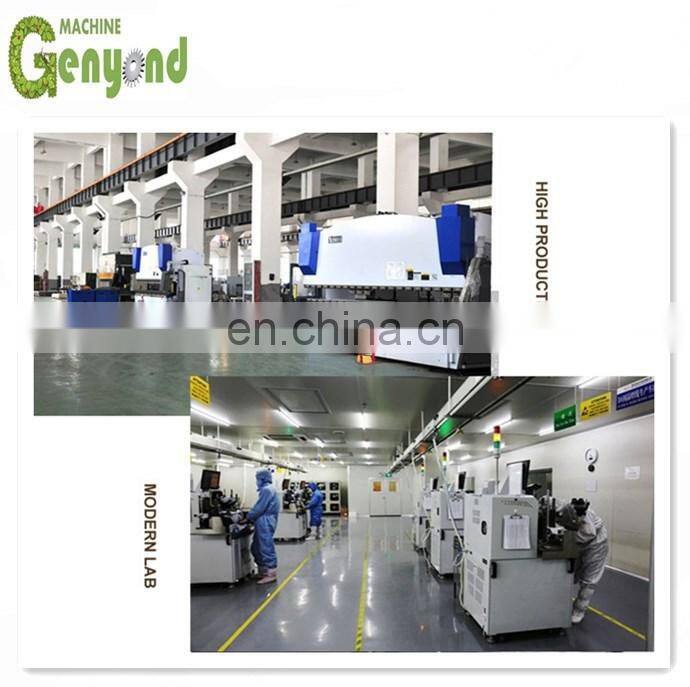

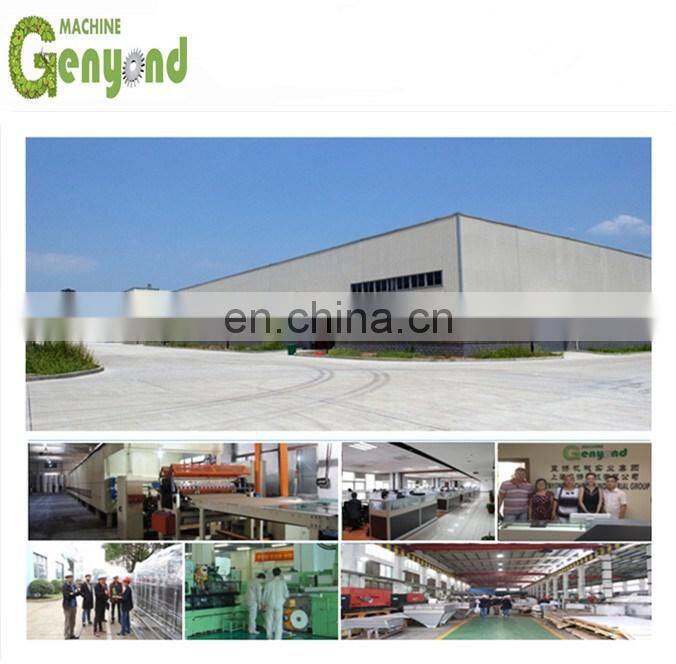

Shanghai Genyond technology Co., Ltd. is belonging to GENYOND MACHINERY INDUSTRIAL GROUP. We are a group company which has six factories in China. We specialize in the production of food machine, medicine machine and packing machine. We have been focused on the design and production of food machine for more than 20 years. Our products have been exported to more than 100 countries. Our advantage is to offer you the turnkey project, and our rich experience can help you a lot at food production.
