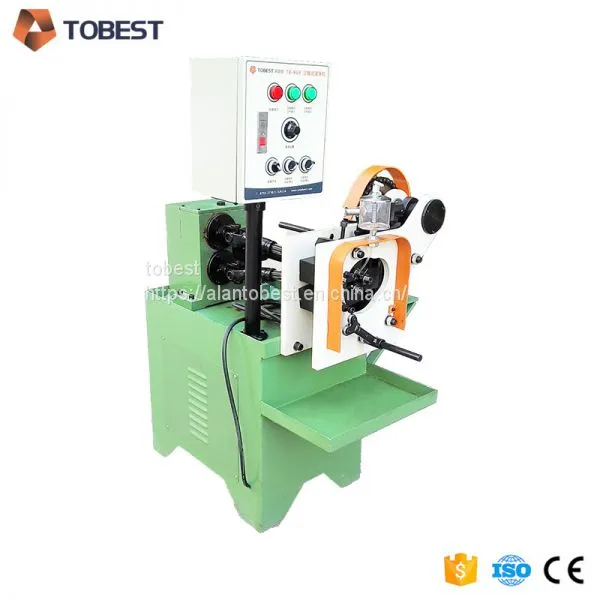

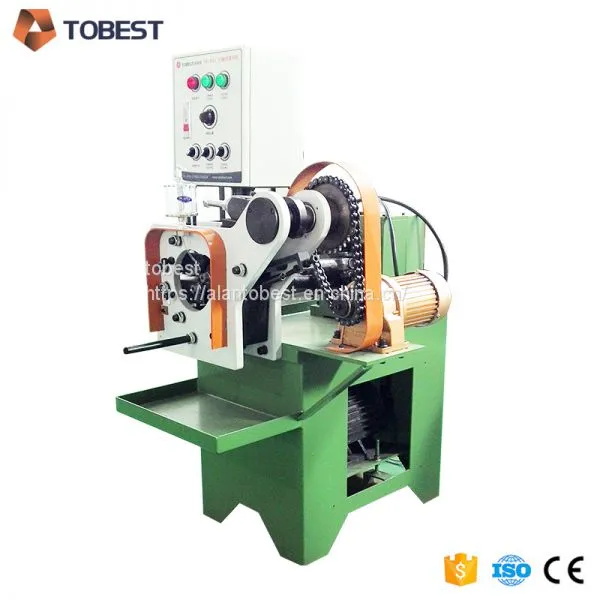

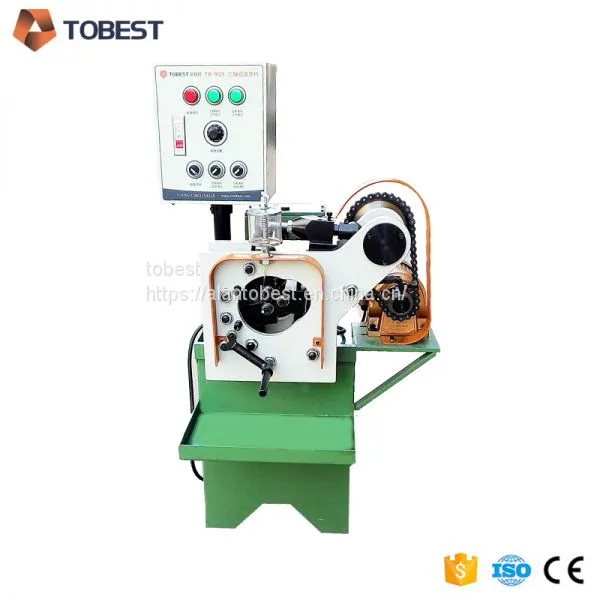

Nut Bolt Making Cnc Machine Screw Thread Making Machine TB-9GY
US$ 2750 - 3750
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Tobest
Place of Origin:
China
Model Number:
TB-9GY
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
35 days
Related Products
-
Screw Thread Maker Thread Rolling Machines Tobest TB-3T for M2-10NegotiableMOQ: 1 Piece -
Pipe Riveting Machine Automatic Small Bolt Making Machine TB-3SUS$ 6588 - 7588MOQ: 1 Set
-
Heavy Duty Thread Rolling Machine High Speed Rolling Machine TB-3TAUS$ 2360 - 3360MOQ: 1 Set
-
External Thread Making Machines Small Thread Rolling Machine TB-3TGTUS$ 3750 - 4750MOQ: 1 Set
-
Less Power Consumption Continuous Nut Roasting Machine Nut Bolt Making MachineNegotiableMOQ: 0
Brand Name
Tobest
Place of Origin
China
Model Number
TB-9GY
After-sales Service Provided
No overseas service provided
Warranty
1 year, 12 months
Weight
245KG
Dimension(L*W*H)
840*690*1190mm
Production Capacity
5-30 pcs/min
Voltage
3-380V 50HZ
Certification
ISO 9001-2008, CE, ISO 9001-2008, CE
Application
connectors, bicycles, auto parts
Condition
New
Power(W)
1470W
nut bolt making cnc machine screw thread making machine TB-9GY
Features:
1.Designed specially for tube-type parts, supported by equal triangles base so that the roundness of part can be guaranteed during rolling.
2.Adopt cam-type tool forward together with stepless speed-variation, the rolling time can be controlled to assure that the product quality can be reach the specified standard.
3.Adopt imported candan joint to guarantee stable driving, the speed variation is controlled by gear box so this machine is suitable for different thread.
4.ISO 9001-2008, CE
Technical parameter of Tobest TB-9GY
| Work piece diameter | φ6-φ9/mm | ||||||
| Range of pitch rolled | 0.75-1.25P | ||||||
| length of thread rolled | 15mm | ||||||
| Outside diameter of rolling die | φ29-40mm | ||||||
| Inside diameter of rolling die | φ20mm | ||||||
| Thickness of rolling die | 15mm | ||||||
| Main power motor | 2HP(1470W) | ||||||
| Cam motor | 100W | ||||||
| Weight(reference) | 245KG | ||||||
| Shipping measurement(L*W*H) | 940*790*1290mm | ||||||
| Dimension(L*W*H) | 840*690*1190mm | ||||||
| Bearing brand | NSK,UBC |
