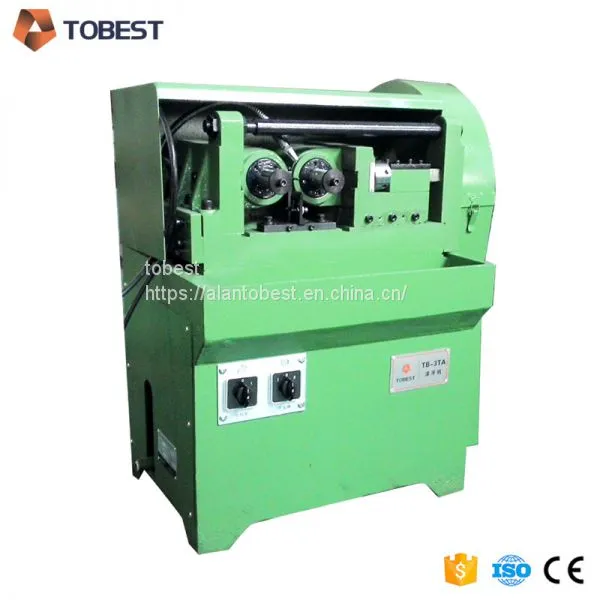

Heavy Duty Thread Rolling Machine High Speed Rolling Machine TB-3TA

Name: Heavy Duty Thread Rolling Machine High Speed Rolling Machine TB-3TA
Brand: Tobest
SKU: 158627640

US$ 2360 - 3360 MOQ: 1 Set

Key Specifications

Brand Name:

Tobest

Place of Origin:

China

Model Number:

TB-3TA

Tobest

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

35 days

Brand Name Tobest

Place of Origin China

Model Number TB-3TA

After-sales Service Provided No overseas service provided

Warranty 1 year

Weight 310(KG)

Dimension(L*W*H) 680*600*750mm

Production Capacity 4-25 pcs/min

Voltage 3-380V 50HZ

Certification ISO 9001-2008, CE

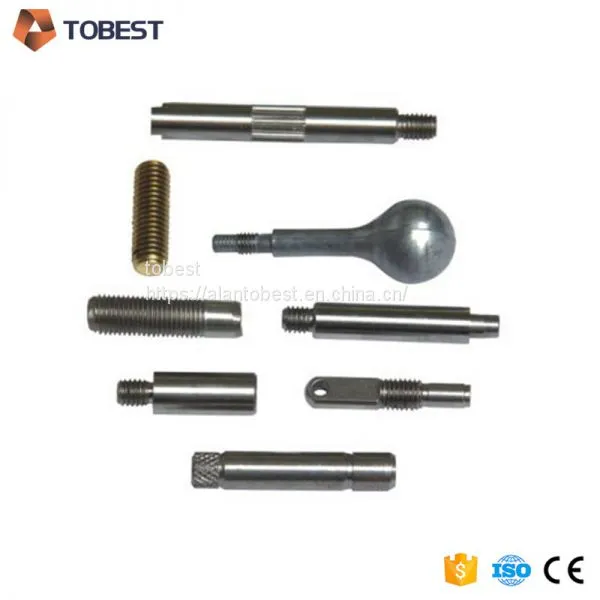

Application bars,solid pipe,solid tube

Condition New

Power(W) 1470W

heavy duty thread rolling machine high speed rolling machine TB-3TA

Features:

1.All the advantages from Model TB-3T available.

2.Integrate casting for the machine base, better rigidity and beautiful appearance.

3.Higher power and wider application scope compared with model TB-3T.

4.Equiped with thread governor to make the regulation easier.

5.High precision and stability, with reasonable price.

Technical Parameter of Tobest TB-3TA

Work piece diameter				φ2-φ12/mm
Range of pitch rolled				0.4-1.75P
Max.length of thread rolled				30mm
Spindle speed				27rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Center distance between die spindles				90-130mm
Main power motor				2HP(1470W)
Distance from lathe bed to rolling die				85mm
Supply voltage				380V
