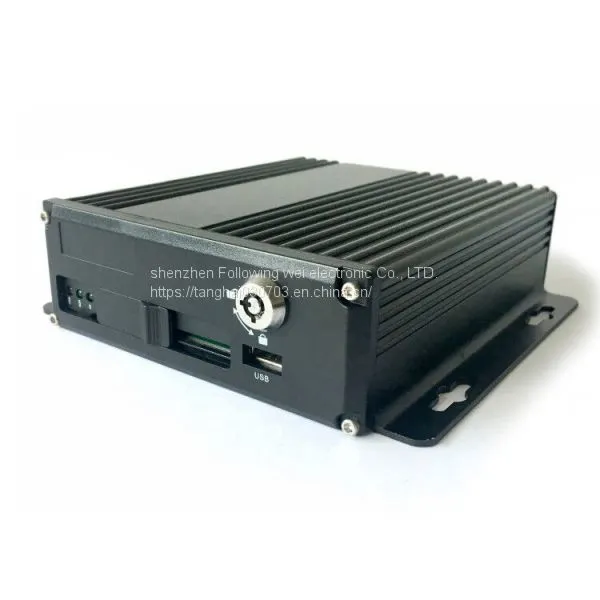

Help Center4CH SD Card 720P AHD MDVR for Bus/car/truck/motorcycle/mobile/vehicle/boat
Related Products
-
3g/4g Mdvr1080p/720pAn On-boardRemote Gps The RemoteUS$ 35 - 155MOQ: 1 Piece -
Mdvr Gps Ahd720p/1080p The Remote The Coach Car Bus Special LogisticsUS$ 65 - 155MOQ: 1 Piece
-
8ch 1080p HDD and SD Card Storage Vehicle MDVR for Fleet ManagementUS$ 220 - 270MOQ: 1 Piece
-
3G4G Camera Mdvr Car Video Recorder Wireless Real-time Positioning Real-time Surveillance Video 720P/1080PUS$ 15 - 20MOQ: 1 Piece
-
Ahd The Camera Ipc Wireless Real-time Positioning Real-time Surveillance Video 720P/1080PUS$ 17 - 28MOQ: 1 Piece
H.264，4ch real-time 720P AHD HD input or 4CH Analog HD camera input
9V-36V Wide voltage power supply ，Design of ultra-low power consumption
SD storage（Support 1pcs SD,Max:128G）,Can completely resist the car vibration and other cause data corruption.
Support 4ch alarm input，1ch alarm output(optional)
RS232 or RS485 extend (optional)
Support GPS/BD/G-SENSOR Module extend (optional)
3G/4G remote monitor (optional)；
Support Voice broadcast，talk-back and text scheduling distributed function ；Connect Oil flow sensor ,temperature sensor ,POS,LED advertising screen extend (Optional )
OTA equipment auto upgrade function ,maintenance more convenient.
Support Mobile phone monitor (3G,4G model)
High reliability aviation port，High performance ,stable and reliable
Specification
Item |
Specification |
|
Systems |
Linux |
|
Language |
Chinese,English ,other（OEM optional） |
|
Video code |
H.264 |
|
OSD |
Character superposition function, support time information such as date, vehicle ID image superposition |
|
GUI |
Graph OSD |
Connect external display to setup systems parameters by remote controller or mouse |
Video & Record |
Video input |
4 ch 720P AHD HD/Analog ，aviation port, 1.0Vp-p, 75Ω |
Video output |
1 ch output , 1.0Vp-p, 75Ω, support single ch or 4ch quad |
|
Preview |
1ch,4ch,Support the event trigger |
|
Record resolution |
720P、D1、HD1、CIF optional,Max support 4 ch 720P |
|
Record quality |
0-7 grade optional |
|
Record rate |
PAL:100 fps/s，CCIR625line,50 field NTSC:120 fps/s，CCIR525line,60 field CIF:256Kbps - 1.5Mbps，8 grade video quality optional HD1:600Kbps - 2.5Mbps，8 grade video quality optional D1:800Kbps - 3Mbps,8 8 grade video quality optional 720P:800Kbps - 4Mbps,8 grade video quality optional |
|
Record model |
Default auto record ,ignition record ,time record ,alarm record |
|
Audio |
Audio input |
4 ch ,Aviation port |
| Audio output | 1 ch ,aviation port ,output level:1V - 2V |
|
| Compress | G.726 , rate:8KB/s |
|
Alarm input |
4 ch |
|
Alarm output |
1 ch |
|
Communication port |
1 ch RS232 or 1 ch RS485 Optional |
|
Wireless transfer |
Built-in 3G/4G wireless transfer,WCDMA,CDMA2000(Optional) Wifi optional |
|
GPS /Gsensor |
Built-in GPS/BD ,built-in G-sensor，playback vehicle tracking |
|
|
Storage |
Storage |
MAX 1*128G SD card |
| upgrade | Support SD local update |
|
| Video format | H.264 |
|
| File systems | FAT32 |
|
Playback |
Video search |
Through record time ,record model ,record event to search |
| Playback | Max 4ch playback ,pause ,fast reverse ,fast forward |
|
| Support 2,4,8,16X fast forward/fast reverse | ||
Security management |
User password ,admin password management ,support screen lock |
|
Serial port expand |
Support connect advertising display ,oil capacity control sensor and other external equipment |
|
|
Power& power consumption
|
Power management |
Adaptive wide power input, with overload, under voltage, short circuit, reverse connect protection function; |
| Voltage input | DC:+10V - +36V |
|
| Voltage output | +12V@1.5A，+5V@1.5A |
|
| Power-off protection | UPS,Accident can be automatically save record video data, ensure the file is not damaged |
|
| Power consumption | Working statue ＜14W， standby statue ＜0.5W |
|
|
Working |
Temperature |
-20℃ - +70℃ |
| Humidity | 20% - 80% |
|
SD mobile dvr |
Size |
147mm(L)*137mm(W)*37m(H) |
Weight |
1KG |
|
