Attention:
As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.
And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.
1710-2690MHz Multi-Band Remote Electrical Downtilt(RET) Panel smart Antenna wi-fi antenna outdoor 4g 3g antenna
AMET-1727X6515-DE10
Application:
WCDMA/DCS/PCS/PHS/3G/4G LTE system
Wireless communication and datatransmission system
+45 | -45 | +45 | -45 | +45 | -45 |
1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 |
AMET-1727X6515-DE10 Electrical Specifications | |||
Frequency range(MHz) | 1710-2690 | 1710-2690 | 1710-2690 |
Polarization | ±45º | ±45º | ±45º |
Gain(dBi) | 14.5 | 14.5 | 14.5 |
half-power beam width(°) | Hor:65 Vor:14 | Hor:65 Vor: 14 | Hor:65 Vor:14 |
Electrical downtilt(°) | 0~10 | 0~10 | 0~10 |
Front-to-back ratio(dB) | ≥25 | ||
Input Impedance(Ω) | 50 | ||
VSWR | ≤1.5 | ||
Intermodulation IM3(dBm) | ≤ -107 | ||
Isolation between ports | ≥28dB | ||
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º | ||
Sidelobe suppression for first sidelobe above horizon | ≥16 dB | ||
Maximum input power(W) | 350 | ||
Lightning protection | DC Ground | ||
Mechanical Specifications | |||

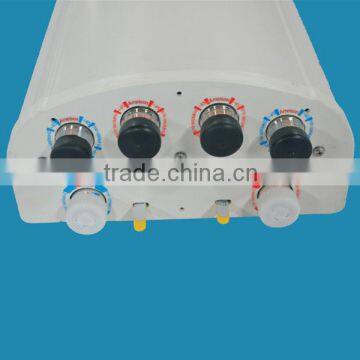

Input connector type | 6×7/16DIN female | ||
Connector position | Bottom | ||
Dimensions-mm (mm) | 700×455×120 | ||
Packing size(mm) | 1050×500×200 | ||
Antenna weight (Kg) | 10.5 | ||
Packing weight (Kg) | 14.5 | ||
Radome material | FRP | ||
Mechanical tilt(°) | 0~10 | ||
Operating temperature(°c) | -40~+60 | ||
Rated Wind Velocity(m/s) | 60 | ||
Mounting hardware(mm) | 50~115 | ||
