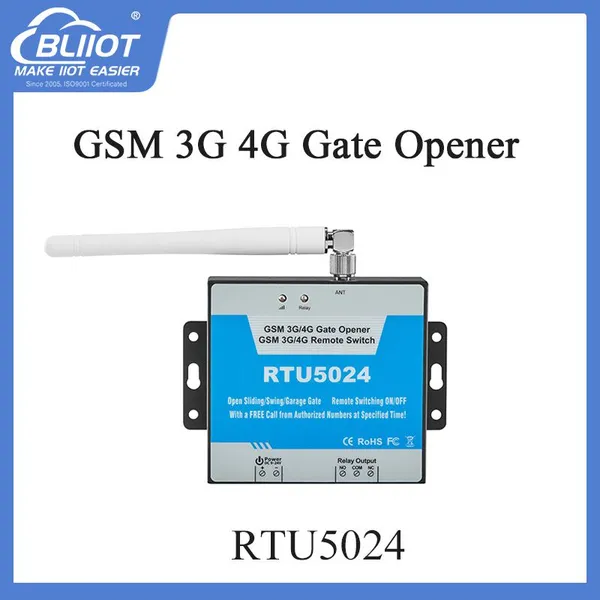

Help CenterSecurity Protection System RTU5024 GSM 3G 4G Remote Relay Controller
Related Products
-
RTU5024 GSM 3G 4G Wireless Relay Remote Door Opener for Parking SystemUS$ 13 - 18MOQ: 1 Piece -
RTU5025 3G/GPRS/GSM Remote Access Relay ControllerUS$ 38 - 86MOQ: 1 Piece
-
RTU5025 Secure GSM/3G/4G Remote Door Automation Controller for Home and Garage OwnersUS$ 38 - 86MOQ: 1 Piece
-
SMS/GSM/GPRS/3G/4G Temperature and Humidity SMS Monitoring Alarm RTU5023US$ 97 - 114MOQ: 1 Piece
-
Analog Quantity/Supply Voltage/Power Failure Monitoring Alarm for Environmental MonitoringUS$ 97 - 114MOQ: 1 Piece
Features:
Advantages
Ø Quad-band, can work in the worldwide GSM Networks;
Ø No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';
Ø Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
Ø Secure - Using caller-ID for identification, unknown callers are ignored;
Ø Can be operated from anywhere, no distance limit;
Ø Add or remove users by SMS Text command;
Ø No need to provide a remote control or keys for different users;
Ø Up to 200 authorized phone numbers can be configured at the specified time;
Ø One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
Ø The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user;
Ø The relay close or open time is programmable;
Ø Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
Ø Smart phone APP for configuration available.
search GSM Gate Opener RTU5024 on Google play for downloading APP.
Setting
Ø APP or SMS command;
Ø Operate from anywhere anytime, no distance limitation;
Specifications
GSM Frequency |
Quad-band 850/900/1800/1900MHz |
Digital Output |
NC/NO dry contact, 3A/240VAC |
DC Power supply |
9~24VDC/2A |
Power consumption |
12V input Max. 50mA/Average 25mA |
SIM Card |
Support 3V SIM Card |
Antenna |
50Ω SMA Antenna interface |
Temperature range |
-20~+60 °C |
Humidity range |
Relative humidity 90% |
Exterior dimension |
W102mm*D76mm*H27mm |
Net Weight |
180 g |
Standard Packing List
ü Gate Opener * 1
ü Antenna * 1
ü User Manual *1
ü Packing size: 17*9.5*4 cm
ü Gross Weight: 0.32kg
Applications:
Ø Remote open/close swing/sliding gates, doors, shutters, garage doors, locks with a free call!
Ø Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.
Ø Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
Ø Agriculture: Remote control pumps, etc.
Ø Business: Remote control electronic boxes, bright billboards, LED signs, etc.
