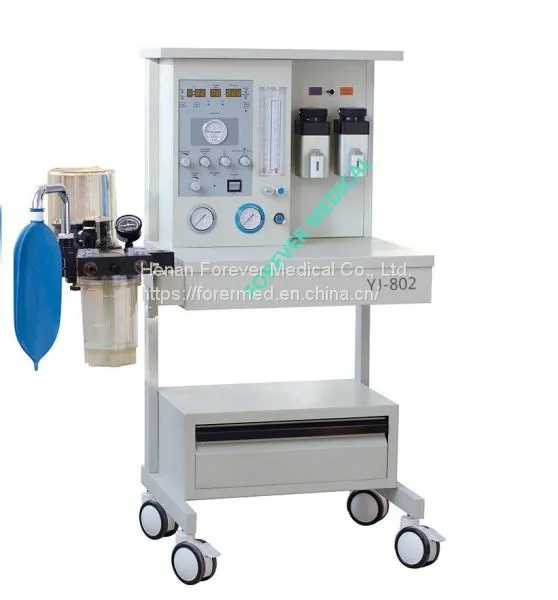

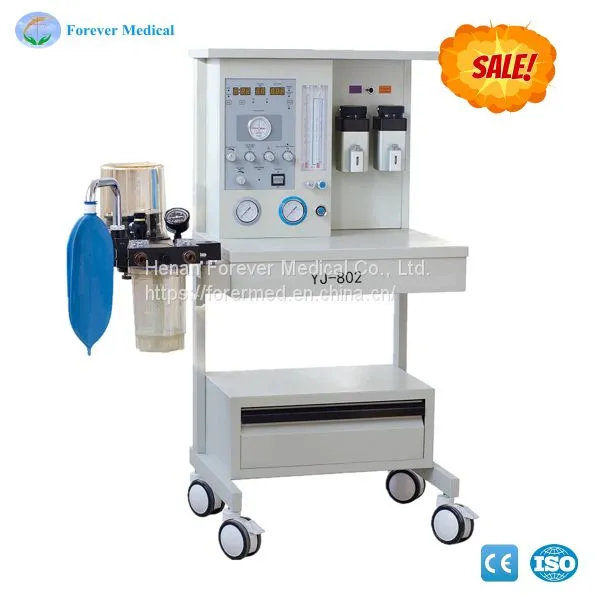

YJ-802 with 2 vaporizer Multifunctional Anesthesia machine
1.CE, ISO 13485 and Rohs certificates
2.Pneumatically driven and electrically controlled system
3.Built-in ventilator, LED display screen
4.Closed; Semi-Closed; Semi-Open wotking mode
5.Applied for Adult and Pediatric
Main technical specifications:
| Gas requirement |
Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa. 4-tubes Flowmeters, O 2 & N 2 O; 0.1L/Min ~ 10L/Min; |
| Oxygen Flush | 25~75 L / Min |
| Respiration Mode | A/C,IPPV,SIPPV,IMV,SIMV,MANUAL |
| Tidal Volume | 0~1500ml |
| I/E Ratio | 4:1 ~ 1:10 |
| One vaporizer | Enflurane/ Isoflurane/Sevoflurane/Halothane |
| Vaporizer Setting Range | 0.5%~5% |
| Respiration Frequency | 1~99 bpm |
| Ptr | -1.0kPa ~ 1.0 kPa |
| CO 2 absorber capacity | 1 kg |
| Optional | Patient monitor |
| Alarm parameters | upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea, AC power malfunction,Battery low power |
Features
1.Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2.Anesthesia Ventilator: Built-in ventilator, LED display screen
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Equipped with electronic pressure differential flow sensor, imported respiratory control valve
3.Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
4.Multi-parameter Patient Monitor: Optional
High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
5.Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
6.Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Specifications
| Model | YJ-802 |
| Display | LED display |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | A/C,IPPV,SIPPV,MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-2000ml | |
| Respiratory Rate | 4-40bpm |
| Inspiratory/Expiratory (I:E) Ratio | 1:1.5 ~ 1:3.0 |
| Inspiratory Pressure Trigger Range | -10-10cmH2O (electronically controlled) |
| Vaporizer Concentration Ranges | 0-5% |
