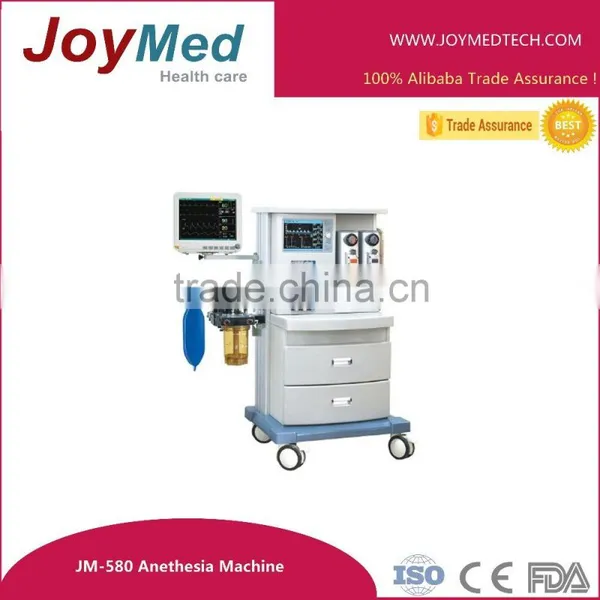

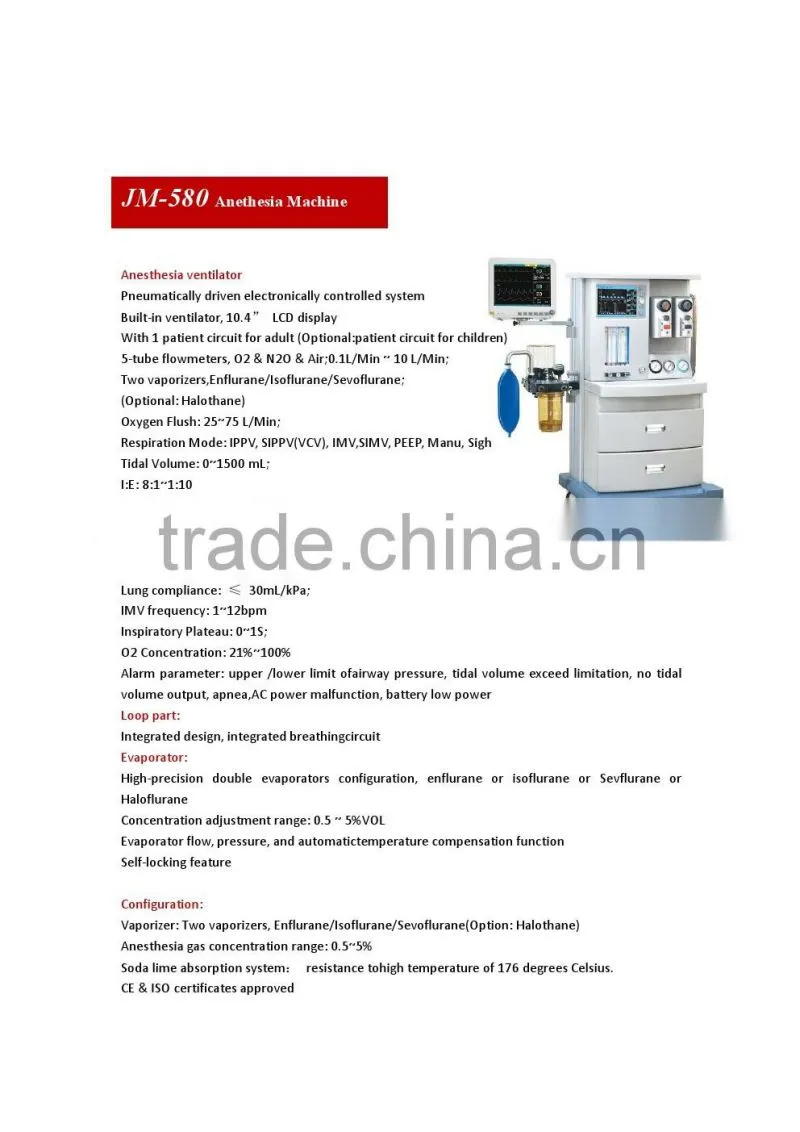

JM-580 Anethesia Machine

anesthesia machine, Anethesia machine with oxygen regulator, Anesthesia machines

Anesthesia ventilator

Pneumatically driven electronically controlled system

Built-in ventilator, 10.4” LCD display

With 1 patient circuit for adult (Optional:patient circuit for children)

5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;

Two vaporizers,Enflurane/Isoflurane/Sevoflurane;

(Optional: Halothane)

Oxygen Flush: 25~75 L/Min;

Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh

Tidal Volume: 0~1500 mL;

I:E: 8:1~1:10

Respiration Frequency: 1~99bpm;

PEEP: 1~10 hPa;

Ptr: -10~10 hPa;

CO2 absorber capacity: 1 kg

Lung compliance: ≤ 30mL/kPa;

IMV frequency: 1~12bpm

Inspiratory Plateau: 0~1S;

O2 Concentration: 21%~100%

Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

Loop part:

Integrated design, integrated breathingcircuit

Evaporator:

High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane

Concentration adjustment range: 0.5 ~ 5%VOL

Evaporator flow, pressure, and automatictemperature compensation function

Self-locking feature

Configuration:

Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

Anesthesia gas concentration range: 0.5~5%

Soda lime absorption system: resistance tohigh temperature of 176 degrees Celsius.

CE & ISO certificates approved
