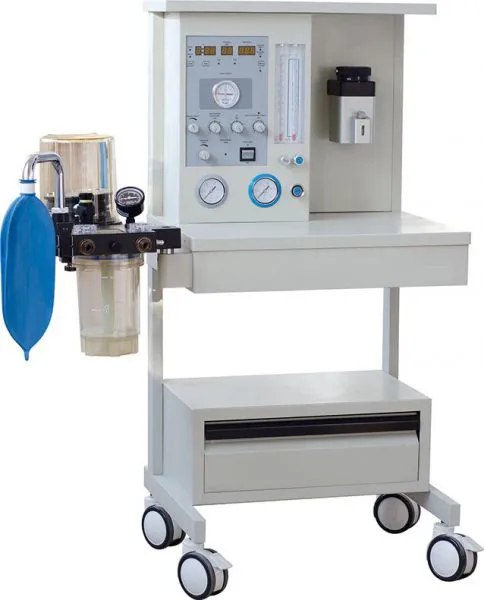

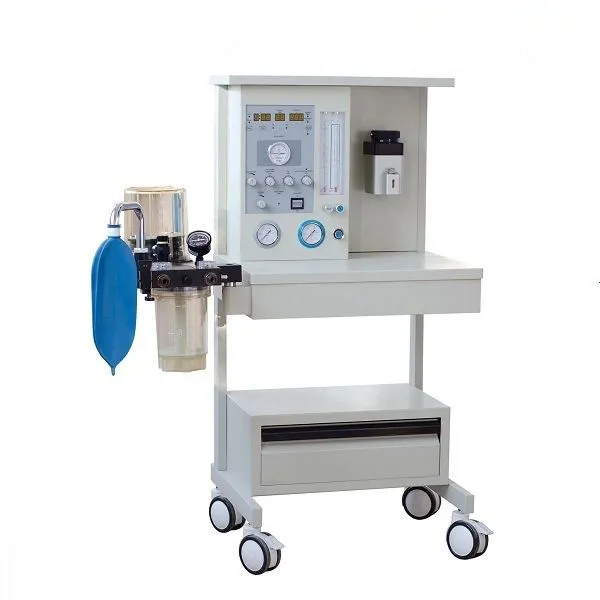

YJ-801 with 1 vaporizer Multifunctional Anesthesia machine
CE, ISO 13485 and Rohs certificates
Pneumatically driven and electrically controlled system
Built-in ventilator, LED display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
2-tubes Flowmeters, O 2 & N 2 O; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 1:1.5 ~ 1:3.0
One vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 4~40 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO 2 absorber capacity : 1 kg
Optional: Patient monitor
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,
AC power malfunction,Battery low power
Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in ventilator, LED display screen
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Equipped with electronic pressure differential flow sensor, imported respiratory control valve
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Multi-parameter Patient Monitor: Optional
High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Specifications
| Model | YJ-801 |
| Display | LED display |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | A/C,IPPV,SIPPV,MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-2000ml | |
| Respiratory Rate | 4-40bpm |
| Inspiratory/Expiratory (I:E) Ratio | 1:1.5 ~ 1:3.0 |
| Inspiratory Pressure Trigger Range | -10-10cmH2O (electronically controlled) |
| Vaporizer Concentration Ranges | 0-5% |
| Vaporizer Slots | Single YJ-801 type slot |
