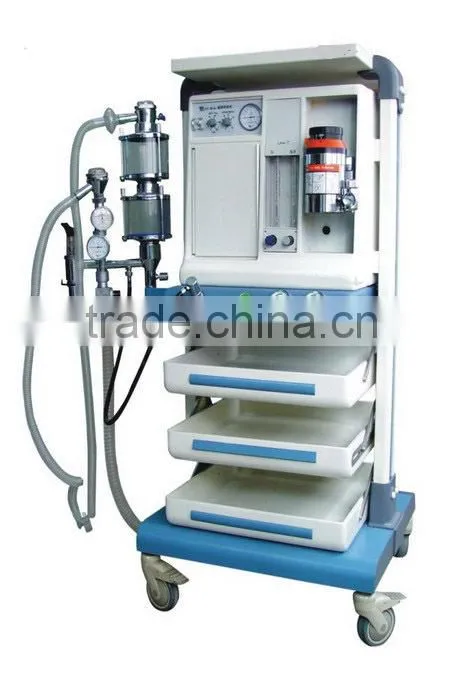

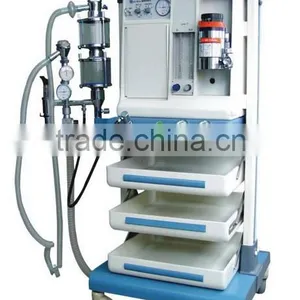

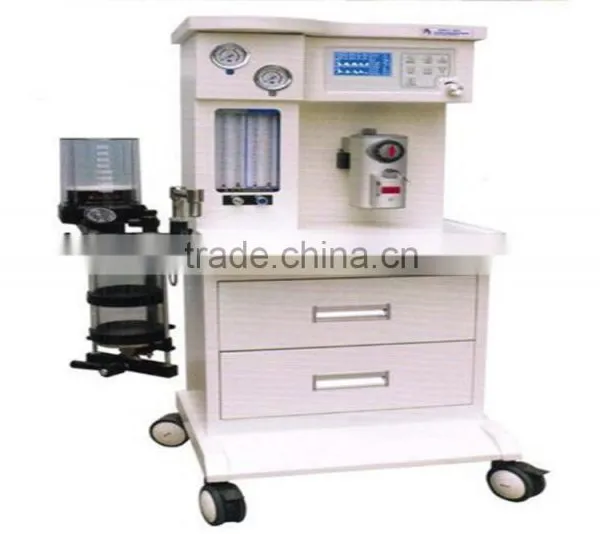

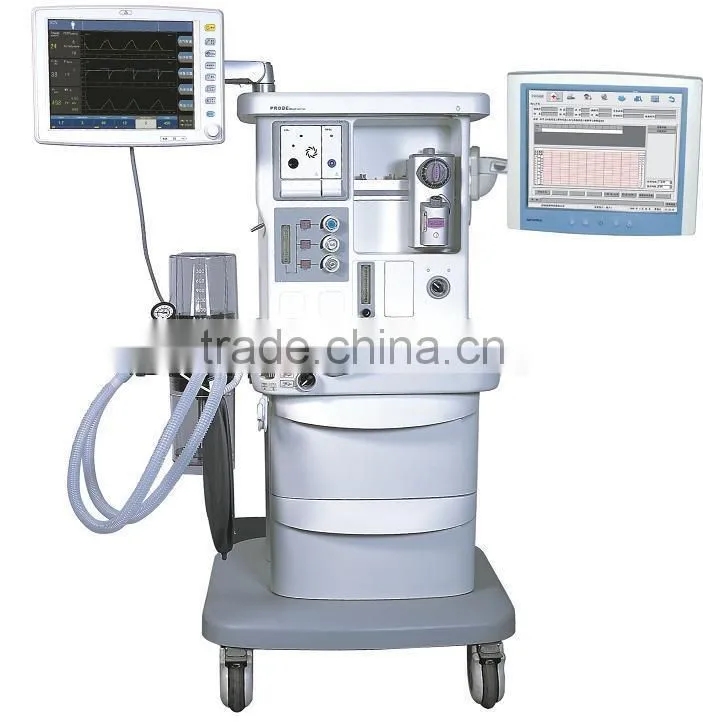

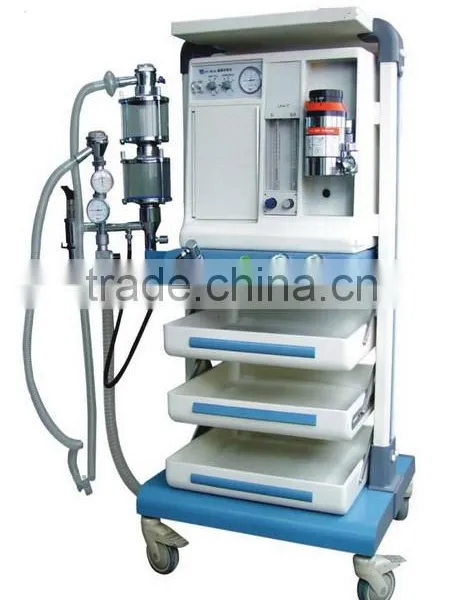

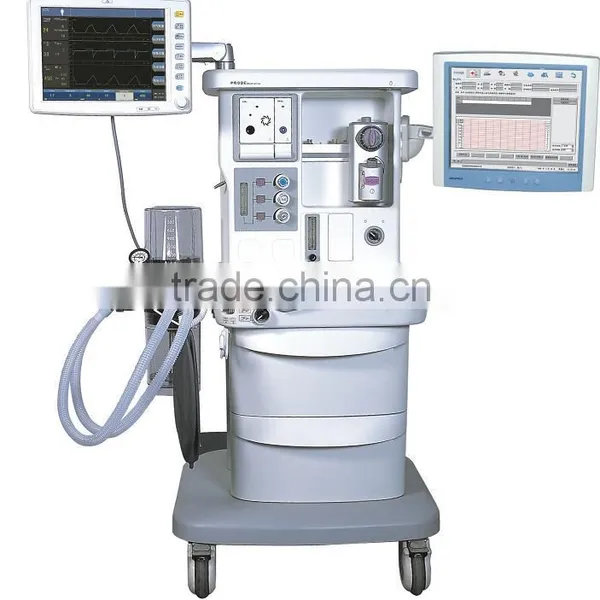

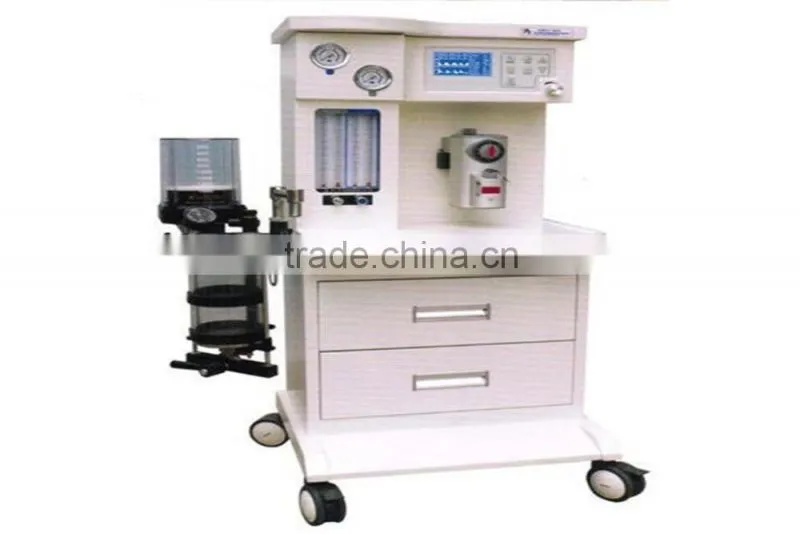

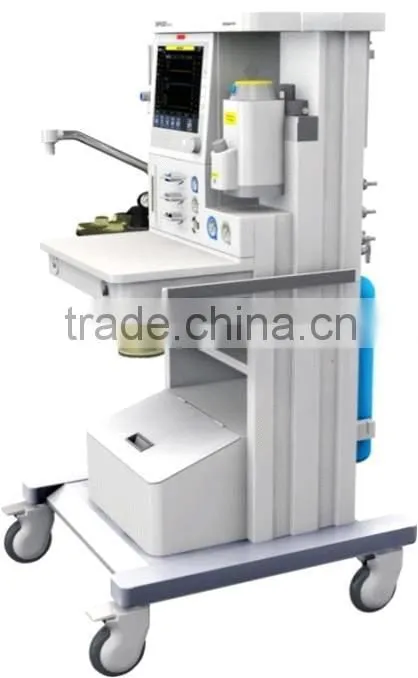

Anesthesia machine with ventilator/High quality equipment
Features:
* The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for
pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
* Reliable pneumatic transmission system.
* Economic and proper configuration of technologies, optional as required by the Customer.
* Modularized design and upgrading. Upgrading is available as required by the Customer.
Specifications:
Main body |
High-strength engineering plastic rack, light,beautiful and corrosion resistant |
Scope of application |
adult, child |
Gas source |
O2, N2O: 0.27~0.55MPa |
Flow meter |
O2: 0.1~1.0L/min 1.1~10L/min |
Flow rate of rapid oxygen supply |
25~75L/min |
Low oxygen pressure alarm |
There will be sound alarm when the oxygen pressure < 0.2MPa |
Vaporizer |
It has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. |
Respiratory circuit |
Working mode: all-close, semi-close, semi-open releasing pressure: 0.5~7 kPa |
Respiratory bellows |
bellows for adults, bellows for children tidal volume range:0~1500 ml |
Part of Ventilator:
Display mode |
High-definition 4.8” LCD screen display |
|
Ventilation mode |
IPPV, MANUAL (Manual monitoring of tidal volume, Ventilation volume, respiratory rate) |
|
Ventilation parameters |
Tidal volume 50~1500ml Rate 4~80 bpm I:E 2:1~1:4 Pressure range 1.0~6.0 kPa |
|
Parameters for ventilation monitoring |
tidal volume, ventilation volume, IPPV rate, I/E,peak pressure of airway, inspiratory trigger pressure, pressure-time waveform |
|
|
Security Alarm System
|
Airway pressure alarm |
upper limit setting range 1.0~6.0 kPa low limit setting range 0.4~2.0 kPa |
TV alarm |
upper limit setting range 0.5~2.0L low limit setting range 0.02~1.0L |
|
Sustained high-pressure alarm |
It will give alarm when stress have consistently been higher than 2.5 kPa |
|
|
Suffocation alarm
|
It will give sound and light alarm if there is no tidal volume input in 15s |
|
Power alarm |
|
|
|
Power |
AC 110-220V±10% 50Hz±1Hz |
