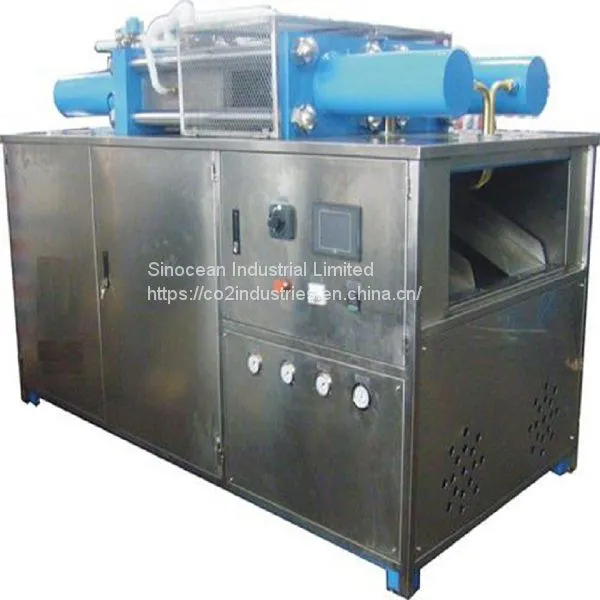

Dry ice block machine JHK600
SINOCEAN TECHNOLOGY POWER
Description
Our standard dry ice machine JHK600 is producing a block with a dimension of 250 x 140 x 90 mm which is normally used for food transportation. It is also possible to produce other thicknesses up to 200 mm by manual adjustment of the snow injection time. Other block ice dimensions are available on request.
Unique Features
PLC Omron - controls the complete process, injection and hydraulic
Independent performance - very constant production, independent of pressure and temperature
Integrated production control system- definition and supervision of production quantity
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
Minimum floor space for high production performance
Specifications
Dry ice size : 250*140*(50-210)mm
Production capacity: 600-1000kg/h
Dry ice density: 1.30 to 1.50 t/m³
Raw materials: liquid co2 in storage tank, water content is less than 55ppm
Conversion rate: 40%-43.5%
Motor Power : 27kw
Oil Tank : 400L
Power supply : 380v/50Hz, 3p
Liquid co2 inlet pressure: ≤2.1MPA
Liquid co2 inlet pipe: 2*Ф20
Co2 gas discharge pipe: 2*Ф70
Overall dimension: 2700*1500*1800mm
Weight : 4500kg
