Description

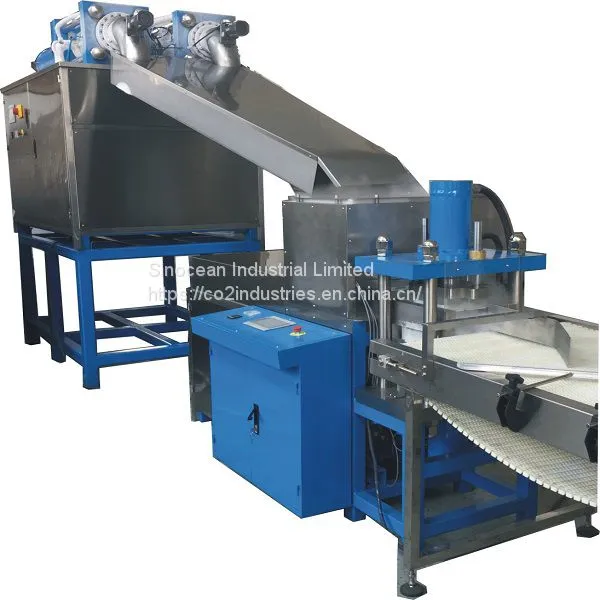

Our standard dry ice production line JHK500 includes one unit dry ice pelletizer machine JH500 and one unit dry ice reformer machine JHR1800. JH500 produces 500kg/hour high density dry ice pellets which are then flow into hopper of dry ice reformer machine and makes dry ice slices with fixed dimension: 125*105*25mm or 95*95*20mm.
The dry ice slices are normally used for food transportation. In China, they are used frequently online fresh store business. It is also possible to produce other thicknesses up to 60 mm. Other block ice dimensions are available on request.
This production line is most suitably for dry ice manufacturing plant which needs high density dry ice slices in higher production efficiency.
Unique Features
PLC Omron - controls the complete process, injection, hydraulic and press
Independent performance - very constant production, independent of pressure and temperature
Integrated production control system- definition and supervision of production quantity
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
Minimum floor space for high production performance
Specifications
Dry ice size :
Dry ice pellets: 3-19mm
Dry ice slices: 4-95×95×（10-60）mm or 2-125×105×（10-60）mm
Production capacity: 400-540kg/h
Dry ice density: ≥1.50t/m³
Raw materials: liquid co2 in storage tank, water content is less than 55ppm
Conversion rate: ≧42%
Motor Power : 26kw
Oil Tank : 410L
Power supply : 380v/50Hz, 3p
Liquid co2 inlet pressure: ≤2.1MPA
Liquid co2 inlet diameter: Ф20
Co2 gas discharge pipe: 2*Ф70
Overall dimension: 4900*1400*2750mm
Weight : 3500kg
