Dry Ice Reformer JHR4000
SINOCEAN TECHNOLOGY POWER
Description

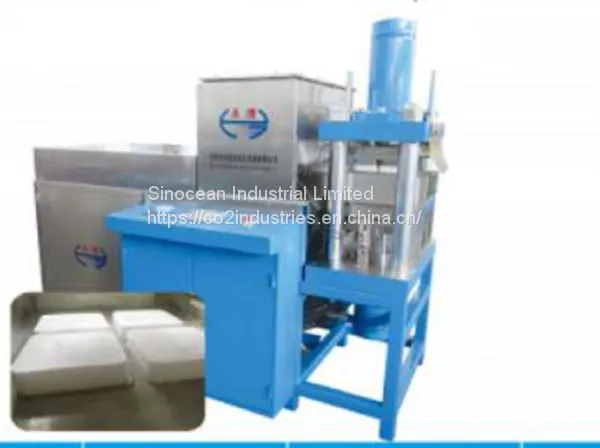

Our standard dry ice reformer machine JHR4000 is designed to optimise the production of dense dry ice blocks in various sizes by compressing dry ice pellets. Be it in combination with an exisiting or with a new dry ice pelletizer, JHR4000 will be a very convenient tool to complement the dry ice pellet business with dry ice blocks.
Unique Features
PLC Omron - controls the complete process, injection and hydraulic
Independent performance - very constant production, independent of pressure and temperature
Integrated production control system- definition and supervision of production quantity
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
Minimum floor space for high production performance
Specifications
Dry ice size and Production capacity :
9-95×95×（10-60）mm, productopm capacity: 900kg/hr to 1200kg/hr
4-125×105×（10-60）mm, production capacity: 800kg/hr to 1100kg/hr
Dry ice density: ≧1.50t/m³
Raw materials: Φ3*(1-10)mm
Conversion rate: ≧98%
Motor Power : 11kw
Oil Tank : 180L
Power supply : 380v/50Hz, 3p
Exhaust pipe diameter: Φ70
Overall dimension: 2200*1300*1850mm
Weight : 1900kg
