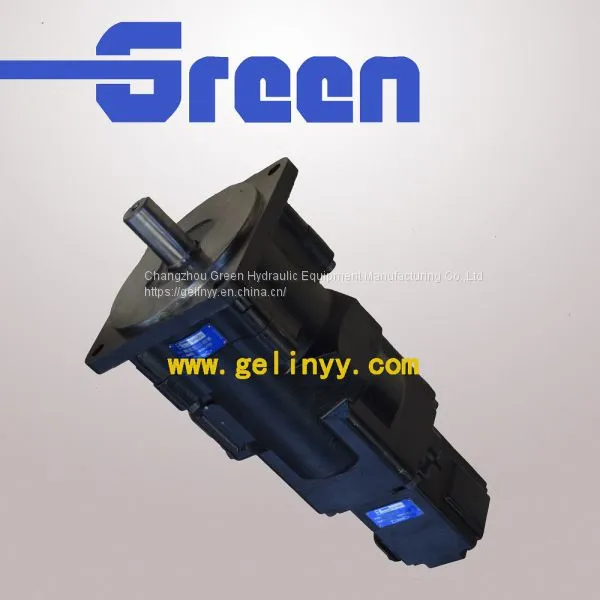

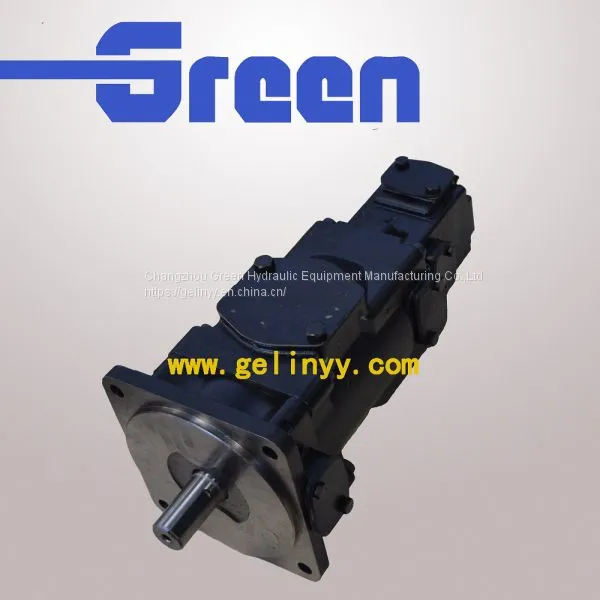

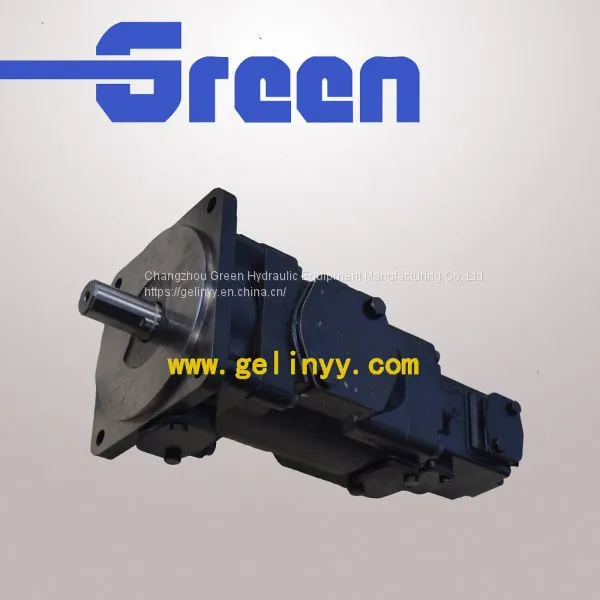

denison T6EE-052-052-2L03-B12-MO+T6C-025-1L03 series hydraulic vane pump pecial pump for crane

FOB Price

USD $500 - $1890 / Set

1 Set(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Shanghai and other main ports of China
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:4 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Green	Place of Origin:	China	Model Number:	T6EE-052-052-2L03-B12-MO+T6C-025-1L03
Application:	Other, rotary	Fuel:	Diesel	Power:	Hydraulic
Usage:	Oil	Theory:	Axial Flow Pump	Standard or Nonstandard:	Standard
Structure:	Other, vane pump	Pressure:	High Pressure

Product Description

T6 Series-pin Vane Pumps

T6C, T6D, T6E, T6DC, T6EC, T6ED , as high pressure and high performance dowel pin type vane pumps are widely used in Heavy equipments, Mining machinery, Rubber & Plastic machinery, Shoes machinery, Die Casting Machinery, Metallurgical machinery, Metal Cutting Machinery and other types of hydraulic systems.

Features

1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.

2.This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and work at high temperature.

3.As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide sped scope.

4. Same connecting dimension, and better performance than original ones.

5. All parts can be replacement with the original ones including cartridge kits, Shafts, Seals, Bearings and other parts.

T6CC	-025	-017	-1	R	02	-C	1	10
Series	Flow-shaft end pump	Flow-cover end pump	Shaft type	Rotation	Port position	Design number	Sealing Level	Port dimensions
T7BB T7BBS	02,03,04,05,06, 07,08,10,12,15	02,03,04,05,06, 07,08,10,12,15	See size of shaft	(Viewes form shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise	See picture below	C	NBR Nitrile rubber Fluororubber	See installation dimensions
T67CB	03,05,06,08,10, 12,14,17,20, 22,25,28,31	02,03,04,05,06, 07,08,10,12,15
T6CC	03,05,06,08,10, 12,14,17,20, 22,25,28,31	03,05,06,08,10, 12,14,17,20,22, 25,28,31						See installation dimensions
T67DB	14,17,20,24, 28,31,35,38, 42,45,50	02,03,04,05,06, 07,08,10,12,15
T6DC	14,17,20,24, 28,31,35,38, 42,45,50	03,05,06,08,10, 12,14,17,20, 22,25,28,31
T67EB	42,45,50,52,57, 62,66,72,85	02,03,04,05,06, 07,08,10,12,15
T6EC	42,45,50,52,57, 62,66,72,85	03,05,06,08,10, 12,14,17,20, 22,25,28,31
T6ED	42,45,50,52,57, 62,66,72,85	14,17,20,24,28,31, 35,38,42,45,50

Series	Flow code (Usgpm)	Geometric displace-ment ml/r	ure Mpa						Max.speed r/min		Min speed r/min
			Antiwear hydraulic oil		General hydraulic oil or phosphate		Water glycol fluid or water-or antiwear hydraulic oil		General hydraulic oil or antiwear hydraulic oil	Water glycol fluid or phoshphare eater fluid or water- oil emulsions
			Instant	Continuous	Instant	Continuous	Instant	Continuous

T6C	03	10.8	28	24.5	21	17.5	17.5	14	2800	1800	600
	05	17.2
	06	21.3
	08	26.4
	10	34.1
	12	37.1
	14	46
	17	58.3
	20	63.8
	22	70.3
	25	79.3							2500
	28	88.8	21	16		16
	31	100
T6D	14	47.6	24.5	21	21	17.5	17.5	14	2500	1800	600
	17	58.2
	20	66
	24	79.5
	28	89.7
	31	98.3
	35	111
	38	120.3
	42	136							2200
	45	145
	50	158	21	16		16
T6E	42	132.3	24.5	21	21	17.5	17.5	14	2200	1800	600
	45	142.4
	50	158.5
	52	164.8
	57	179.8
	62	196.7
	66	231.3
	72	227.1
	85	269	9	7.5	7.5	7.5	7.5	7.5	2000
