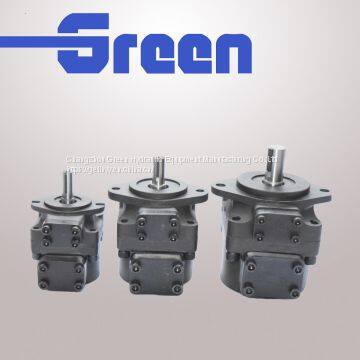

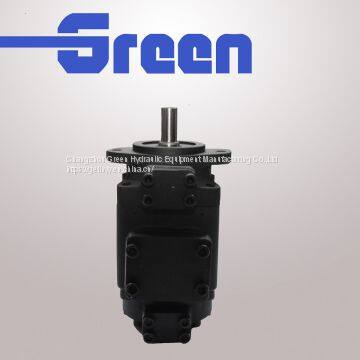

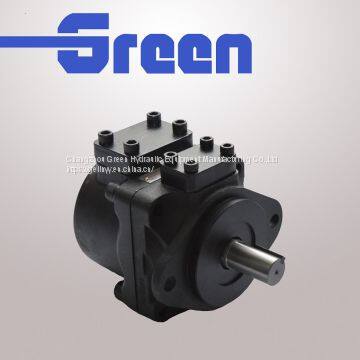

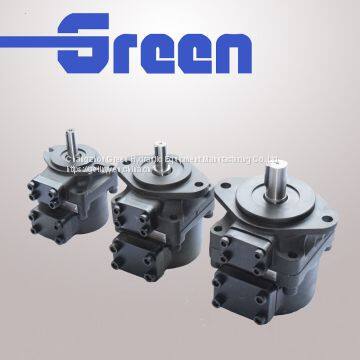

Help CenterATOS PFE Series Hydraulic Single Vane Pump Fuel Pump
Related Products
-
Atos PFE-32 PFE-42 PFE-43 PFE-53 PFE-54 Double Hydraulic Vane PumpUS$ 100 - 500MOQ: 1 Set -
ATOS PFED Hydraulic Double Oil Pump for Hydraulic SystemUS$ 100 - 500MOQ: 1 Set
-
Yuken PV2R Series Hydraulic Vane PumpUS$ 300 - 600MOQ: 1 Set
-
Yuken PV2R1 Hydraulic Rotary Vane Vacuum Pump ElectricUS$ 300 - 600MOQ: 1 Set
-
Rexroth A2fm28 A2fm32 A2fm45 A2fm56 A2fm80 A2fm90 Hydraulic Piston PumpUS$ 100 - 500MOQ: 1 Set
ATOS
1. ATOS PFE vane pump are fixed displacement-twelve-vane pump,
2. 2 and 3 cartridge design with integral hydraulic balancing 4 for high pressure operation and long service life with low noise level.
3. Suitable for hydraulic oils according to DIN 51524 OR synthetic fluids have similar lubricating characteristics.
4. These pumps are available as single, multiple or with through-shaft configuration.
5. Mounting according to SAE J744 standard.
6. Easy installation as inlet and outlet ports can be assembled in any of four relative positions.
7. Easy maintains as the pumping cartridge can be replaced in a few minutes.
8. Wide variety of displacements up to 150 cc/rev. Max. pressure 210 bar .
Hydraulic Vane Pump model as following:
Single PFE series:
PFE-21 series: PFE-21005, PFE-21006, PFE-21008, PFE-21010, PFE-21012, PFE-21016
PFE-31 series: PFE-31016, PFE-31022, PFE-31028, PFE-31036, PFE-31044,
PFE-41 series: PFE-41029, PFE-41037, PFE-41045, PFE-41056, PFE-41070, PFE-41085
PFE-51 series: PFE-51090, PFE-51110, PFE-51129, PFE-51150
Double PFED series:
PFED-32, PFED-42, PFED-43, PFED-53, PFED-54
Model |
Displacement cm3/rev |
Max pressure |
Speed range rpm (2) |
7 bar (3) l/min kW |
70 bar (3) l/min kW |
140 bar (3) l/min kW |
210 bar (3) l/min kW |
PFE-31016 |
16,5 |
210 bar (1) |
800-2800 |
23 0,5 |
21 3 |
19 5 |
16 8,3 |
PFE-31022 |
21,6 |
30 0,6 |
28 4 |
26 7 |
23 10,8 |
||
PFE-31028 |
28,1 |
40 0,8 |
38 5,5 |
36 10 |
33 14 |
||
PFE-31036 |
35,6 |
51 1 |
49 7 |
46 12,5 |
43 17,8 |
||
PFE-31044 |
43,7 |
800-2500 |
63 1,3 |
61 8 |
58 15,5 |
55 22 |
|
PFE-41029 |
29,3 |
41 0,8 |
39 5,5 |
37 10 |
34 14,7 |
||
PFE-41037 |
36,6 |
52 1 |
50 7 |
48 12,5 |
45 18,3 |
||
PFE-41045 |
45,0 |
64 1,3 |
62 8,5 |
60 16 |
57 22,6 |
||
PFE-41056 |
55,8 |
80 1,6 |
78 11 |
75 21 |
72 28 |
||
PFE-41070 |
69,9 |
101 2 |
98 13,5 |
95 26 |
91 35 |
||
PFE-41085 |
85,3 |
800-2000 |
124 2,4 |
121 16 |
118 32 |
114 43 |
|
PFE-51090 |
90,0 |
800-2200 |
128 2,7 |
124 17 |
119 33 |
114 45 |
|
PFE-51110 |
109,6 |
157 3,2 |
152 21 |
147 40 |
141 55 |
||
PFE-51129 |
129,2 |
186 3,7 |
180 25 |
174 47 |
168 65 |
||
PFE-51150 |
150,2 |
800-1800 |
215 4,2 |
211 29 |
204 55 |
197 75 |
(1) Max pressure is 160 bar for /PE and/WG versions
(2) Max speed is 1800 rpm for /PE versions; 1500 rpm for /WGversions
(3) Flow rate andpower consumption are proportional to the rotation speed
MAIN CHARACTERISTICS OF VANE PUMPS TYPE PFE-*1
Installation position |
Any position. |
Loads on the shaft |
Axial and radial loads are not allowed on the shaft. The coupling should be sized to absorb the power peak. |
Ambient temperature |
from -20°C to +70°C |
Fluid |
Hydraulic oil as per DIN 51524...535; for other fluids see section |
|
Recommended viscosity max at cold start max at full power during operation min at full power |
800 mm2/s 100 mm2/s 24 mm2/s 10 mm2/s |
Fluid contamination class |
ISO 19/16 (filters at 25 µm value with β25 ≥ 75 recommended) |
Fluid temperature |
-20°C +60°C -20°C +50°C (/WG seals) -20°C +80°C (/PE seals) |
Recommended pressure on inlet port |
from -0,15 to 1,5 bar for speed up to 1800 rpm; from 0 to +1,5 bar for speed over 1800 rpm |
