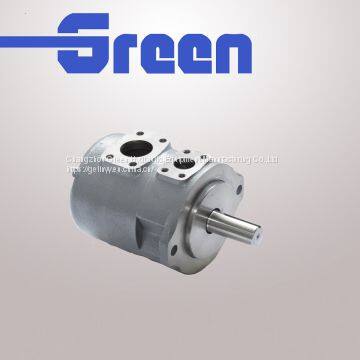

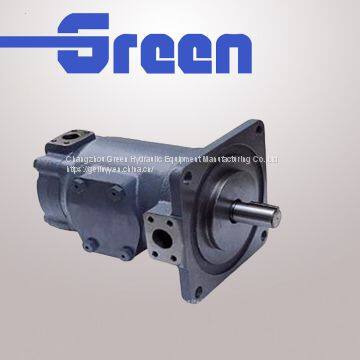

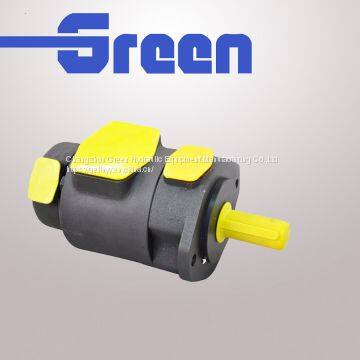

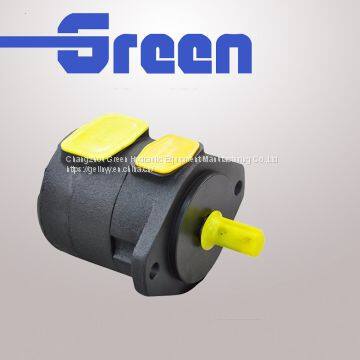

Help CenterTokimec SQP21 SQP31 SQP32 SQP41 SQP42 SQP43 Series Hydraulic Vane Pump
Related Products
-
High Pressure Tokimec SQP Hydraulic Vane Pump Cartridge KitUS$ 100 - 500MOQ: 1 Set -
Auto Spare Parts Hydraulic Pump Tokimec SQP Series Triple PumpUS$ 200 - 900MOQ: 1 Set
-
Tokimec SQP Series Hydraulic Vane PumpUS$ 100 - 500MOQ: 1 Set
-
ATOS PFED Hydraulic Double Oil Pump for Hydraulic SystemUS$ 100 - 500MOQ: 1 Set
-
ATOS PFE Series Hydraulic Single Vane Pump Fuel PumpUS$ 100 - 500MOQ: 1 Set
SQP Series Single Pumps
SQP series vane pumps are high pressure and high performance intra-vane pumps, which are specially developed for low noise working condition. They are widely applied in hydraulic system for machine-tools, presses, die casting machines, engineering, plastic injection moulding and other machineries, which call for lower noise.
Main characteristics:
Cartridge kits are entirely similar to those of VICKERS stable V series, which can be interchanged with cartridge kits of SQP series.
New configuration design gets an excellent performance in restraining pulsing and noise.
Strengthened pump housing design offers a better anti-vibration ability, which effect the remarkable low noise.
(F3-) |
SQP2 |
-21 |
-86 |
C |
(F) |
-(LH) |
-18 |
Infuse front, oil intermiscibility |
Series |
Flow code |
Shaft type |
Outlet Positions |
Installation type |
Rotation |
Design number |
|
No-marking: Anti-wear hydraulic oil, Water glycol-fluid or water-oil emulsions
F3:Phoshate ester fluid |
SQP1 |
2,3,4,5,6,7,8, 9,10,11,12,14 |
Belt key straight shaft
Heavy belt key straight shaft |
(Viewed from shaft end of pump) A-Outlet Opposite inlet B- Outlet 90°CCW from inlet C- Outlet Inline with inlet D-Outlet 90°CW from inlet |
No-marking
Flange Mounting
F-Foot Mountion |
(Viewed form shaft end of pump)
Left hand for counter clockwise
No-marking-Right hand for clockwise |
15 |
SQP2 |
10,12,14,15, 17,19,21,25 |
18 |
|||||
SQP3 |
21,25,30,32, 35,38,45 |
||||||
SQP4 |
42,45,50,57, 60,66,75 |
Series |
Displacement code |
Geometric displacement ml/r |
With antiwear hydraulic oil or phosphate eater fluid |
With water glycol fluid |
With water-oil emulsions |
Min. Speed r/min |
|||
ure Mpa |
Max.speed r/min |
ure Mpa |
Max.speed r/min |
ure Mpa |
Max.speed r/min |
||||
SQP1 |
2 |
7.5 |
13.8 |
1800 |
13.8 |
1200 |
6.9 |
1200 |
600 |
3 |
10.2 |
||||||||
4 |
12.8 |
17.2 |
15.9 |
||||||
5 |
16.7 |
||||||||
6 |
19.2 |
||||||||
7 |
22.9 |
||||||||
8 |
26.2 |
||||||||
9 |
28.8 |
||||||||
10 |
31.0 |
||||||||
11 |
35.0 |
||||||||
12 |
37.9 |
15.7 |
13.8 |
||||||
14 |
44.2 |
13.8 |
|||||||
SQP2 |
10 |
32.5 |
17.2 |
1800 |
15.9 |
1200 |
6.9 |
1200 |
600 |
12 |
38.3 |
||||||||
14 |
43.3 |
||||||||
15 |
46.7 |
||||||||
17 |
52.5 |
||||||||
19 |
59.2 |
||||||||
21 |
65.0 |
||||||||
25 |
79.2 |
||||||||
SQP3 |
21 |
66.7 |
17.2 |
1800 |
15.9 |
1200 |
6.9 |
1200 |
600 |
25 |
79.2 |
||||||||
30 |
95.0 |
||||||||
32 |
100 |
||||||||
35 |
109 |
||||||||
38 |
118 |
||||||||
45 |
140 |
13.8 |
13.8 |
||||||
SQP4 |
42 |
134 |
17.2 |
1800 |
15.9 |
1200 |
6.9 |
1200 |
600 |
45 |
140 |
||||||||
50 |
156 |
||||||||
57 |
178 |
||||||||
60 |
189 |
||||||||
66 |
207 |
||||||||
75 |
237 |
13.8 |
13.8 |
||||||
