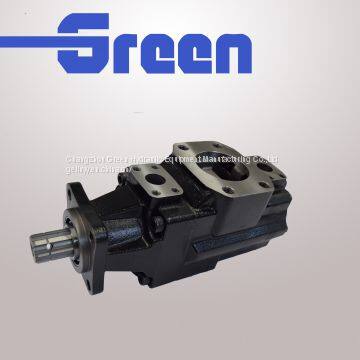

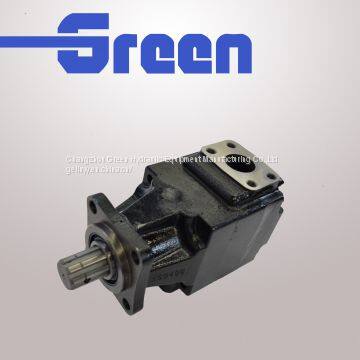

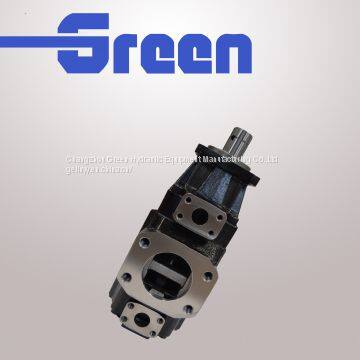

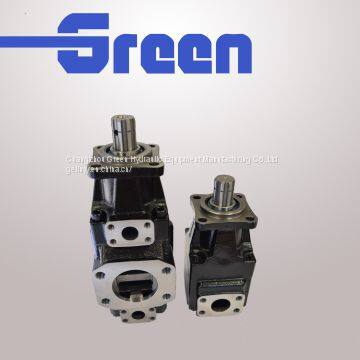

Denison T6GC T7GB Hydraulic Vane Pump

Name: Denison T6GC T7GB Hydraulic Vane Pump
Brand: green
SKU: 158011758
Availability: InStock

US$ 300 - 600 MOQ: 1 Set

Key Specifications

Brand Name:

green

Place of Origin:

China

Model Number:

T6GC T7GB T6GCC T67GCB T7GBB

Changzhou Green Hydraulic Equipment Manufacturing Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai, Ningbo or main port of china

Delivery Detail:

3 days

Brand Name green

Place of Origin China

Model Number T6GC T7GB T6GCC T67GCB T7GBB

Application Other, hydraulic system

Fuel Diesel

Power Hydraulic

Usage Oil

Theory Rotary Pump

Standard or Nonstandard Standard

Structure Other, vane pump

Pressure High Pressure

The high pressure and high performance pin type vane pump is applicable to engineering machinery, especially to mobile machinery.

The main features:

1.The improved bearing structure and rectangle spline shaft design can be driven by motor or gearbox directly.

2.Double shaft seal structure, is fit for bad situations of mobile machinery.

3.Adopt insert structure, the cartridge kit of T6C and T7B can be interchangeable completely, very convenient for pair.

T6GC	-B10	-6	R	00	-A	1	01
Series	Flow-shaft end pump	Shaft type	Rotation	Outlet Positions	Design number	Sealing Level	Port dimensions
T6GC	03,05,06,08,10,12,14, 17,20,22,25,28,31	See size of shaft	(Viewes form shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise	(Viewed from shaft end of pump) 00-Opposite inlet port 01-Inline with inlet 02-90°CW from inlet 03-90°CW from inlet	A	NBR Nitrile rubber Fluororubber	Flange 1“BSPP Flange SAE 4 bolts(UNC) See installation dimensions
T7GB	02,03,04,05,06,07,08,10,12,15	See size of shaft			A	NBR Nitrile rubber Fluororubber
