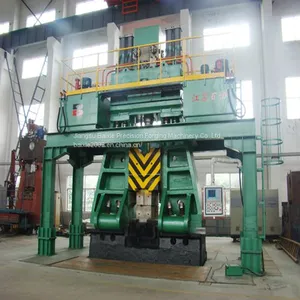

CTKA Series Fully Hydraulic Die Forging Hammer
US$ 0.01 - 0.08
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Baixie
Place of Origin:
China
Model Number:
CTKA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai sea port
Delivery Detail:
100 days
Related Products
-
Series CHK CNC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set -
16KJ Plc Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
25KJ PLC Fully Hydraulic Die Forging HammeUS$ 0.01 - 0.08MOQ: 1 Set
-
31.5KJ PLC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
CTK Series Fully Hydraulic Die Forging Hammer (retrofitting of Pneumatic /steam Hammer)US$ 0.08 - 0.09MOQ: 1 Set
Brand Name
Baixie
Place of Origin
China
Model Number
CTKA
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Basic construct:
1.High integrated fully hydraulic driving system, no need of pump chamber and hydraulic station;
2.Programmable striking control and digital inputting;
3.Long hammer tup enhancing working accuracy;
4.Striking energy and striking sequence set optionally without surplus striking energy avoiding noise and increasing the die life;
5.Man- machine interface and automatically malfunction diagnosis, Chinese and English display
Performance and features:
A.High efficient, energy saving;
B.Consistent quality of forging;
C.Lower run cost;
D.Wide application;
E.Lower investment cost;
F.Easy maintenance and operation.
Technical parameters:
| SPEC. | CTKA | 160 | 200 | 250 | 320 | 400 |
| Striking energy | KJ | 160 | 200 | 250 | 320 | 400 |
| Ram weight | KG | 9000 | 10000 | 11500 | 13000 | 17000 |
| Striking stroke | mm | 1000 | 1050 | 1100 | 1200 | 1300 |
| Striking frequency | |
60 | 55 | 50 | 45 | 45 |
| Motor power | KW | 4*75 | 4*90 | 4*90 | 4*110 | 6*110 |
