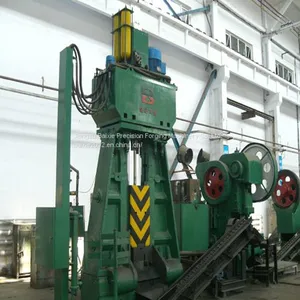

CTK Series Fully Hydraulic Die Forging Hammer (retrofitting of Pneumatic /steam Hammer)
US$ 0.08 - 0.09
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Baixie
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai sea port
Delivery Detail:
150 days
Related Products
-
Wedge-driving HammerUS$ 0.01 - 0.08MOQ: 1 Set -
CTKA Series Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
Series CHK CNC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
16KJ Plc Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
25KJ PLC Fully Hydraulic Die Forging HammeUS$ 0.01 - 0.08MOQ: 1 Set
Brand Name
Baixie
Place of Origin
China
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Basic construct:
1.High integrated fully hydraulic driving system, no need of pump chamber and hydraulic station;
2.Programmable striking control and digital inputting;
3.Long hammer tup enhancing working accuracy;
4.Striking energy and striking sequence set optionally without surplus striking energy avoiding noise and increasing the die life;
5.Man- machine interface and automatically malfunction diagnosis, Chinese and English display
Performance and features:
A.High efficient, energy saving;
B.Consistent quality of forging;
C.Lower run cost;
D.Wide application;
E.Lower investment cost;
F.Easy maintenance and operation.
Technical parameters:
| SPEC. | CTK | 25 | 50 | 75 | 125 | 250 | 320 | 400 |
| Striking energy | KJ | 25 | 50 | 75 | 125 | 250 | 320 | 400 |
| Ram weight | KG | 1750 | 3400 | 5100 | 8000 | 11500 | 13000 | 17000 |
| Striking stroke | mm | 720 | 850 | 900 | 1000 | 1100 | 1200 | 1300 |
| Striking frequency | |
90 | 80 | 70 | 60 | 50 | 45 | 45 |
| Motor power | KW | 55 | 2*55 | 2*90 | 4*55 | 4*90 | 4*110 | 6*110 |
