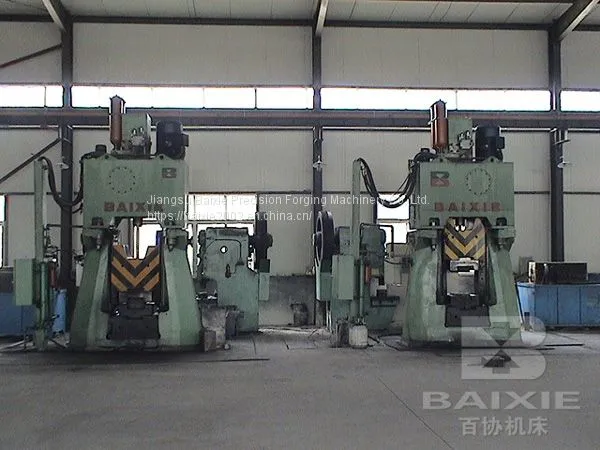

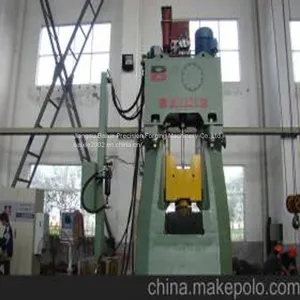

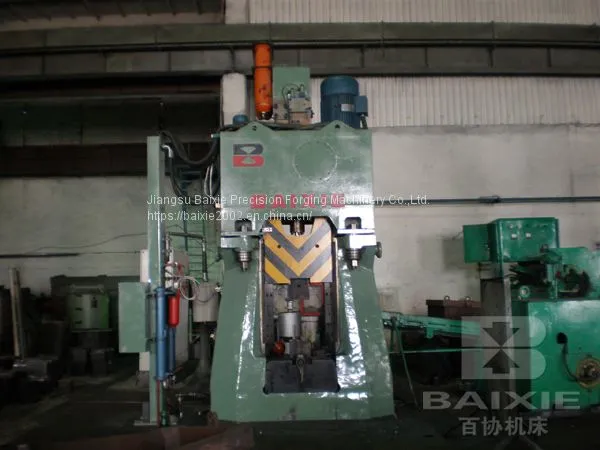

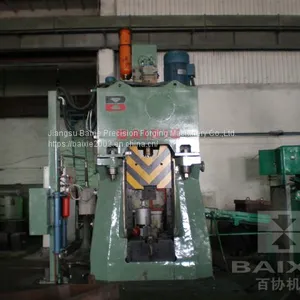

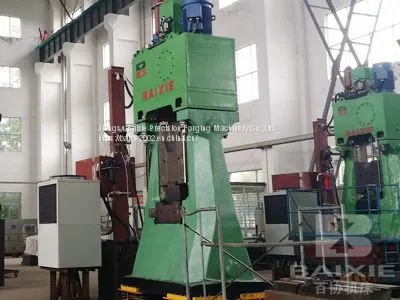

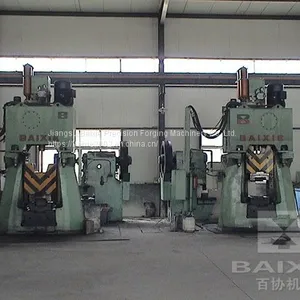

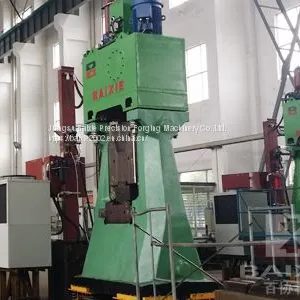

Help CenterSeries CHK CNC Fully Hydraulic Die Forging Hammer
Related Products
-
16KJ Plc Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set -
25KJ PLC Fully Hydraulic Die Forging HammeUS$ 0.01 - 0.08MOQ: 1 Set
-
31.5KJ PLC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
CTK Series Fully Hydraulic Die Forging Hammer (retrofitting of Pneumatic /steam Hammer)US$ 0.08 - 0.09MOQ: 1 Set
-
Wedge-driving HammerUS$ 0.01 - 0.08MOQ: 1 Set
Technical feature:
1.Fully hydraulic driving system, avoiding oil and steam air crossing;
2.High integrated hydraulic control system and accumulator fixed directly on main valve block without any pipe connecting, improving hydraulic system efficiency and easy to maintenance;
3.Slow up and down in the case of releasing hydraulic system pressure, safer to operate;
4.taper priority valves and main valves structure, to get high response speed, good sealing performance and no internal leakage;
5.Advanced high and low pressure double sealing structure, avoiding oil leakage;
6.Special swayable oil cylinder and piston rods guiding structure, suitable for off-center forging and extending piston rod life;
7.One piece casting U frame and radial wide guide rails, to get stable and high ram accuracy;
8.inlaid guide rails allocation in three side, get no stress to guide rails screw;
9.Touch screen man-machine interface and automatic malfunction diagnosis and alarm, easy for machine operation and maintenance;
10.digitized and exacted controlling striking energy, avoiding surplus energy harm during striking.
Advantages:
A.High efficiency, energy saving, safety, reliability and environmental protection;
B.Firmness, durability, good rigidity and high accuracy;
C.Return quickly, unclosed die
D.Easy and flexible operation
E.Be equipped with automatic forging line;
F.Wide application;
Application:
a.parts with small batch but many kinds;
b.Precision forging of irregular and complex parts;
c.Forge with several mold cavities and closed forging;
d.Powder forging, alloy steel forging and non-ferrous metal forging.
Technical parameters:
| SPEC. | CHK | 16 | 25 | 31.5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 |
| Striking energy | KJ | 16 | 25 | 31.5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 |
| Ram weight | KG | 1100 | 1750 | 2250 | 2700 | 3400 | 4200 | 5400 | 6800 | 8400 | 10000 |
| Striking frequency | |
100 | 90 | 90 | 90 | 90 | 80 | 80 | 75 | 70 | 75 |
| Motor power | KW | 30 | 55 | 55 | 75 | 2×55 | 2×55 | 2×90 | 2×90 | 2×110 | 2×132 |
| Machine weight | T | 26 | 40 | 51 | 58 | 80 | 100 | 120 | 150 | 195 | 245 |
