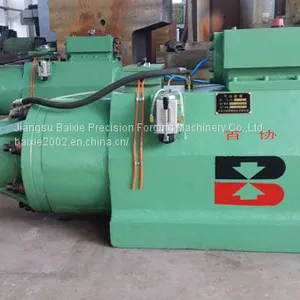

Wedge-driving Hammer
US$ 0.01 - 0.08
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Baixie
Place of Origin:
China
Model Number:
ZC-200,ZC-300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai sea port
Delivery Detail:
100 days
Related Products
-
CTKA Series Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set -
Series CHK CNC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
16KJ Plc Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
-
25KJ PLC Fully Hydraulic Die Forging HammeUS$ 0.01 - 0.08MOQ: 1 Set
-
31.5KJ PLC Fully Hydraulic Die Forging HammerUS$ 0.01 - 0.08MOQ: 1 Set
Brand Name
Baixie
Place of Origin
China
Model Number
ZC-200,ZC-300
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Operating Instructions
1.Use 3T forklift fork to hold the hole in the bottom of the wedge-driving hammer; 2.Connect main pipe to the 0.4-0.6mpa compressed air source; 3.Forklift removes forward to wedge area, keep ram be close to the wedge large end, manipulate the manual valve to realize striking; In this time, main piston will impact deputy ram, thus it will pass impacting force to wedge through the cap, then the wedge will be tightened; 4.Ensure the distance between the ram and wedge is less than 80mm；When the distance is greater than this, the forklift needs to move forward to ensure that there is no empty striking; 5.Adjust opening size of throttle valve to control the opening size of main valve, and then control the impacting force. 6.Be sure to lubricate the piston with a manual oil pump before each work; 7.The gas source should be used by the oil and water separator to reduce the moisture in the compressed air in case the cylinder is corroded. |
Performance and features
1.Working conditions |
a.0.4-0.6Mpa Compressed air sources b.a 3 ton forklift |
2.Advantage |
a.Less staff , usually a forklift worker and an operator b.only compressed air, no need power supply c.Impacting force is adjustable |
