Home > Electrical & Electronics > Sensor > Pressure Sensor > HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories

HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories

Name: HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories
Brand: Hagisonic
SKU: 158486840

HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories thumbnail-1

HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories thumbnail-2

HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories photo-1

HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Hagisonic

Place of Origin:

South Korea

Model Number:

HG-C40U

Contact Supplier Request Quote Chat Now

Week Technology Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Hagisonic

Place of Origin South Korea

Model Number HG-C40U

Theory Ultrasonic Sensor

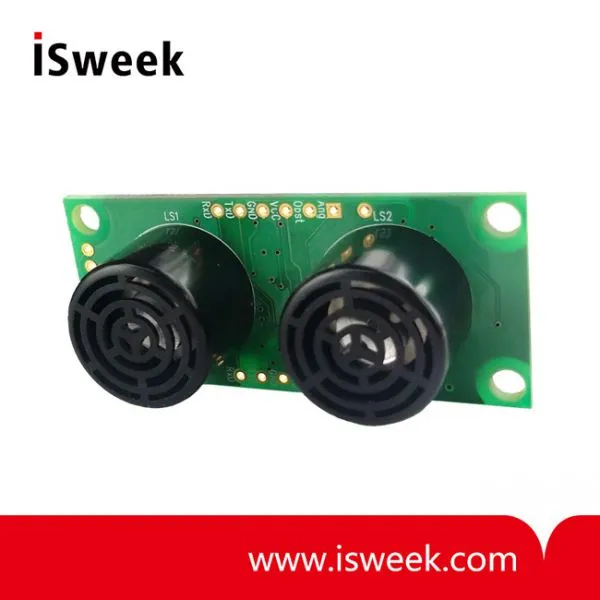

HG-C40U Ultrasonic Range Finder Sensor & Module Description
• ATmega 8 MCU
• Measures distance from the obstacle and sends the data using UART communication.
• Within 5mm Resolution
• Optional two transmitting mode for various use.
- Free Run : With a power supply, sensor transmits trigger and burst signal by itself (for basic application)
- External Trigger : External system(controller or processor circuit) controls the trigger signals – for advance application
• Two types of input power – Low(5V) for processor circuit usage and High(12V) for controllers. ※ Factory Default : 12V
• Various Setting Option
- Free Run / UART Trigger / External Trigger setting
- Ring buffer use or not use setting
- UART communication baudrate setting
- Free Run Trigger interval
• Output Signal
- Distance Data using UART(ASCII, mm)
- Real time ultrasonic wave amplified from actually received ultrasonic.
- Real time TTL level square signal(Square Wave) of detection signal.
• High performance ASIC Chip for stable transmission and sensitive reception.
• Sensor to PC communication using ‘Interface Board’(RS232, Power regulator)
• Data display using monitor program from PC(Hyperterminal available)

HG-C40U Ultrasonic Range Finder Sensor & Module Specification

Communication	UART(TTL)
Input Voltage	5V, 12V(default)
Current Consumption	20mA(Typ) ~ 30mA(Max)
Frequency	40kHz
Max. distance	3.5m (at 5V) 5m (at 12V)
Min. distance	2cm
Resolution	5mm
Size	Module : 50x22x25(mm) Sensor : Φ16
