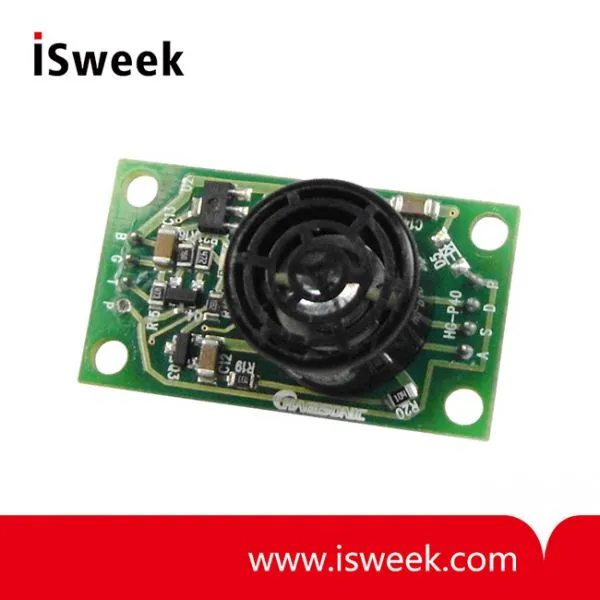

HG-P40C Ultrasonic Proximity Sensor & Module Description
• Using only a single transceiver sensor unit for transmit and receive signals.
• Convenient for distance measuring and object detection.
• Two types of transmit mode for convenience.
- Free Run : With a power supply, sensor transmits trigger and burst signal itself – for basic application
- External Trigger : External system(controller or processor circuit) controls the trigger signals – for advance application(distance measure)
• Two types of input power – Low(5V) for processor circuit usage and High(12V) for controllers.
• Four different output signal (simultaneously).
- Real time ultrasonic wave amplified from actually received ultrasonic. (for sound pressure measuring)
- Real time TTL level square signal(Square Wave) of detection signal. (for robots)
- Distance pulse width signal which is proportional to the nearest object from the sensor. (for robots and distance measuring)
- Proximity output signal(10mA current) within the preset range(0.5~4.5m) (for industrial use)
- Preset range is adjustable from 0.5 to 4.5 m. (factory distance preset available for volume orders)
• High performance ASIC Chip for stable transmission and sensitive reception. (Max. approx. 4,000 times amplification)
HG-P40C Ultrasonic Proximity Sensor & Module Features
• Multi functional transceiver model
• Two types of transmit modes (Free Run / External Trigger)
• Power Supply (Low : 5V / High : 6~16V)
• 4 different output signals (simultaneously)
- Real time received and amplified ultrasonic wave
- Real time TTL square signal
- Distance pulse width signal
- Detecting objects within the preset range(proximity)
• High performance ASIC Chip
HG-P40C Ultrasonic Proximity Sensor & Module Specification
| Input DC |
Low : 5V / High : 6~16V |
|
Current
consumption
(when 12V is used)
|
- 12mA (Standby Mode) - 18mA (When an object is detected within the range) - 28mA (Proximity signal 10mA deducted) |
|
Distance Range
(at flat plate)
|
- 0.4~3m (when 5V is used) - 0.4~6m (when 12V±3V is used) |
| Size |
Module : 20x36x20(mm)
Sensor : Φ16
|
