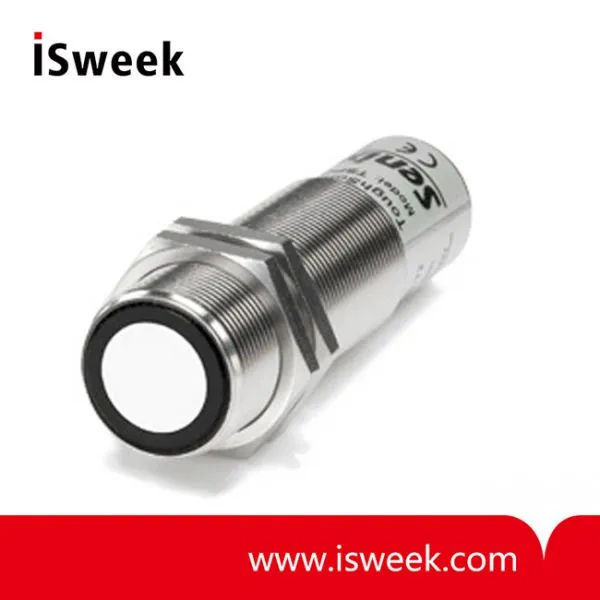

ToughSonic 14 Level & Distance Sensor
PC or Button Setup, Waterproof, Two Selectable Outputs
The ToughSonic 14 ultrasonic sensor has a maximum range of 14 feet (4.3 meters). Like all ToughSonic sensors, it’s built for durability and ease of use in tough industrial environments. It’s fully submersible, corrosion resistant, shock resistant ultrasonic sensors are housed in 316 stainless steeland all around tough. It’s also fully configurable with our SenixVIEW software. ToughSonic 14s include our famous “Teach” feature for push button configuration. This compact sensor is used around the world on remote liquid level systems, heavy equipment, factory automation applications and more. This is our most popular sensor.
For longer range applications or for chemically resistant sensors, please see our full line of ToughSonic and ToughSonic CHEM sensors.
Non-Contact Ultrasonic Distance & Level Measurement
ToughSonic ultrasonic sensors are built Tough with:
• 1.88 inch (48 millimeter) type 316 stainless steel housing.
• Sealed epoxy potting for wet and dirty applications.
• Ruggedized piezoelectric ultrasonic transducer, potted in place.
• Hardened ToughSonic internal electronics.
• UV resistant, potted-in, 9-wire cable.
• Short and overload protected input / output.
ToughSonic ultrasonic sensors are built Smart with:
• SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.
• Multi-sensor network capable.
• Up to six simultaneous, industry standard outputs.
TSPC-30S1 Series Ultrasonic Level & Distance Sensor Specifications
Optimum Range | 10 ft. (3 m) | Max Range | 14 feet (4.3 m) |
Deadband | Typ. <4 in. (100 mm) | Adjustment | Button "teach" or SenixVIEW |
Case Material | 316 stainless steel | Configuration | Stored in non-volatile memory |
Temperature | -40 to 158 ℉ (-40 to 70℃) | Outputs | Two selectable, plus serial data |
Humidity | 0 to 100% operating | Transducer | Ruggedized piezoelectric |
Compensation | Temperature compensated | Protection | NEMA-4X, NEMA-6P, IP68 |
Resolution | Digital:0.0034 in. (0.086 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA) | ||
Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment | ||
Update Rate | 20 Hz (50 ms), SenixVIEW adjustable; also affected by SenixVIEW filter selections | ||
Output Selection | Voltage & 4-20 mA current loop (defaults), switches, or a combination; see C ONNECTIONS below | ||
Voltage Output | 0-10, 0-5 VDC or PC customized, 10 mA max; also push-button teachable endpoints | ||
Current Loop | 4-20 mA or PC customized, current sourcing, max. loop 450Ω, teachable endpoints | ||
Sinking Switch | 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication | ||
Sourcing Switch | 150 mA max. @ input voltage, teachable set point & polarity, fault indication | ||
RS-232, RS-485 | Modbus protocol, 9600 to 115200 baud, 8 data bits, 1 stop, no parity | ||
SYNC feature | Permits up to 32 sensors to operate in close proximity without interaction | ||
Target Requirements | |||
Objects | Detects flat or curved objects. Surface must reflect ultrasound to sensor | ||
Max. Distance | Affected by size, shape, orientation of target (sound level reflected back to sensor), environment Restrict use to Optimum Range when using over a wide range of environmental conditions | ||
Orientation | Flat surfaces should be oriented perpendicular to sensor output beam | ||
Optical | Unaffected by target color, light, transparency or other optical characteristics |
TSPC-30S1 Series Ultrasonic Level & Distance Sensor Connections
Cable Connection | Wire | Description |
Power | Brown | 10-30 VDC @ 60 mA maximum; Typical:45 mA @ 24 VDC (**) |
Ground | Blue | Power and interface common |
Voltage Output | White * | 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC |
Current Loop Output | Black * | 4-20 mA or user adjusted end values between 4 and 20 mA |
Switch #1 Output | Black * | Sinking ("NPN") or Sourcing ("PNP"), user selected |
Switch #2 Output | White * | Sinking ("NPN") or Sourcing ("PNP"), user selected |
RS-232 out / RS-485- | Gray | Serial data connection (depends on model - see part numbers) |
RS-232 in / RS-485+ | Yellow | Serial data connection (depends on model - see part numbers) |
(*) Outputs on the black and white wires are SenixVIEW selected. The black wire options are 4-20 mA current loop or switch. White wire options are 0-10 VDC or switch. Switches can be sourcing or sinking. Max current loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.
TSPC-30S1 Series Ultrasonic Level & Distance Sensor Part Numbers
Model | Number Description |
TSPC-30S1-232 | Serial RS-232 interface (PC COM port compatible) |
TSPC-30S1-485 | Serial RS-485 interface (allows addressable multi-sensor networks) |
