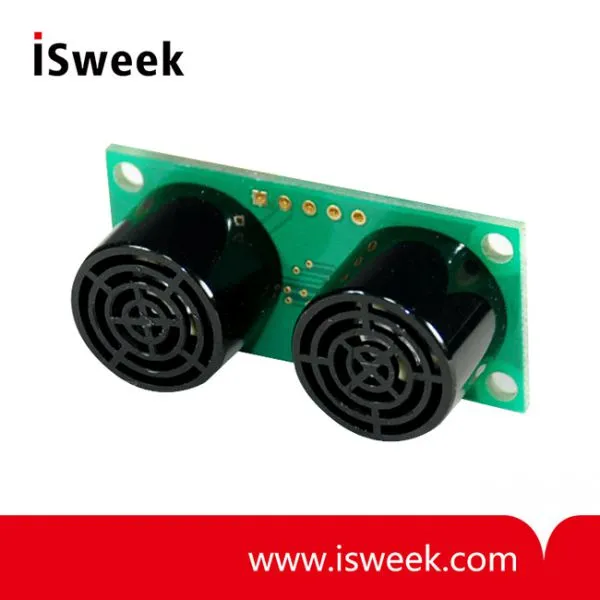

HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
You May Like
- HG-C40U Ultrasonic Range Finder Sensor & Module (UART) (Conventional) All Categories
- HG-P40WP Ultrasonic Proximity Sensor Module for Water Proof Types of Ultrasonic Sensors
- HG-P40C Ultrasonic Proximity Sensor & Module (Conventional)
- PbSe 4 Channel Infrared Detector
- VST-C598IH AC/ DC Operated Carbon Monoxide Alarm (CO Alarm)
- GM220 Film/Coating Thickness Gauge
Product Details
Brand Name: | Hagisonic | Place of Origin: | South Korea | Model Number: | HG-B40A/HG-B40C |
Theory: | Ultrasonic Sensor |
Product Description
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Features
• Low-power, high-sensitivity module.
• Choose from a wide variety of input/output Mode.
• Auto sensitivity control function as a distance proportional to the distance error captain.
• The same standards as existing foreign products and mutually replaceable.
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Specification
Frequency (KHz) | 40±2 | |
Transmit Mode | Free Run | No Connection |
External Trigger | TTL Pulse (100~700 ㎲) | |
Repetition Rate (10~30 time / sec) | ||
Receiver Output Signal | Analog | ±2 V max at 2.5 V Base Line |
Real Time Pulse | 4~5 V TTL, All the objects detected | |
Distance Pulse | 4~5 V TTL Only the nearest Object | |
Input DC & Detecting Range (at in front angle flat plate) | Low Voltage Type (5 V dc) | 0~3 m (Conventional, HG-B40C) |
High Voltage Type (12 V dc) | 0~6 m (Conventional, HG-B40C) 0~3 m (Anistropic, HG-B40A) |
