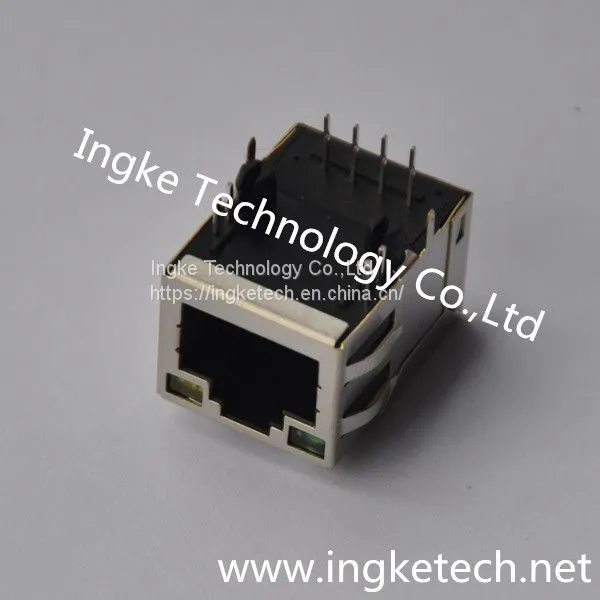

YKJU-8019NL 100% cross 6-6605786-1 Through Hole magnetics rj45 jacks

Ingke YKJU-8019NL 100% cross 6-6605786-1 Through Hole magnetics rj45 jacks

Part Number : 6-6605786-1

Made in China:YKJU-8019NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100 Base-TX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

LED Color: Green - Green

Number of Cores per Jack : 6

Shielding : Shielded, EMI Finger

Features:  Board Lock, Decoupling Capacitance

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd

INGKE can provide 3D model for engineers' design

Our service:

 1).Free sample is available!

 2).OEM & ODM orders are welcomed.

 3).We offer after-sale service for 8 years.

Our Advantage:

 1).High-quality,OEM factory for RJ45 Connector more than 10 years.

 2).Cost reduction, lead time within 1 week, FREE samples.

3) .After sales services 24*7 to help you solve any kind of problems

Ingke Technology Mass production of the following models;

9-1840858-4 1840337-1 1840377-4 1-1840710-3 1840710-5 5-6605408-1 6-6605851-1 5-6605435-6 5-6605435-8 5-6605786-1 6605708-1 6-6605786-1 6-6605809-1 6-6605798-1 6-6605761-1 6-6605710-1 6-6605706-1 6-6605702-1 6-6605457-4 6-6605435-1 6-6605433-1 6-6605423-1 6605842-6 6605840-2 6605837-1 6605831-1 6605814-4 6605814-1 6605760-3 6605713-1 6605711-1 6605473-9 6605459-6 6605445-6 6605421-1 6605412-3 5-6605817-2 5-6605766-9 5-6605758-2 5-6605728-8 5-6605728-2 5-6605721-1 5-6605706-2 5-6605702-6 5-6605702-1 5-6605443-1 5-6605425-9
