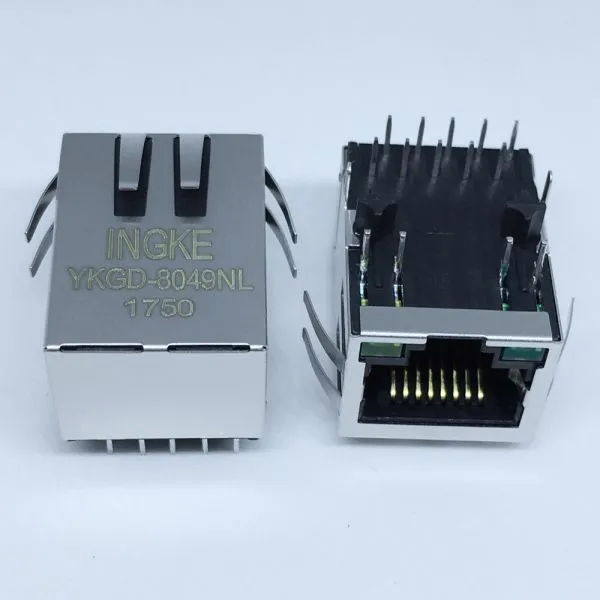

JD0-0001NL YKGD-8049NL Through Hole Single Port RJ45 Ethernet Connectors

Ingke YKGD-8049NL 100% cross JD0-0001NL Single Port RJ45 Ethernet Connectors

Part Number : JD0-0001NL

Made in China:YKGD-8049NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

LED Color: Green - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd

Our service:

 1).Free sample is available!

 2).OEM & ODM orders are welcomed.

 3).We offer after-sale service for 8 years.

Our Advantage:

 (1).OEM factory for Connector more than 10 years.

 (2).Cost reduction, lead time within 1 week, FREE samples.

(3).After sales services 24*7 to help you solve any kind of problems

(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market

(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016 JK0-0017 JG0-0023 JG0-0025 JC0-0031 JC0-0032 JC0-0033 JW0-0009 J00-0025 J00-0045 J00-0046 J00-0061 J00-0062 J00-0064 J0006D01B J0011D01 J0011D21E J0012D21 J0024D21

J0024D21B J0026D21FNL JP006821UNL J0026D01ENL JXR0-0015NLT JXR1-0001NL JXR1-0001NLT JXR1-0005NLT JXR0-0011NLT JXR0-0001NLT JXR0-0005NLT J3018G21KNLT
