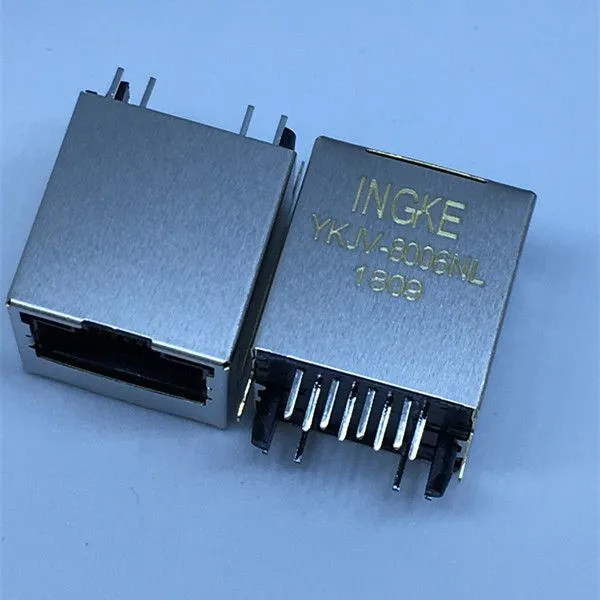

Ingke YKJV-8006NL 100% cross SI-46001-F 100 Base-T Vertical RJ45 Magnetic Jack
Part Number:SI-46001-F
Made in China:YKJV-8006NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:Vertical
Termination:Solder
LED Color:Yellow - Green
Number of Cores per Jack:4
Shielding:Shielded
Features:Board Lock
Tab Direction:User Selectable
Contact Material:Copper Alloy
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Contact Finish Thickness:30µin (0.76µm)
Flammability Rating:UL 94 V-0
Shield Material:Copper Alloy
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
INGKE can provide 3D model for engineers' design
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
1).High-quality,OEM factory for RJ45 Connector more than 10 years.
2).Cost reduction, lead time within 1 week, FREE samples.
3).After sales services 24*7 to help you solve any kind of problems
Ingke Technology Mass production of the following models;SI-60091-F SI-60115-F SI-60190-F SI-60060-F SI-60082-F SI-60124-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F SI-60005-F SI-60022-F SI-60158-F SI-60217-F SI-60014-F SI-60015-F SI-60076-F SI-60123-F SI-61031-F 60063-F SI-60135-F SI-60069-F SI-60105-F
