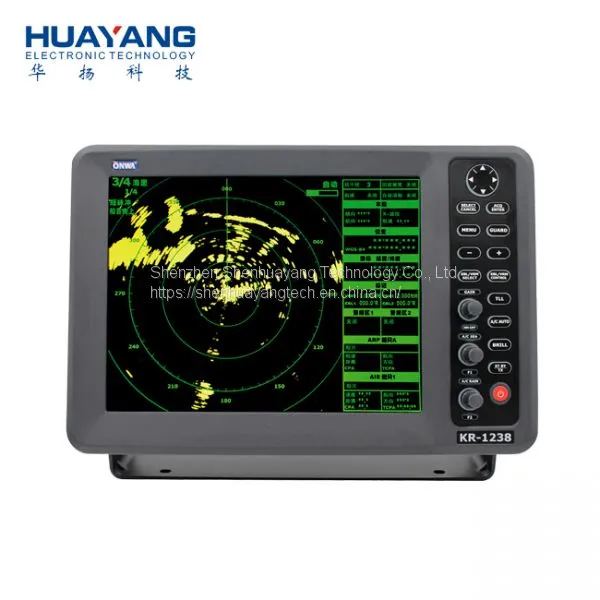

12 Inch Color LCD Marine Radar Detection Device

Shenzhen Shenhuayang Technology Co., Ltd
12 Inch Color LCD Marine Radar Detection Device thumbnail-1
12 Inch Color LCD Marine Radar Detection Device thumbnail-2
12 Inch Color LCD Marine Radar Detection Device photo-1
12 Inch Color LCD Marine Radar Detection Device photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ONWA
Place of Origin:
China
Model Number:
KR-1238
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or Hongkong
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ONWA
Place of Origin China
Model Number KR-1238
Warranty 1
Screen Size Other, 12inch

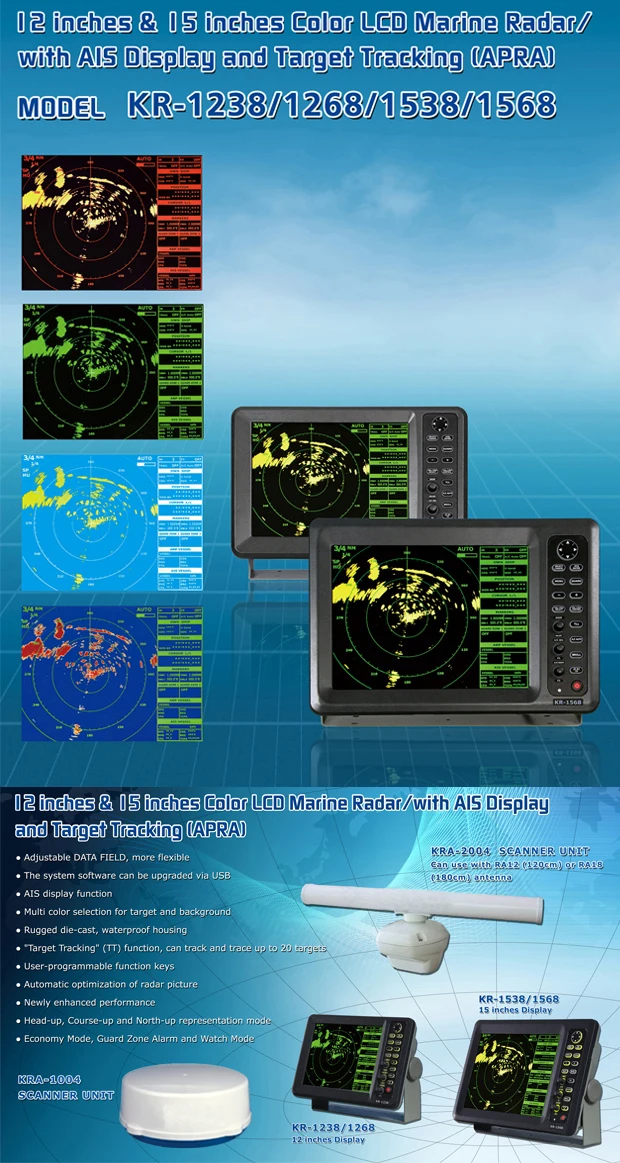

12 inches Color LCD Marine Radar/ with AIS Display and Target Tracking (APRA)



MODEL: KR-1238/1268



FEATURE:

1. Adjustable DATA FIELD, more flexible

2. The system software can be updated via USB

3. AIS display function

4. Multi color selection for target and background

5. Rugged die-cast, waterproof housing

6. Target tracking (TT) function, can track and trace up to 20 targets

7. User-programmable function keys

8. Automatic optimization of radar picture

9. Newly enhanced performance

10. Head-up, Course-up, and North-up representation mode

11. Economy Mode, Guard Zone Alarm and Watch Mode

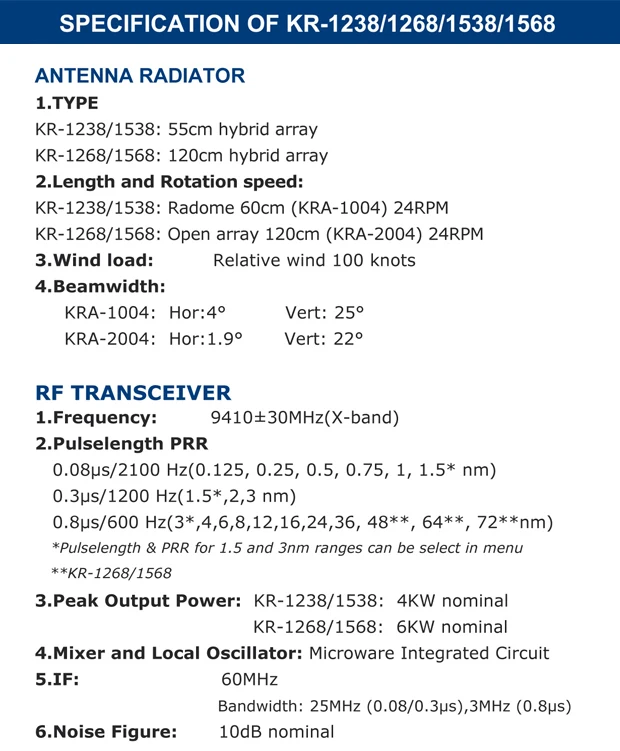

SPECIFICATION OF KR-1238/1268



Antenna Radiator

1. Type:

KR-1238: 55cm hybrid array

KR-1268: 120cm hybrid array



2. Length and Rotation speed:

KR-1238: Radome 60cm (KRA-1004) 24RPM

KR-1268: Open 120cm (KRA-2004) 24RPM



3.   Wind load: Relative wind 100 knots

4.   Beamwidth:

KRA-1004: Hor: 4° Vert: 25°

KRA-2004: Hor: 1.9° Vert: 22°



RF Transceiver

1.   Frequency: 9410±30 MHz (X-band)

2.   Pulselength PRR: 0.08µ s/2100 Hz (0.125, 0.25, 0.5, 0.75, 1, 1.5*nm)

0.3µ s/1200 Hz (1.5*, 2, 3 nm)

0.8µ s/ 600 Hz(3*, 4, 6, 8, 12, 16, 24, 36, 48**, 64** nm)

*Pulselength & PRR for 1.5nm and 3nm ranges can be select in menu

**KR-1268/1568

3. Peak Output Power: KR-1238: 4KW nominal

                                     KR-1268: 6KW nominal

4.   Mixer and local Oscillator: Microware Integrated Circuit

5.   IF: 60 MHz

               Bandwidth: 25 MHz (0.08/0.3µ s), 3 MHz (0.8µ s)

6.   Noise Figure: 10 dB nominal



Display Unit



1.   Type:

12” (KR-1238/1268) LED backlight, 32 bit TFT Color LCD Display. 1024(W) × 480(H) dots

2.Display Modes:

Head-up, Course-up*, True motion**

*Heading input required **Heading and speed inputs required

3. Range Scales (nm):

Range: 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72**

Ring: 1/16, 1/8, 1/4, 1/4, 1/2, 1/2, 1, 1, 2, 2, 3, 4, 6, 12

4. Echo Trail

Interval: 15s, 30s, 1min, 3min, 6min, 15min, 30min, or Continuous

5.   Interface (NEMA 0183 format) --: any talker (menu selection):

Input

$--APB, $--BWC, $--BWR, $--DBK, $--DBS, $--DBT, $--DPT, $--GGA, $--GLC, $--GLL, $--HDG, $--HDM, $--HDT, $--MDA, $--MTW, $--RMA, $--RMB, $--RMC, $--VTG, $--VHW, $--XTE

6.   AIS Display:

Acquistion: AIS vessels or ATON

Tracking: Auto

Display: Vessel Name, MMSI, Call sign, Range/Bearing, L/L, Speed/Course, ROT, CPA/ TCPA

(AIS data input required)

7. Target Tracking Funtion

Acquisition: 20 manual or 10 auto + 10 manual

Tracking: Auto

Display: Speed, Course, Range/Bearing and CPA/TCPA



Environment

Temperature:

-15℃ to + 55℃ (Display unit)

- 25℃ to + 70℃ (Antenna unit)

Power Supply

  • 13.8VDC, 24VDC, 36VDC, 60W (30W in economy mode)

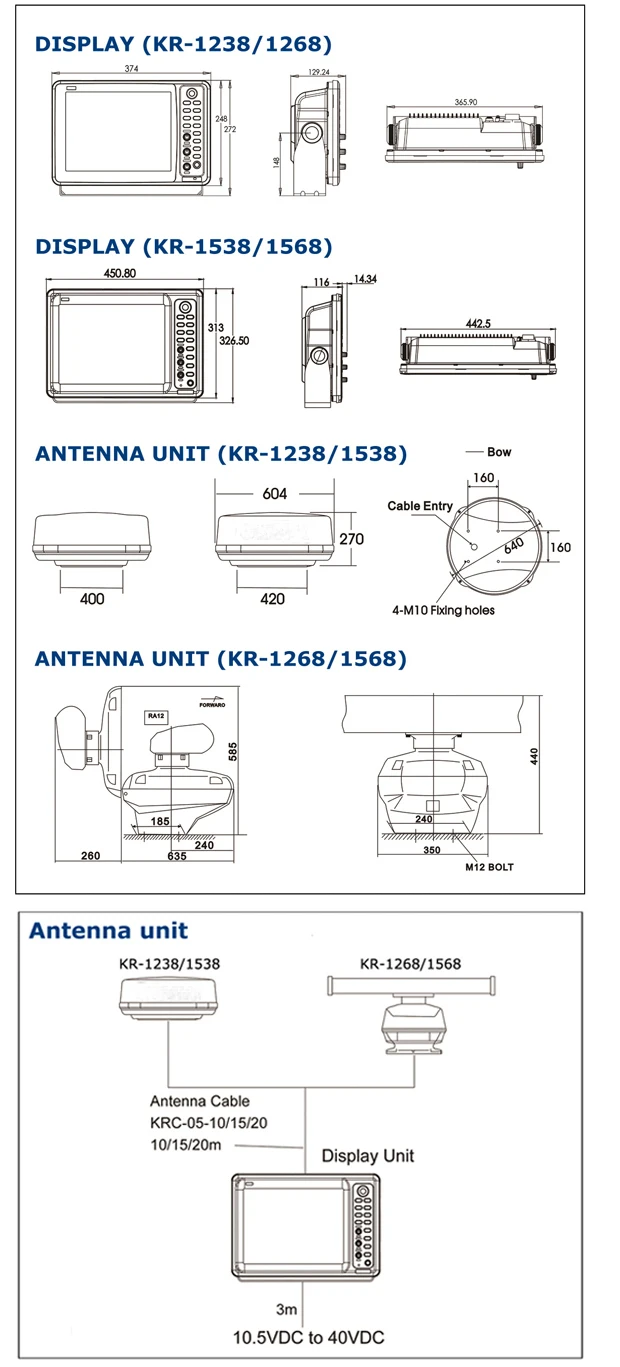

Equipment List

1. Display Unit

KR-1238/1268: KRD-1005   1 unit

2. Antenna Unit

KR-1238: KRA-1004           1 unit

KR-1268: KRA-2004           1 unit

3. Antenna Cable (KRC-05-10/15/20)

10/15/20/30 m (Specify when ordering)

4. Power Cable (KRP-002-0), 3m

5. Standard Spare Parts and Installation Materials   1 set





12 inch Color LCD Marine Radar Detection Device

12 inch Color LCD Marine Radar Detection Device12 inch Color LCD Marine Radar Detection Device12 inch Color LCD Marine Radar Detection Device


Product Tags: Marine Radar , Marine Radar detection , 12inch radar
