WTF-B200 Wind speed and direction Anemometer

WTF-B200 Wind speed and direction Anemometer

Description

WTF-B200 wind vane anemometer offers users a very effective easy to use solution for monitoring wind speed and wind direction.

A whole set of WTF-B200 wind vane anemometer includes WTF-B200 display, WFS-1 wind speed sensor, SC/FX wind direction sensor and cables.



Application

- Cranes

- Weather

- Agriculture

- Hydraulic and Hydroelectricity

- Construction

- Education

etc.



Main function

a. Automatically detect the signals of wind speed and direction and put into the instrument for micro computer processing;

b. Show the preset parameters under different conditions. .

c. Input parameters and delay jitter has the function of data off electricity keep function;

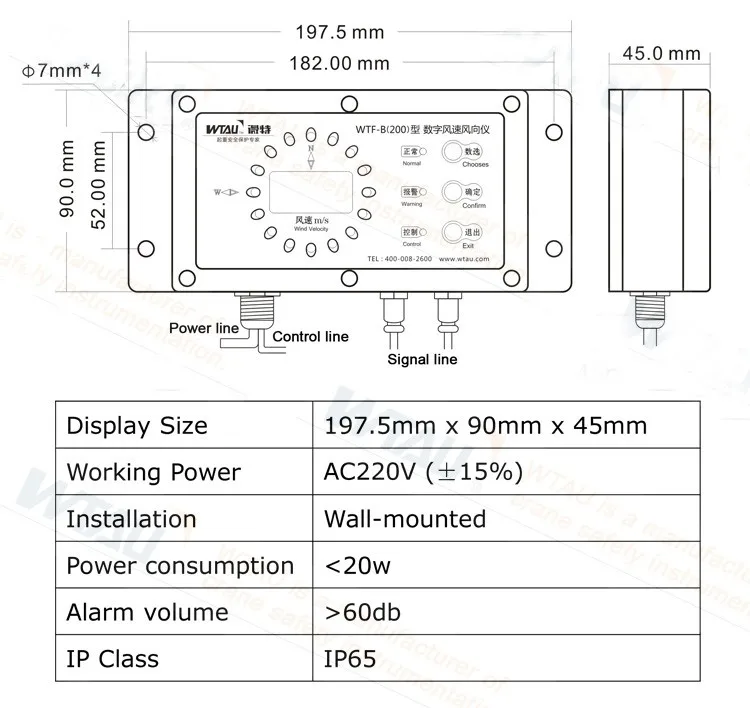

Component

Monitor

Display Size

197.5mm x 90mm x 45mm

Working Power

AC220V (±15%)

Installation

Wall-mounted

Power consumption

<20w

Alarm volume

>60db

IP Class

IP65

WTF-B200 Wind speed and direction Anemometer

(1) display error: more than 3%

(2) the movement error: more than 2%

(3) voltage range: AC220V + 15%

(4) insulating ability: p Ω 10M

(5) power consumption: 20W

(6) working environment: room f temperature - 30 °C ~ + 60 °C humidity 90%

Room temperature within 5: °C ~ + 50 °C humidity 90%

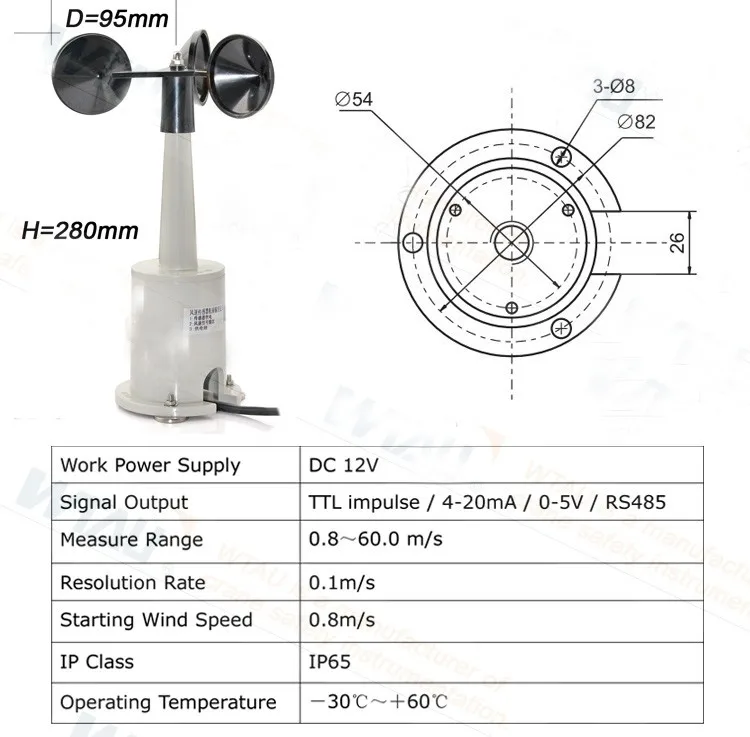

Wind speed sensor

WTF-B200 Wind speed and direction Anemometer



(1) Measurement range: 1.0 ~ 30 m/s

(2) Accuracy :<30 m/s ± (0.5 + 0.05 v)   ≤30 m/s±5%

(3) Resolution: 0.1 m/s

(4) Starting wind speed: <0.7 m/s

(5) Work environment:-30 ℃ ~ + 60 ℃

Wind direction sensor

(1) Measurement range: 16 directions (360 degrees)

(2) Measurement accuracy: ±5%

(3) Input voltage: DC 5 V ~ 24 V DC

(4) Output signal: switch the signal/current signal/voltage signal


Product Tags: Intelligent Digital Anemometer , wind direction Anemometer , wind speed Anemometer
