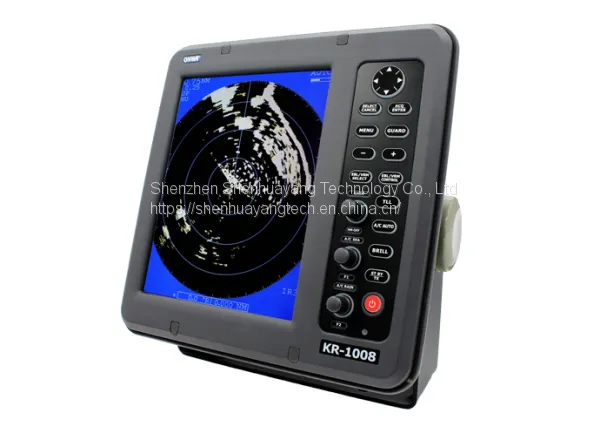

10.4" TFT Color LCD MARINE RADAR

MODEL: KR-1338

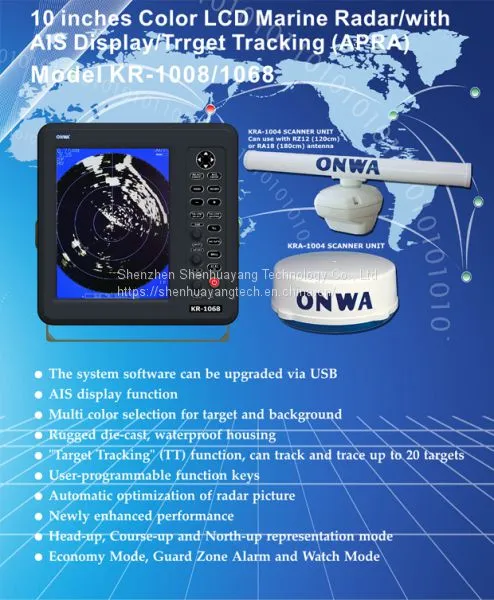

 FEATURE:

 1. Multi Background Color available

 2.Echo can be yellow , green or multi-color selectable

3.   4KW output, 36nm range

4.   Rugged dle-cast, waterproof housing

5.   3 NEMA 0183 ports

6.   User-programmable function keys

7.   Automatic optimization of radar picture

8.   Newly enhanced short range performance

9.   Cursor position and radar system data output

10. Head-up, Course-up, North-up and True Motion

11. Economy Mode, Guard Zone Alarm and Watch Mode

12. Mini ARPA function

SPECIFICATIONS

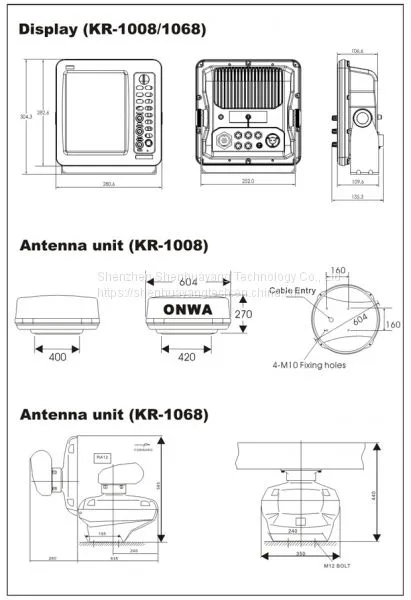

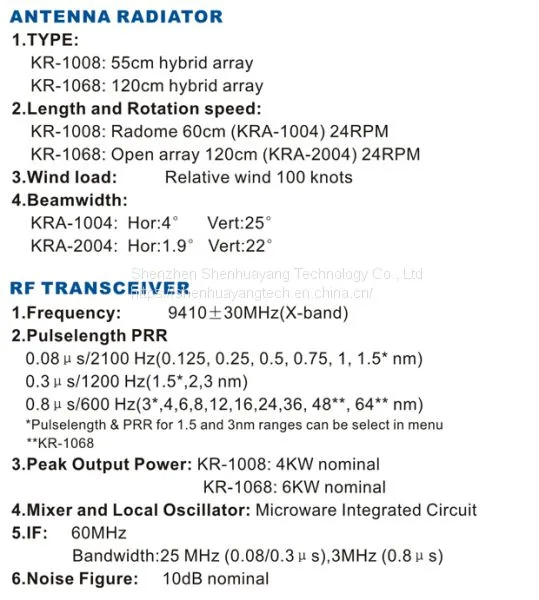

Antenna Radiator

1.   Type: 54cm hybrid array

2.   Rotation speed: 24 rpm typical

3.   Wind load: Relative wind 100 knots

4.   Beamwidth: Hor: 4° Vert: 25° Typical

RF Transceiver

1.   Frequency: 9410±30 MHz (X-band)

2.   Pulselength PRR: 0.08µ s/2100 Hz (0.125, 0.25, 0.5, 0.75, 1, 1.5*nm)

0.3µ s/1200 Hz (1.5*, 2, 3 nm)

0.8µ s/ 600 Hz(3*, 4, 6, 8, 12, 16, 24, 36 nm)

Pulselength & PRR for 1nm ranges can be select in menu

3.   Peak Output Power: 4KW nominal

4.   Mixer and local Oscillator: Microware Integrated Circuit 60 MHz

5.   IF: 60 MHz

Bandwidth: 25 MHz (0.08/0.3µ s), 3 MHz (0.8µ s)

6.   Noise Figure: 10 dB nominal

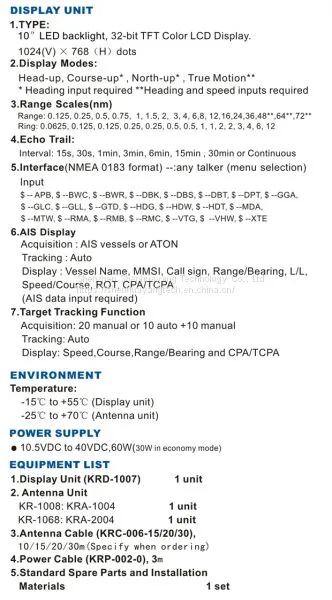

 Environment

 Temperature: -15°C to + 55°C (Display unit)

- 25°C to + 70°C (Antenna unit)

Power Supply

 Power supply: 10.2 to 40.0 VDC, 52W (28W in economy mode)

Equipment List

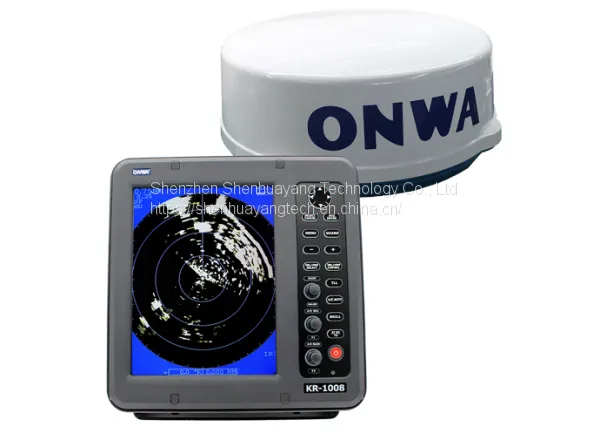

1.     Display Unit

2.     Radome Antenna Unit

3.     Antenna Cable, 10/15/20/30 m (Specify when ordering)

4.     Power Cable, 3m

5.     Standard Spare Parts and Installation Materials
