WTF-B100 Intelligent Digital Anemometer for cranes
Product Description
The WTF-B100 Anemometer offers proven and effective monitoring for crane applications where wind speed monitoring is critically important. In the crane business, wind is a potentially deadly element in the day to day operating environment.

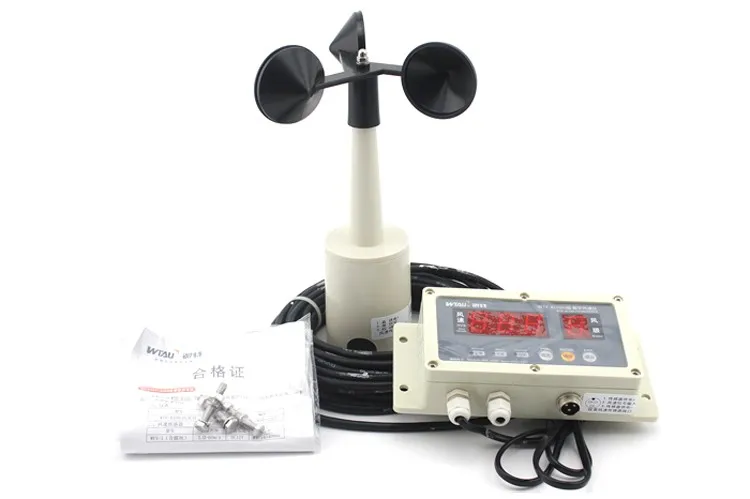

A whole set of anemometer includes WTF-B100 display, WFS-1 wind speed sensor and cable.
Function Description
The WTF-B100 Anemometer offers users a very effective and proven solution for monitoring wind speed.
When actual wind scale reaches the parameter which we signed Fxx , indicator will alarm, guiding lights will flicker.
When actual wind scale rises to the parameter which we signed Pxx , indicator will alarm, guiding lights will flicker, and control relay action.

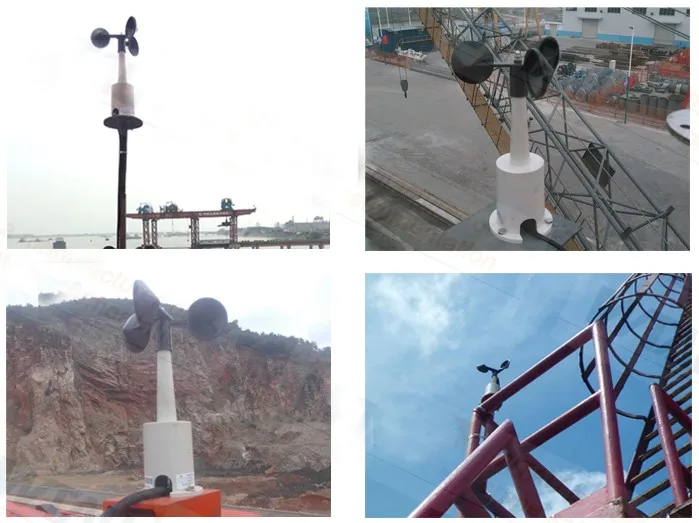

Application
- Telescopic cranes
- Port cranes
- Rail cranes
- Lattice cranes
- Dock cranes
etc.
Parameters Chart
A. WTF-B100 Display
Display Size |
197.5mm x 90mm x 45mm |
Working Power |
AC220V or DC24V (±15%) |
Installation |
Wall-mounted |
Signal Input |
Impulse Signal |
Alarm volume |
>60db |
IP Class |
IP65 |

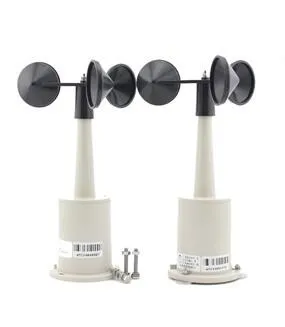

B. WFS-1 wind speed sensor
Work Power Supply |
DC 12V |
Signal Output |
Impulse Signal |
Measure Range |
0.8~60.0 m/s |
Resolution Rate |
0.1m/s |
Starting Wind Speed |
|
IP Class |
IP65 |
Operating Temperature |
-30℃~+60℃ |
Installation
A. Fixed by flange and bolt
B. Attracted to the equipment by strong magnets
