Matsutec Fishing Fishfinder / Echosounder

Name: Matsutec Fishing Fishfinder / Echosounder
Brand: Matsutec
SKU: 158405174
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Matsutec

Place of Origin:

China

Model Number:

Kfish-7

Shenzhen Shenhuayang Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen or Hongkong

Delivery Detail:

3 days

Brand Name Matsutec

Place of Origin China

Model Number Kfish-7

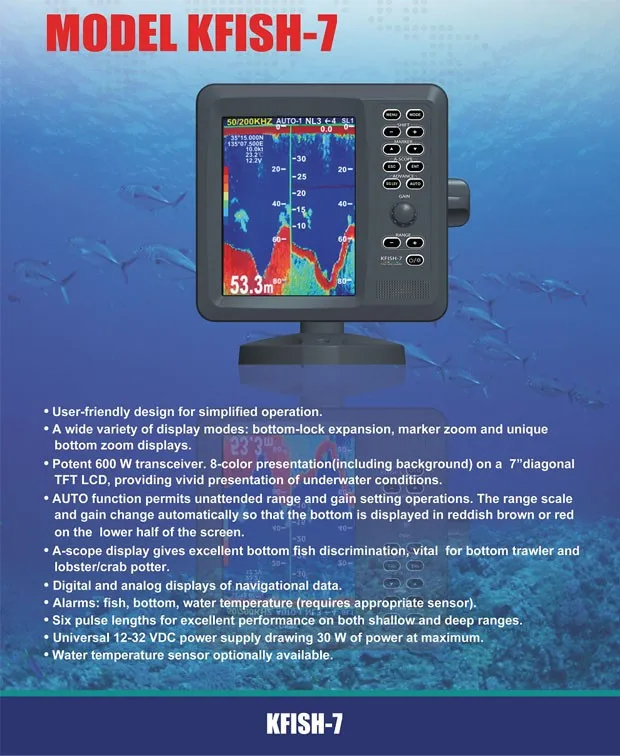

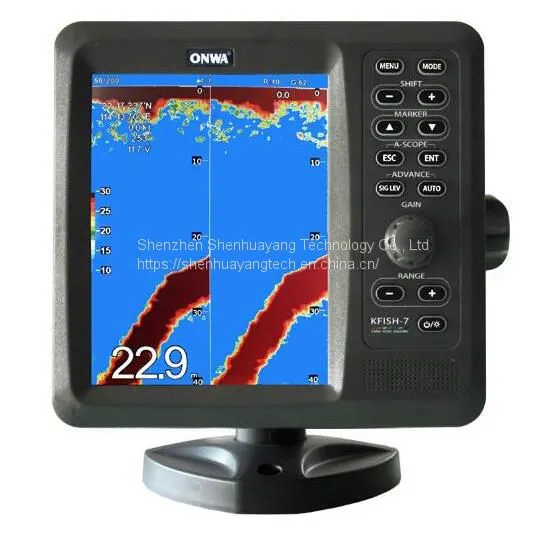

7-INCH COLOR DISPLAY FISH FINDER

MODEL: Kfish-7

FEATURE:

1) Dual-frequency: 50 and 200 KHz

2) 7-inch TFT LCD display with 8-color or multi-level amber presentation

3) Auto Mode for hands-off operation

4) Variety of display modes: A-scope, bottom-lock expansion, marker zoom and unique bottom zoom displays

5) Compound Temperature sensor option

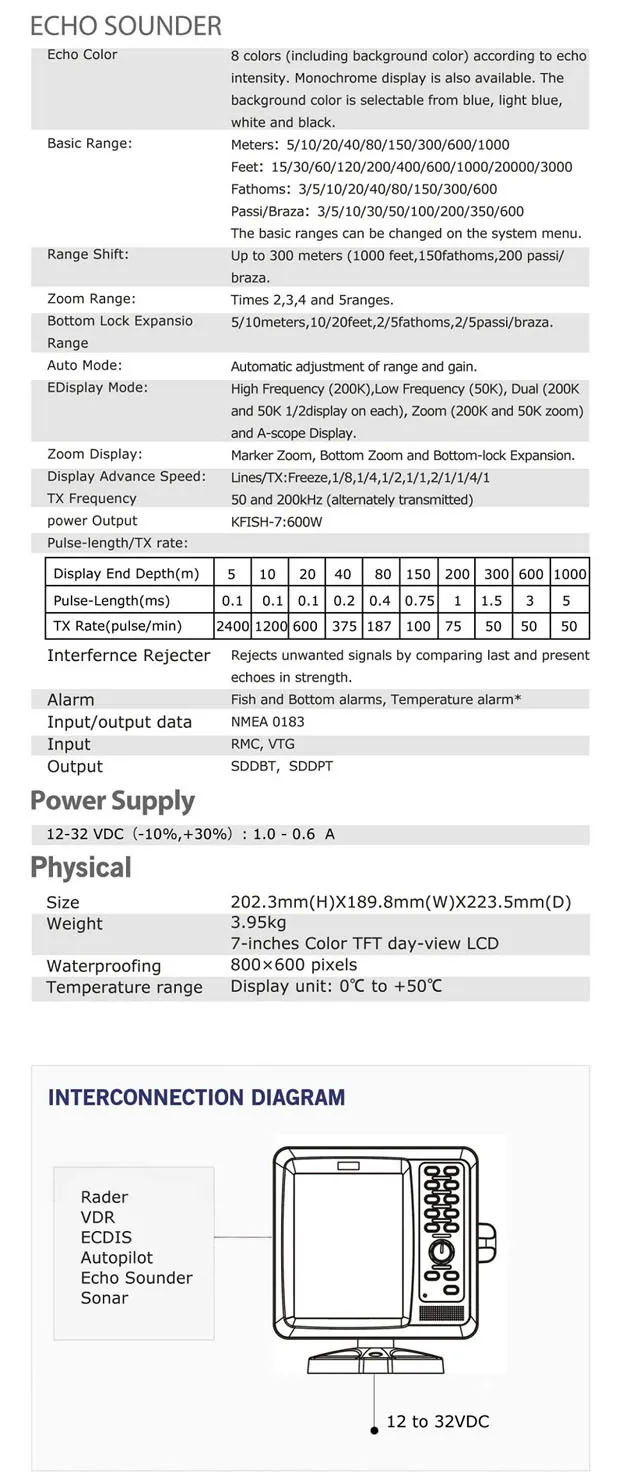

SPECIFICATIONS

1.General

(1) Display	7”inch TFT LCD
(2) Echo Color	8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black.
(3) Basic Range	Meters: 5/10/20/40/80/150/200/300 Feet: 15/30/60/120/200/400/600/1000 Fathoms: 3/5/10/20/40/80/100/150 Passi/Braza: 3/5/10/30/50/100/150/200 The basic ranges can be changed on the system menu.
(4) Range Shift	Up to 300 meters (1000 feet, 150fathoms, 200 passi/braza)
(5) Zoom Range	Times 2, 3, 4 and 5 ranges
(6) Bottom Lock Expansion Range	5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza
(7) Auto Mode	Automatic adjustment of range and gain
(8) Display Mode	High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display
(9) Zoom Display	Marker Zoom, Bottom Zoom and Bottom-lock Expansion
(10) Display Advance Speed	Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
(11) TX Frequency Output power	50 and 200kHz (alternately transmitted), 300W
(12) Pulse-length/TX rate	Display End Depth(m) 5, 10, 20, 40, 80, 150, 300 Pulse-Length(ms) 0.2, 0.2, 0.2, 0.4, 0.8, 1.5, 3.0 TX Rate(pulse/min) 600, 600, 600, 375, 187, 100, 50
(13) Interference Rejecter	Rejects unwanted signals by comparing last and present echoes in strength.
(14) Alarm	Fish and Bottom alarms, Temperature alarm (sensor required)
(15) Input/output data Input Output	NMEA0183 RMC, VTG SDDBT, SDDPT

2. Power Supply

(1) Display Unit

12-24 VDC -10%, +30%: 1.0 - 0.6 A

3. Environmental Condition

(1) Ambient Temperature	0℃to + 50℃
(2) Relative Humidity	85% at 40℃
(3) Water proofing	Display Unit: IPX4
(4) Vibration	±1mm ±10%, 2(5) to 13.2Hz, Maximum acceleration 7 m/s, 13.2 to 100Hz
