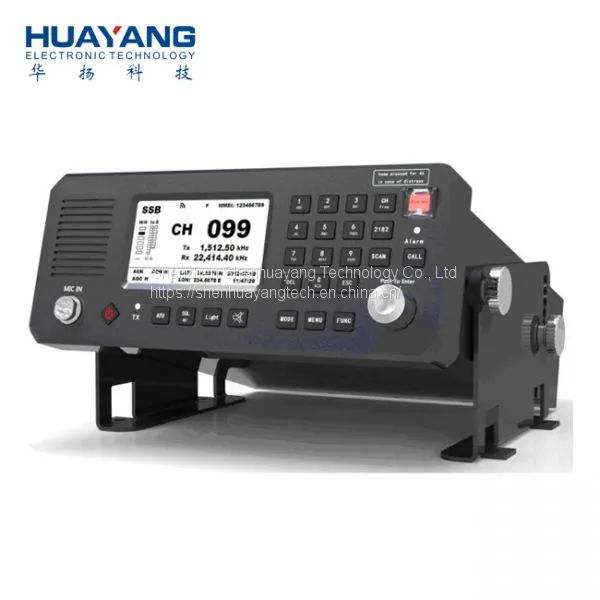

WT-A150 Marine MF/HF DSC SSB Transceiver

WT-A150 Marine MF/HF DSC SSB Transceiver thumbnail-1
WT-A150 Marine MF/HF DSC SSB Transceiver thumbnail-2
WT-A150 Marine MF/HF DSC SSB Transceiver photo-1

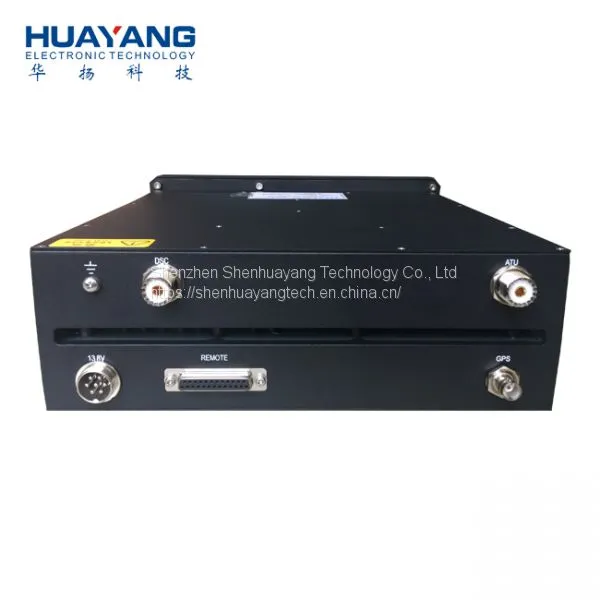

WT-A150 Marine MF/HF DSC SSB Transceiver photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Matsutec
Place of Origin:
China
Model Number:
WT-A150
Contact Supplier Request Quote Chat Now
Shenzhen Shenhuayang Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or Hongkong
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Matsutec
Place of Origin China
Model Number WT-A150
Type Vehicle Mouted

Marine MF/HF DSC SSB Transceiver

Model: WT-A150



Product Introduction:

As an important device of GMDSS, WT-A150 adopts advanced software radio technology. It can not only meet the mandatory requirements of GMDSS, but also supply enhanced image display and data communication function to users. Besides, it is fully compliant with IEC 61097-9 and other relevant international standards and is a type of ship-borne radio and navigation equipment with independent intellectual property right.





Feature:

1. Convenient operation, stable and reliable performance
2. Improved maritime rescue capability with six standards DSC simultaneously on duty
3. Improved communication reliability with simultaneous standby of six routine standards DSC
4. Function and specification upgrading by software
5. Supporting prevailing automatic antenna tuning unit





Function:

SSB voice;
A single press of button to initiate distress alarm;
Six standards of DSC simultaneous on duty;
Supporting graphical display of meteorological early warning information;
299 user channels;
ITU channel preset;
Frequency scanning;
Built-in GPS;
Desk-top or embedded installation



Specificaions:

1. Main Unit
Operating frequency range: 1.6MHz~ 30MHz (transmission), 0.5MHz~ 30MHz (receiving)
Frequency stability: ±10Hz
Modulation type: SSB, DSC, AM
Operating temperature range: -15℃~ 55℃
Storage temperature: -50℃~ 70℃
Power requirement: 13.8V DC±15%
Power consumption: RX:
Dimensions: 285mm x 115mm x 335mm Weight:
External interface: RS-232, USB1.0


2. Receiver
Sensitivity:≤11dBuV(SINAD=20dB)
Selectivity:3k/-3dB, 3.8k/-60dB
Audio Output Power: 2W/8Ω
Audio Frequency Response: 300Hz~3000Hz,


3. Transmitter
Output power: 150W/100W/50W
Sideband suppression: ≤-60dBc
Carrier suppression: ≤-60dBc
Clutter suppression: ≤-60dBc IP3: ≤-25dBc


Product Tags: MF/HF transceiver , SSB Transceiver , hf SSB Transceiver
