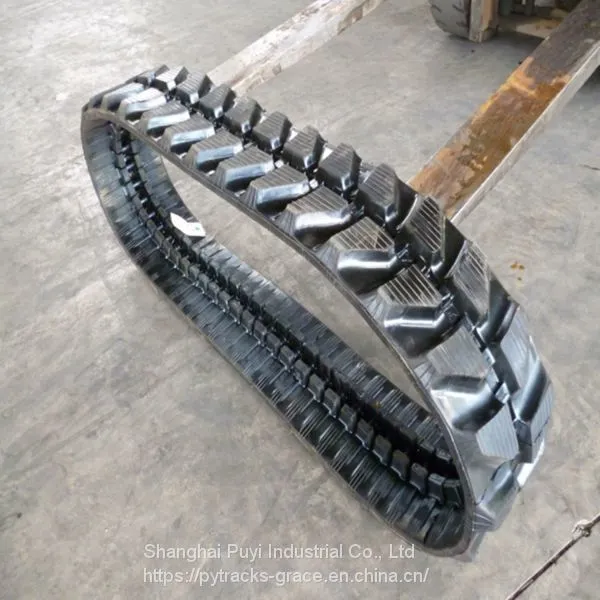

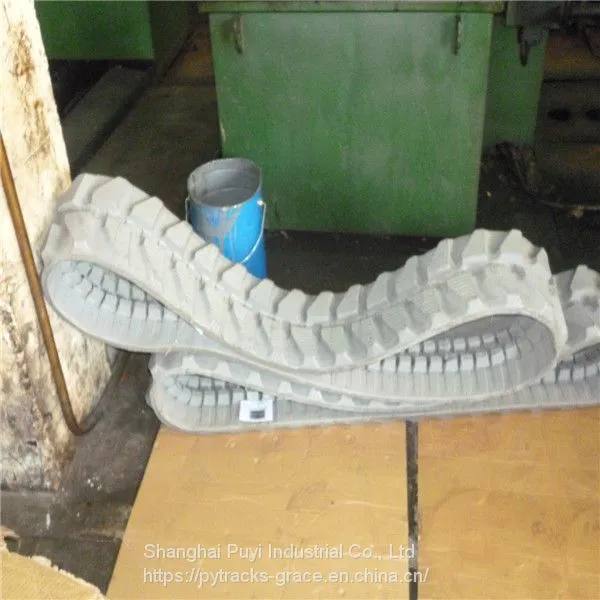

Rubber Track 230*48*70 for Mini Excavators/ Skid Steer Loaders

Rubber Track 230*48*70 for Mini Excavators/ Skid Steer Loaders thumbnail-1
Rubber Track 230*48*70 for Mini Excavators/ Skid Steer Loaders thumbnail-2
Rubber Track 230*48*70 for Mini Excavators/ Skid Steer Loaders photo-1
Rubber Track 230*48*70 for Mini Excavators/ Skid Steer Loaders photo-2
US$ 150 - 160 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Puyi
Place of Origin:
China
Model Number:
230*48*70
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Puyi
Place of Origin China
Model Number 230*48*70

Rubber Tracks for Mini Excavators/ Skid Steer Loaders (230*48*70)
Size: width230mm*pitch48mm*70links
Overall length: 3360mm
Weight:60.9kg

Specifications
1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Conventional and interchangeable type

5). OEM orders of complete track systems are welcome

6). Comprehensive range of standard rubber crawler track systems are available

7). Undercarriages and bases are available for a wide range of machinery

8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler

carrier vehicle, agriculture machinery, paver and other special machine

9). Warranty: 12 months

10). Certification: ISO9001: 2000

Parameters:

Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74

300*52.5W 72-92 KB400*72.5K 68-76
