Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor

Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor thumbnail-1
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor thumbnail-2
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor thumbnail-3
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor thumbnail-4
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor photo-1
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor photo-2
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor photo-3
Construction Equipment Rubber Track for Skid Steer 180*72*39 Tractor photo-4
US$ 79 - 85 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
PY
Place of Origin:
China
Model Number:
180*72*39
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PY
Place of Origin China
Model Number 180*72*39

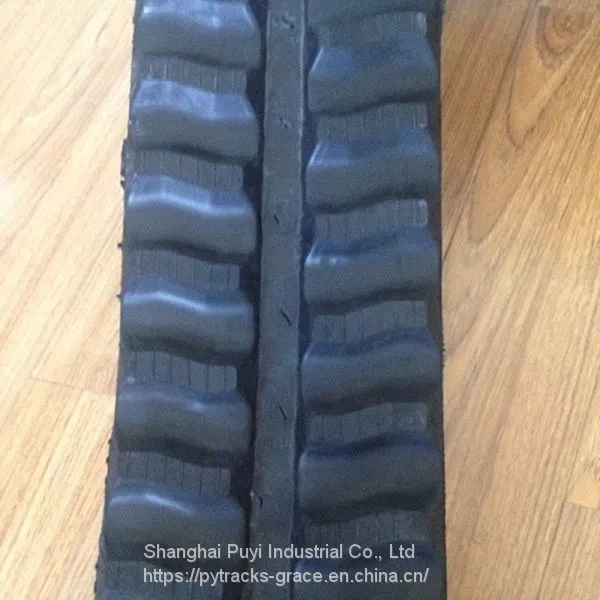

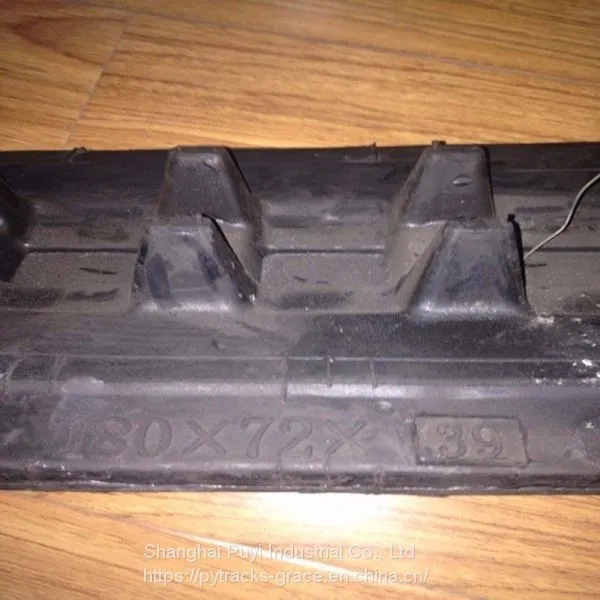

 Commodity: Rubber Track (180mm*72mm*39links)

1. Installation of the Rubber Tracks

A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the

guide wheels and supporting wheels and leads to track derailment or escapes.


B. Too large strength: Track wire will be deformed at the elongation by the excessive strain

tensile, which will make the pitch changed, and track core iron and the drive wheels

abnormally worn, also will make teeth touched and the track broken, the machine power loss

larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track

is strained, the maximum sag distance is 10-15mm, just as the pitch below.


2. Attention

In order to extend the life of rubber tracks, please complete the following work:

A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to

avoid speeding up the wearing, twisting and chapping of the rubber track.


B. Try not to work in the rotten field, to avoid rubber track skid and wear.


C. When the stones or other objects come into the crawler and chassis, stop immediately,

and clear gravels or obstacles.



3. Warns

A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.

B. Do not drive in the rivers, streams and on the seacast or any rugged road.

C. Do not make the track unilaterial landing.

D. Forbid aggressive driving.

E. Avoid making a turn rapidly, please slow down and make a turn gradually.

About Us:

Our plant mainly produce Rubber Track which are specially good use for these kind of

Machine:Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch

Paver, Agricultural,Harvester, Dumpers...Etc.



Width*Pitch length(mm)		 Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74

300*52.5W 72-92 KB400*72.5K 68-76

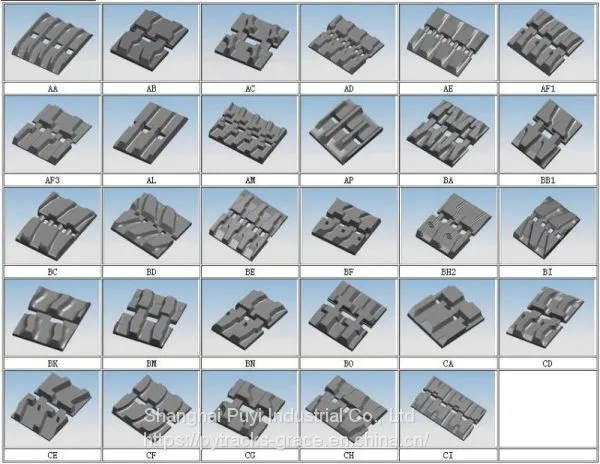

Pattern:


Customers' order:

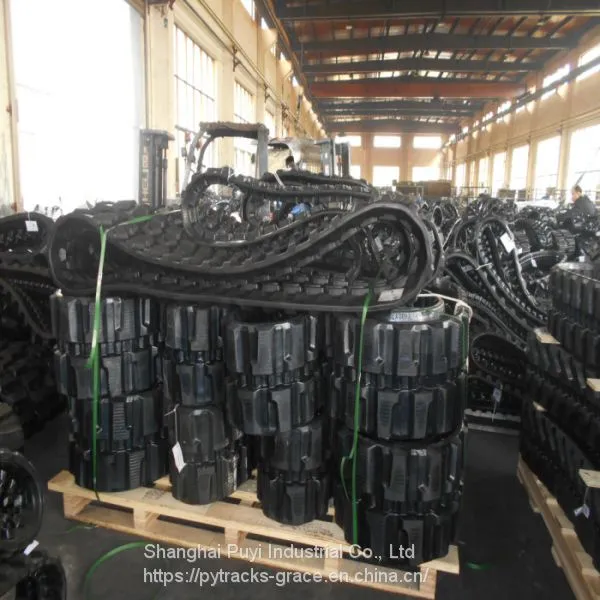

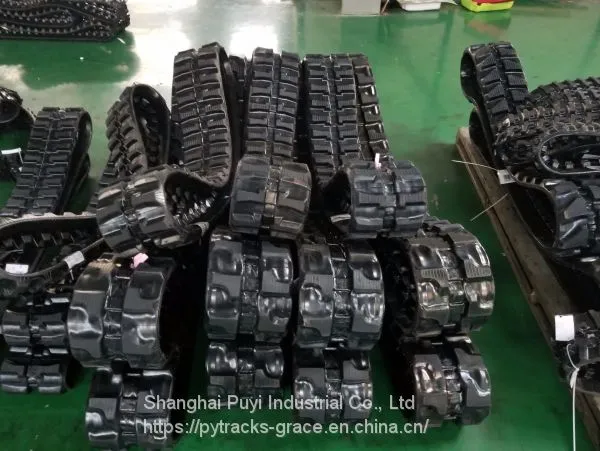

Workshop:

Product Tags: Rubber Track , rubber crawler , excavator
