Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator

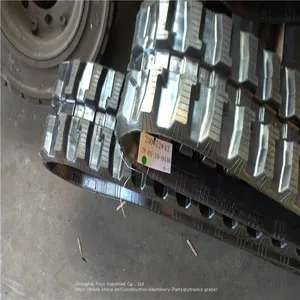

Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator thumbnail-1

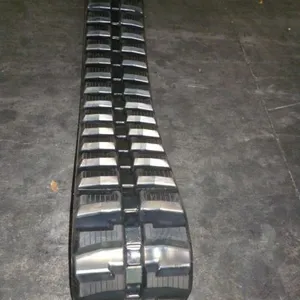

Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator thumbnail-2

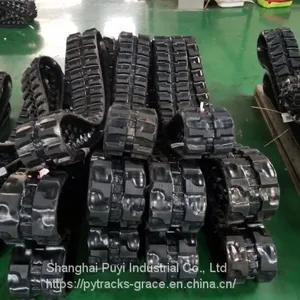

Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator thumbnail-3
Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator photo-1

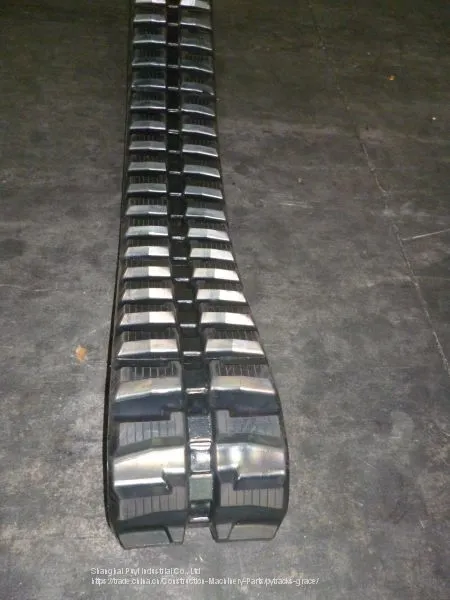

Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator photo-2

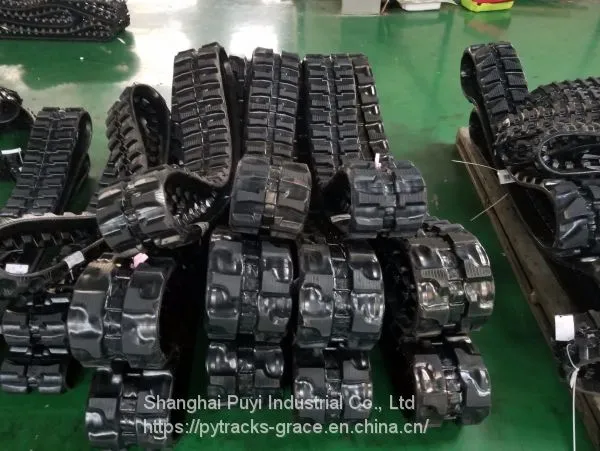

Volvo Ec15rb Rubber Track (230*72*43) for Construction Excavator photo-3
US$ 125 - 130 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Puyi
Place of Origin:
China
Model Number:
230*72*43
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Puyi
Place of Origin China
Model Number 230*72*43

Commodity: Excavator Track(230*72*43)

Size:Width230*Pitch72*Links43

Weight:46.87kg

Link and lenght can be adjustable

Warranty:Guarantee one year under normal use


Appliciation:mainly used in excavator and other model number can be used

in snowblower,snowmobile,robot,wheelchair,(mini) excavators,track loaders,pitch

paver,agricultural,harvest,dumpers...etc.


Characteristics of rubber track:

1).Less damage to the ground surface


2).Low noise


3).High running speed


4).Less vibration;


5).Low ground contack specific pressure


6).High tractive force


7).Light weight


8).Easy to change


About us:

We supply Rubber Tracks,Rubber Tracks for Truck,Small Rubber Track,Mini Asphalt Paver

Rubber Track,Rubber Track for Harvesting Excvavtor,Rubber Track for Skid Steer

Loader,Rubber Track for snowmobile,Rubber Track for snowblower,Rubber track for robot,etc.


Parameters:



size width*pitch 		link A B C D F pattern guiding
130*72 29-40 23 64.5 28 28 15 AF1 A2
150*60 32-40 22 64 22.5 24.5 15 AC A2
150*72 29-40 23 64 23 23 15 AC A2
170*60 30-40 19 57 22 22 13 CE A1
180*60 30-40 23.5 64 21 21.5 15 AM A1
180*72 31-43 25 68 29 29 15 BK A2
180*72K 32-48 20 61 22 19.5 17 BB1 B2
B180*72 31-43 23 66 30 29 15 BB1 B2
H180*72 30-50 23 64 27 26 17 BK A2
190*60 30-40 23.5 64 21 21.5 14 AM A1
190*72 31-41 21 68 27.5 26.5 15 BF A2
200*72 34-47 23 76 28.5 26.5 18 BB1 A2
200*72K 37-47 21 69 29.5 29 18 BM A2
Y200*72 40-52 24 64 28.5 29.5 12 BK A2
230*48 60-84 24 72 24 25 21 BI B1
230*48K 60-84 24 66 21 20 19 BI B2
230*72 42-56 24 82 30 26 18 AF1 A2
230*72K 42-56 20 69 29.5 28 16 BD A2
230*96 30-48 25 68 23.5 25.5 22 BE B1
230*101 30-36 25 74 22.5 29 19 BO B1
250*47K 84 23 70 24 20 22 BD B2
250*48.5K 80-88 24 66 21 20 19 CA B2
250*52.5K 72-78 26 81 23 25 25 BA B2
250*52.5 72-78 29 72 23 25 21 BI B1
250*72 47-57 24 82 30 26 18 AF1 A2
B250*72 34-60 23 64 29 22 10 CI A2
B250*72B 34-60 23 78 29 26 16 AB B2
250*96 35-38 25 70 20 19 22 BB1 B2
250*109 35-38 40 89 24.5 14 20 CG B1
260*55.5K 74-80 31 80 21.5 27 24 CA B2
Y260*96 38-41 25 68 23 25.5 22 AB B1
260*109 35-39 30 84 24 29 15 AB B1
E280*52.5K 70-88 29 84 27 26 22 BI B2
280*72 45-64 25 78 29.5 26 22 AL A2
Y280*106K 35-42 30 80 27.5 28 20 AB B2
300*52.5N 72-98 30 82 25 18 20 BI B1
300*52.5W 72-92 43 96 22 23 22 BE B1
300*52.5K 70-84 29 84 27 26 22 BI B2
300*52.5KW 72-92 40 92 25 24 22 BI C1
E300*52.5K 70-88 29 84 27 26 22 BI B2
KB300*52.5 72-92 40 90 24.5 24.5 22 BI C1
KB300*52.5N 72-98 30 82 23 20 25 BI B1
JD300*52.5N 72-98 30 80 23.5 22 22 BI B1
300*53K 80-96 31 88 25 19.5 21 BI B2
300*55 70-88 29 86 25.5 27.5 23 BI B1
300*55.5K 76-82 31 82 22 27 21.5 CA B2
300*71K 72-76 42 106 23 24 40 BD B2
300*72 36-40 23 75 40 34 18 BK A2
BA300*72 36-46 26 76 29 27 19 AF1 A2
300*109N 35-42 29 82 27 28 25 BE B1
300*109W 35-44 38 90 26 29 24 BB1 B1
K300*109 37-41 27 85 23.5 27.5 20 AB B2
300*109WK 35-42 40 90 24.5 14 23 CG B1
320*52.5 72-98 30 83 23.5 18 21 BI B1
320*54 70-84 29 80 23 21 20 AB B1
B320*55K 70-88 30 82 25 30 23 BE B2
Y320*106K 39-43 31 80 26 27 24 AB B2
350*52.5 70-92 40 94 22.5 19 30.5 BE B1
E350*52.5K 70-88 29 84 27 26 22 BI B2
350*54.5K 80-86 40 92 23.5 22.5 23 AD B2
B350*55K 70-88 30 82 25 30 23 BE B2
350*56 80-86 39 89 25.5 16.5 20.5 BC B1
350*75.5K 74 37 98 24.5 25 25 CA C2
350*108 40-46 40 90 24.5 14 25 CG B1
350*109 41-44 40 92 26 20 25 BO B1
Y370*107K 39-41 38 94 25.5 28 23.5 AB B2
400*72.5N 70-80 38 100 26 24 25 AF3 B1
400*72.5W 68-92 51 108 26 24 25 BI B1
Y400*72.5K 72-74 28 86 30 24.5 25 AF3 C2
KB400*72.5K 68-76 37 94 24 26 23.5 BA B2
400*72.5KW 68-92 46 112 24 23.5 25 BI B2
400*74 68-76 38 100 25.5 29.5 24 BH2 B1
400*75.5K 74 39 100 25 26 25 CA C2
Y400*107K 46 38 89 27 25 25 AB C2
K400*142 36-37 27 87 34 27 29 CF C2
400*144 36-41 47 98 27 11 30 CF B1
Y400*144K 36-41 35 126 29.5 26 25 BE B2
450*71 76-88 42.5 115 29.5 17 30 BE B1
DW450*71 76-88 44 114 31 27 25 BD B1
450*73.5 76-84 42 118 31 34 28 CG B1
450*76 80-84 48 122 30.5 31.5 26 BI B1
450*81N 72-80 42 117 26 24 27 BE B1
450*81W 72-78 58 140 29 32 30 BI B1
KB450*81.5 72-80 42 110 31.5 27.5 26 BD B1
K450*83.5 72-74 42 112 24.5 25 28 BI B1
Y450*83.5K 72-74 38 113 24 27 26 CA B2
K450*163 38 38 114 27 28 30 AB B2
485*92W 74 62 142 34 33 30 BE B2
K500*71 72-76 41 106 23 24 42 BE B2
500*92 72-84 48 130 27 26 29 BI B1
500*92W 78-84 64 155 32.5 35.5 33 BI B1
K500*146 35 40 106 26.5 24.5 50 BB1 A2
