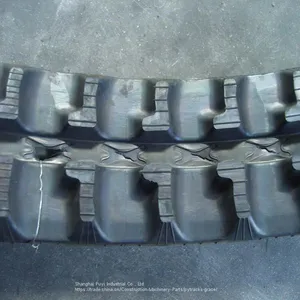

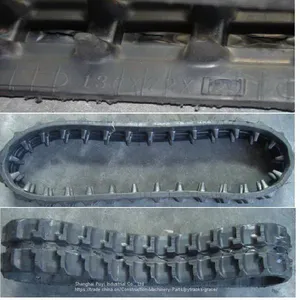

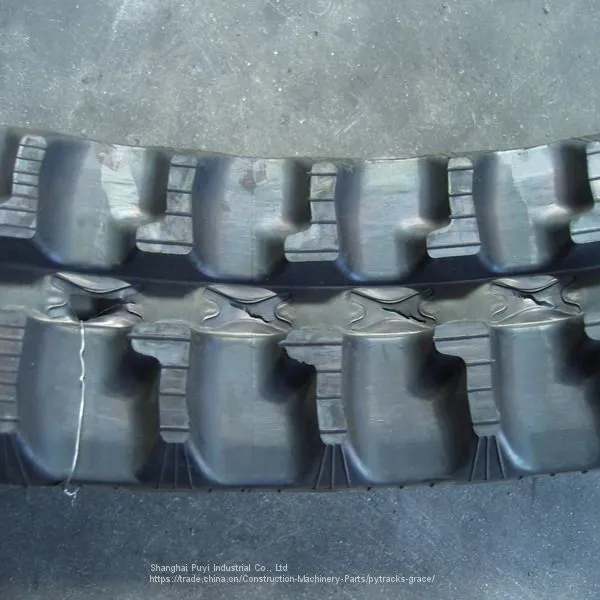

Rubber Tracks 130*72*29 for Robotic Machinery

Rubber Tracks 130*72*29 for Robotic Machinery thumbnail-1
Rubber Tracks 130*72*29 for Robotic Machinery thumbnail-2
Rubber Tracks 130*72*29 for Robotic Machinery photo-1
Rubber Tracks 130*72*29 for Robotic Machinery photo-2
US$ 35 - 40 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Puyi
Place of Origin:
China
Model Number:
130*72*29
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Puyi
Place of Origin China
Model Number 130*72*29

Commodity:130mm Width Rubber Track for Mini Excavator (130-72-29)

Specifications:
1.The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

2. Application
Small machine, Robotic Machinery and other special machine

3. Convontional type or interchangeable type rubber track


4. Packaging & Delivery
1). Packing: Bare package or Pallet
2). Delivery time: 10days.
5. Other condiation:
1). MOQ: 2 Piece
2). Supply Ability: 5000 Pcs/Month
3). Brand: OEM is ok
4). Color: Black
6. Warranty: Guarantee one year under normal use.


We can provide you with various kinds of rubber track, if you have interest in them, send me a message and I will be at your service at any time.

We can also supply small wheels, and you can send messege for more information.

Applicable machines small kind machine
Material  rubber
Specification 130-72-29


Notice:Length can be adjusted according to your requirement.Please contact with us and send your inquires,we will also give a recommandation.

Parameters:



size width*pitch		 link A B C D F pattern guiding
130*72 29-40 23 64.5 28 28 15 AF1 A2
150*60 32-40 22 64 22.5 24.5 15 AC A2
150*72 29-40 23 64 23 23 15 AC A2
170*60 30-40 19 57 22 22 13 CE A1
180*60 30-40 23.5 64 21 21.5 15 AM A1
180*72 31-43 25 68 29 29 15 BK A2
180*72K 32-48 20 61 22 19.5 17 BB1 B2
B180*72 31-43 23 66 30 29 15 BB1 B2
H180*72 30-50 23 64 27 26 17 BK A2
190*60 30-40 23.5 64 21 21.5 14 AM A1
190*72 31-41 21 68 27.5 26.5 15 BF A2
200*72 34-47 23 76 28.5 26.5 18 BB1 A2
200*72K 37-47 21 69 29.5 29 18 BM A2
Y200*72 40-52 24 64 28.5 29.5 12 BK A2
230*48 60-84 24 72 24 25 21 BI B1
230*48K 60-84 24 66 21 20 19 BI B2
230*72 42-56 24 82 30 26 18 AF1 A2
230*72K 42-56 20 69 29.5 28 16 BD A2
230*96 30-48 25 68 23.5 25.5 22 BE B1
230*101 30-36 25 74 22.5 29 19 BO B1
250*47K 84 23 70 24 20 22 BD B2
250*48.5K 80-88 24 66 21 20 19 CA B2
250*52.5K 72-78 26 81 23 25 25 BA B2
250*52.5 72-78 29 72 23 25 21 BI B1
250*72 47-57 24 82 30 26 18 AF1 A2
B250*72 34-60 23 64 29 22 10 CI A2
B250*72B 34-60 23 78 29 26 16 AB B2
250*96 35-38 25 70 20 19 22 BB1 B2
250*109 35-38 40 89 24.5 14 20 CG B1
260*55.5K 74-80 31 80 21.5 27 24 CA B2
Y260*96 38-41 25 68 23 25.5 22 AB B1
260*109 35-39 30 84 24 29 15 AB B1
E280*52.5K 70-88 29 84 27 26 22 BI B2
280*72 45-64 25 78 29.5 26 22 AL A2
Y280*106K 35-42 30 80 27.5 28 20 AB B2
300*52.5N 72-98 30 82 25 18 20 BI B1
300*52.5W 72-92 43 96 22 23 22 BE B1
300*52.5K 70-84 29 84 27 26 22 BI B2
300*52.5KW 72-92 40 92 25 24 22 BI C1
E300*52.5K 70-88 29 84 27 26 22 BI B2
KB300*52.5 72-92 40 90 24.5 24.5 22 BI C1
KB300*52.5N 72-98 30 82 23 20 25 BI B1
JD300*52.5N 72-98 30 80 23.5 22 22 BI B1
300*53K 80-96 31 88 25 19.5 21 BI B2
300*55 70-88 29 86 25.5 27.5 23 BI B1
300*55.5K 76-82 31 82 22 27 21.5 CA B2
300*71K 72-76 42 106 23 24 40 BD B2
300*72 36-40 23 75 40 34 18 BK A2
BA300*72 36-46 26 76 29 27 19 AF1 A2
300*109N 35-42 29 82 27 28 25 BE B1
300*109W 35-44 38 90 26 29 24 BB1 B1
K300*109 37-41 27 85 23.5 27.5 20 AB B2
300*109WK 35-42 40 90 24.5 14 23 CG B1
320*52.5 72-98 30 83 23.5 18 21 BI B1
320*54 70-84 29 80 23 21 20 AB B1
B320*55K 70-88 30 82 25 30 23 BE B2
Y320*106K 39-43 31 80 26 27 24 AB B2
350*52.5 70-92 40 94 22.5 19 30.5 BE B1
E350*52.5K 70-88 29 84 27 26 22 BI B2
350*54.5K 80-86 40 92 23.5 22.5 23 AD B2
B350*55K 70-88 30 82 25 30 23 BE B2
350*56 80-86 39 89 25.5 16.5 20.5 BC B1
350*75.5K 74 37 98 24.5 25 25 CA C2
350*108 40-46 40 90 24.5 14 25 CG B1
350*109 41-44 40 92 26 20 25 BO B1
Y370*107K 39-41 38 94 25.5 28 23.5 AB B2
400*72.5N 70-80 38 100 26 24 25 AF3 B1
400*72.5W 68-92 51 108 26 24 25 BI B1
Y400*72.5K 72-74 28 86 30 24.5 25 AF3 C2
KB400*72.5K 68-76 37 94 24 26 23.5 BA B2
400*72.5KW 68-92 46 112 24 23.5 25 BI B2
400*74 68-76 38 100 25.5 29.5 24 BH2 B1
400*75.5K 74 39 100 25 26 25 CA C2
Y400*107K 46 38 89 27 25 25 AB C2
K400*142 36-37 27 87 34 27 29 CF C2
400*144 36-41 47 98 27 11 30 CF B1
Y400*144K 36-41 35 126 29.5 26 25 BE B2
450*71 76-88 42.5 115 29.5 17 30 BE B1
DW450*71 76-88 44 114 31 27 25 BD B1
450*73.5 76-84 42 118 31 34 28 CG B1
450*76 80-84 48 122 30.5 31.5 26 BI B1
450*81N 72-80 42 117 26 24 27 BE B1
450*81W 72-78 58 140 29 32 30 BI B1
KB450*81.5 72-80 42 110 31.5 27.5 26 BD B1
K450*83.5 72-74 42 112 24.5 25 28 BI B1
Y450*83.5K 72-74 38 113 24 27 26 CA B2
K450*163 38 38 114 27 28 30 AB B2
485*92W 74 62 142 34 33 30 BE B2
K500*71 72-76 41 106 23 24 42 BE B2
500*92 72-84 48 130 27 26 29 BI B1
500*92W 78-84 64 155 32.5 35.5 33 BI B1
K500*146 35 40 106 26.5 24.5 50 BB1 A2
