S&A laser air cooled chiller CW-5200 manufacturer/supplier

S&A laser air cooled chiller CW-5200 manufacturer/supplier

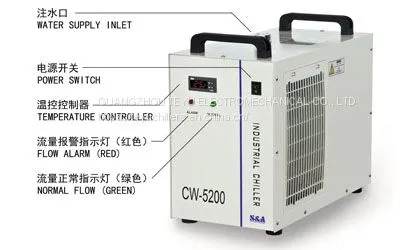

S&A brand CW-5200 laser air cooled chiller ‘s cooling capacity up to 1.4KW , ±0.3℃ temperature control precision and temperature control range in 5-35℃. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

S&A chillers have passed ISO, CE,RoHS and REACH approvals and the warranty is 2 years.

CW-5200 video: /Article/03SAwaterchillerCW5200_1.html

chiller CW-5200 specfications:

 Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L

Max. lift:10M-25M; Max. flow: 10L/min- 16L/min

N.W: 26Kgs; G.W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand

S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 18,000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty

2.±0.1℃ high precision temperature control, stable cooling performance,support ModBus-485 communication;

3. Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2. Anual ouput 60,000 units,product exports rate above 60%；

3. Standard bulk production,standard parts rate up to 80% ；

4. With excellent laboratory testing system, simulates actual working environment for chiller.
