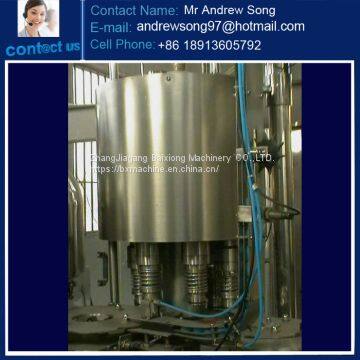

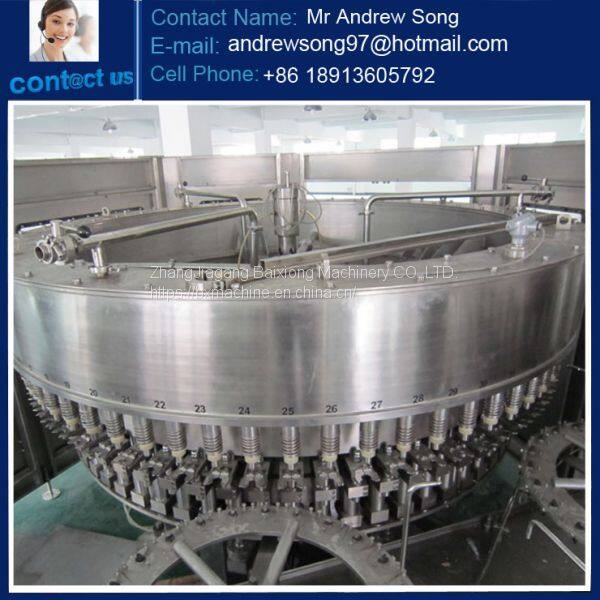

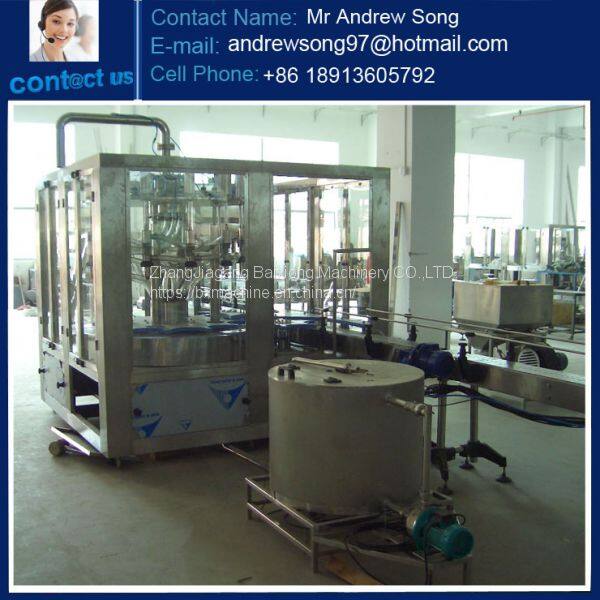

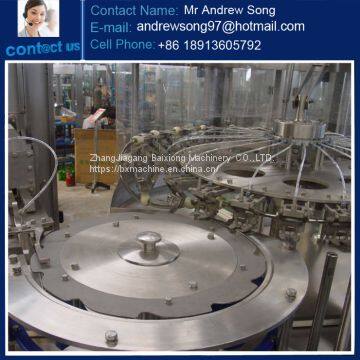

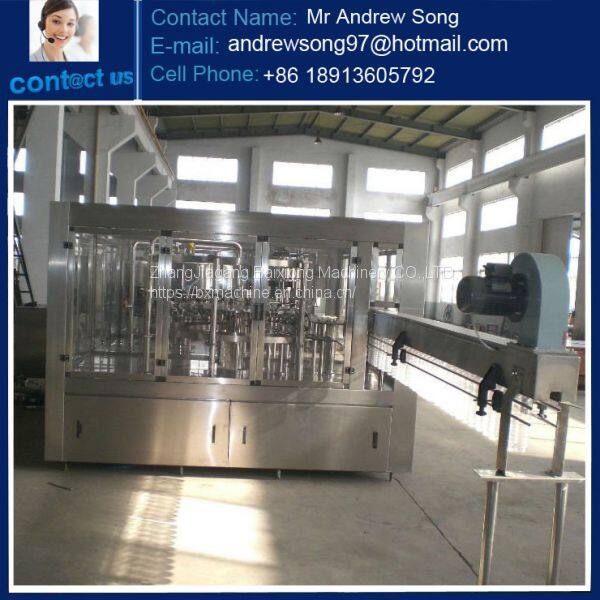

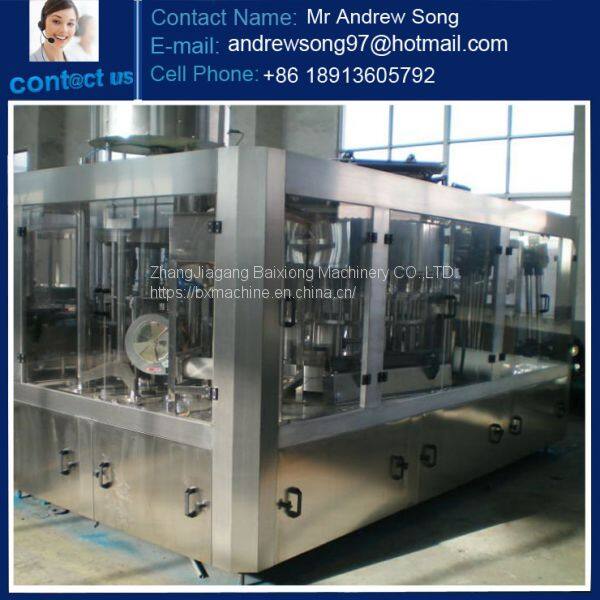

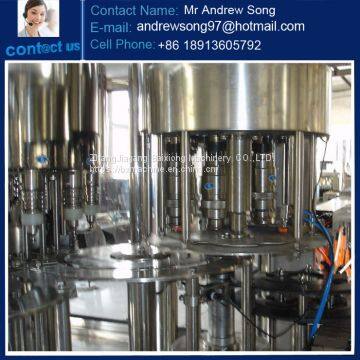

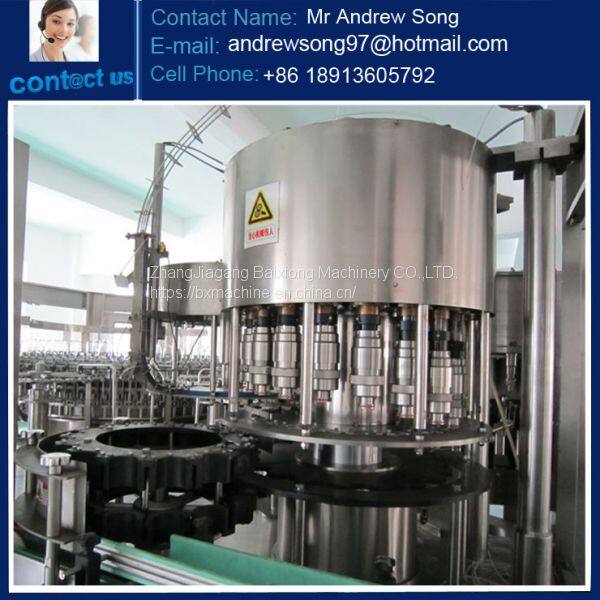

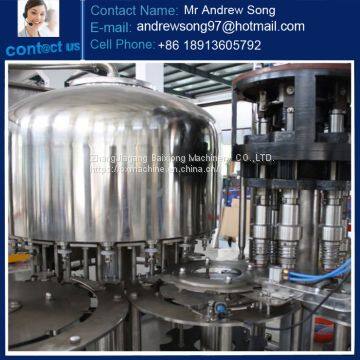

3 in 1 Drinking Purified Water Washing Filling Capping Machine Production Line Automatic Water Bottle Filling Machine
US$ 15000 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BX
Place of Origin:
China
Model Number:
CGF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Automatic Mineral Water/Juice Bottle Washing Filling Capping Machine Zhangjiagang PriceUS$ 15000 - 100000MOQ: 1 Piece -
Zhangjiagang Mineral Water Pure Water 3 In1 Bottle Filling Machine LineUS$ 15000 - 100000MOQ: 1 Piece
-
Full Automatic Mineral Water Filling Machine/bottled Filling Line Three in One UnitUS$ 10000 - 1000000MOQ: 1 Piece
-
Food & Beverage Application High Perfomance Pure Water Bottle Filling MachineUS$ 10000 - 1000000MOQ: 1 Piece
-
Small Production Processing Line of Mineral Water Filling MachineUS$ 10000 - 1000000MOQ: 1 Piece
Brand Name
BX
Place of Origin
China
Model Number
CGF
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
depending on different models
Dimension(L*W*H)
depending on different models
Condition
New
Voltage
according to clients' requirements
Power(W)
depending on different models
Processing Types
drinking water
3 in 1 drinking purified water washing filling capping machine production line automatic water bottle filling machine customized
Specifications of water washing filling capping machine production line automatic water
Product Description
(1) The water washing filling capping machine production line automatic water is suitable for different types of PET bottles such as mineral water,juice drink,milk and so on .
(2) The water washing filling capping machine production line automatic water volume is 0.25L-2L and speed is 2000-36000pcs/hour
(3) The water washing filling capping machine production line automatic water uses SS316 and SS304 stainless steel that accord with the CE standard and ISO9000.
| Technical parameters | 8/8/3 | 18-18-6 | 24-24-8 | 32-32-10 |
| Production capacity (500ml)(B/H) | 3000 | 6000 | 10000 | 14000 |
| Bottle washing station | 2 | 2.5 | 5 | 6 |
| Drying station | 2 | 3.5 | 6 | 10 |
| PET bottle size (mm) | D=60~97mm | |||
| H=150~320mm | ||||
| Capping torque (N.m) | 0.6~2.8 | 0.6~2.8 | 0.6~2.8 | 0.6~2.8 |
| Installed capacity (Kw) | 2.38 | 2.38 | 4.18 | 4.18 |
| Compressed Air consumption(0.6Mpa)Nm3/min | 0.5 | 0.5 | 0.6 | 0.8 |
| Washing bottles water consumption(0.2-0.25Mpa)m3/h | 1.5 | 1.5 | 1.5~2 | 1.5~2 |
| Dimension(L*W*H)(mm) | 2300×2000×2850 | 2500×2000×2850 | 2800×2300×2850 | 4150×2560×2850 |
| Weight(t) | 4 | 4.5 | 6 | 7 |
