Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Small Production Processing Line of Mineral Water Filling Machine
Small Production Processing Line of Mineral Water Filling Machine
US$ 10000 - 1000000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BX
Place of Origin:
China
Model Number:
CGF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Full Automatic Bottle Drinking Water Plant/mineral Water Factory/drinking Water Production LineUS$ 10000 - 1000000MOQ: 1 Piece -
Complete Bottled Drink / Drinking Water Bottling Plant / FactoryUS$ 10000 - 1000000MOQ: 1 Piece
-
China Perfect Pure Water Filling Machine For Pet BottleUS$ 10000 - 1000000MOQ: 1 Piece
-
Turnkey Mineral / Spring Water Bottling PlantUS$ 10000 - 1000000MOQ: 1 Piece
-
Automatic Drinking Water Bottling Machine for WaterUS$ 15000 - 100000MOQ: 1 Piece
Brand Name
BX
Place of Origin
China
Model Number
CGF
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
according to different models of machine
Dimension(L*W*H)
according to different models of machine
Condition
New
Voltage
depending on clients' requirements
Power(W)
according to different models of machine
Processing Types
water

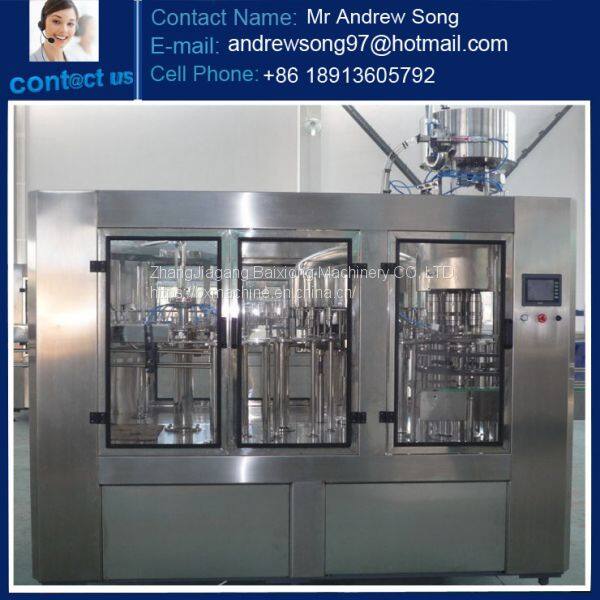

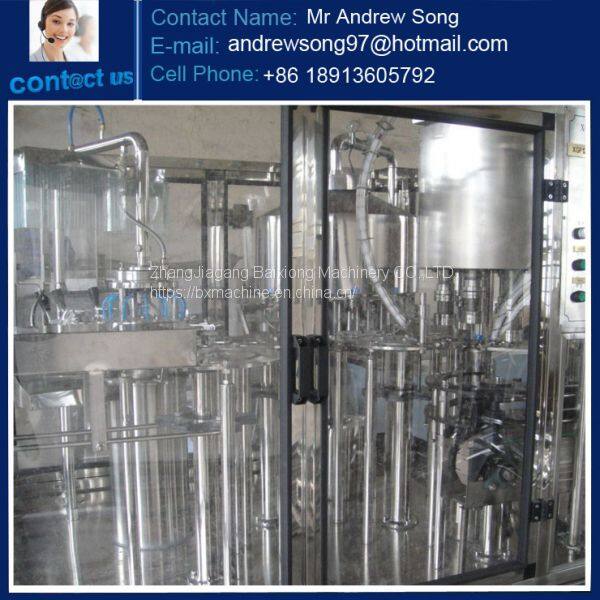

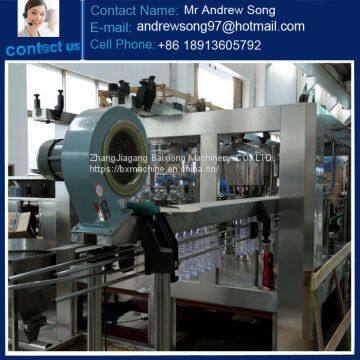

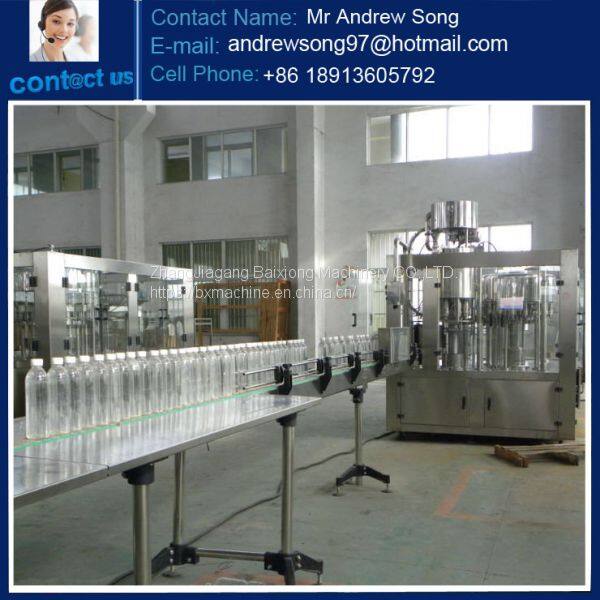

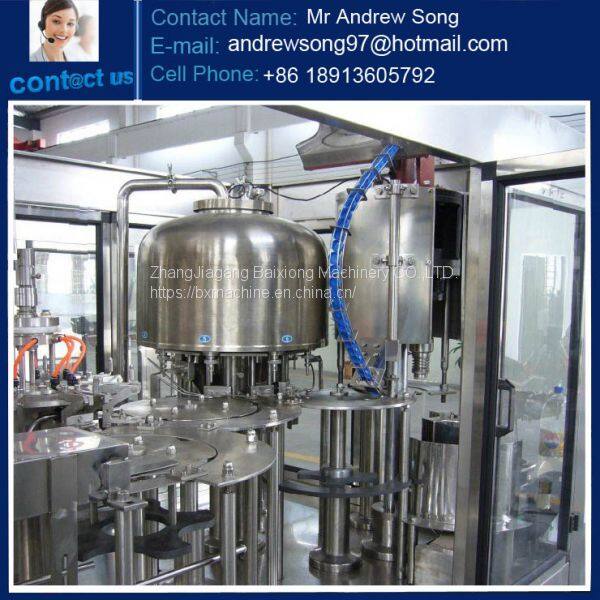

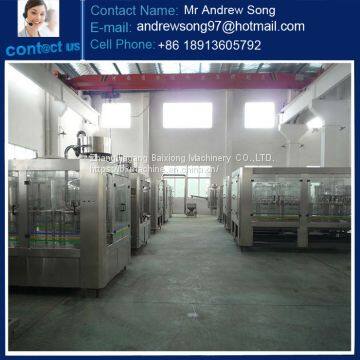

Small Production processing line of Mineral water filling machine
This series machine integrates washing, filling and capping into one unit. It can be used for hot filling production of different kinds of fruit juice, tea. This series machine can also be used for filling purified and mineral water.
Features:
1. The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3. The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed and also, temperature control device and CIP washing interface are intalled.
4. This machine can meet all the technical requirements for hot filling below 95 degree. And before capping, bottle mouth will be cleaned by RO washing device.
5. Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
Main Technological data:
MODEL | CGF14-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| CAPACITY (b/h) : | 2000 | 5000 | 8000 | 12000 |
| FILLING PRECISION : | ≤+ 5mm (Liquid Level) | |||
| Fills installs the pressure (MPa) : | ≤0.4 | |||
| Gathers the fat bottle specification(mm) (Bottle Diameter): | φ50-φ100;(Height):150-310 | |||
| suitable cap Shape : | Plastic Screw Cap | |||
| Total output (kw) : | 3 .13 | 3.84 | 3.84 | 5.8 |
| (weight kg) : | 3000 | 3500 | 4000 | 5000 |
| Overall dimensions(mm) : | 1800x1600x2100 | 2300x1860x2100 | 3050x2000x2100 | 4500x2200x2100 |
