Turnkey Mineral / Spring Water Bottling Plant

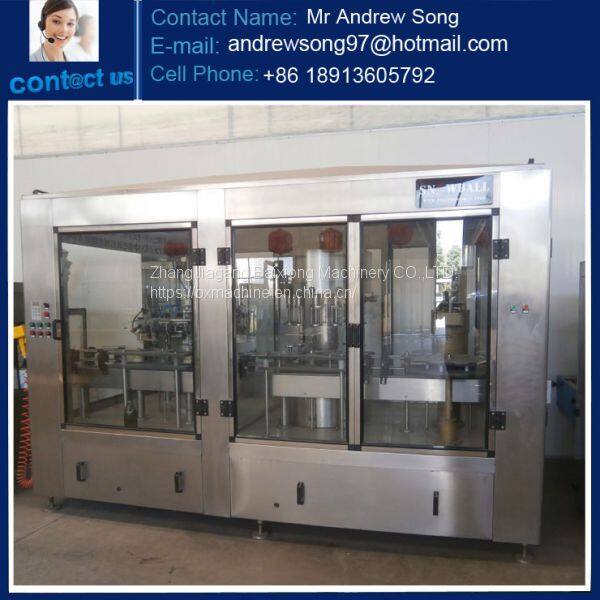

Turnkey Mineral / Spring Water Bottling Plant photo-1

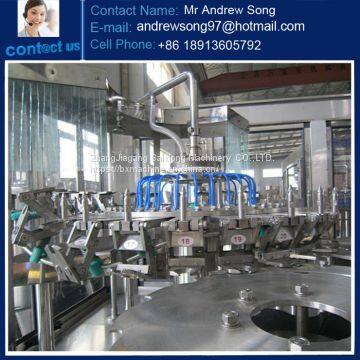

Turnkey Mineral / Spring Water Bottling Plant photo-2

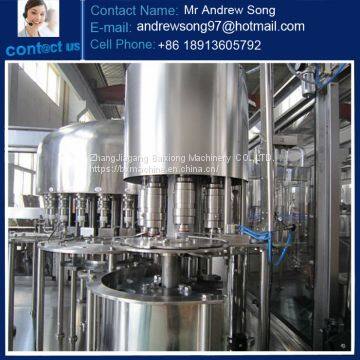

Turnkey Mineral / Spring Water Bottling Plant photo-3

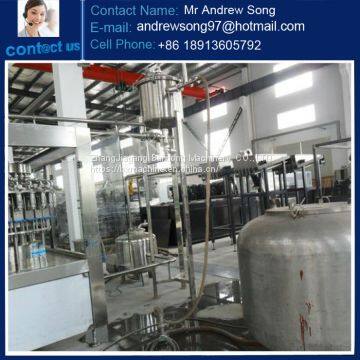

Turnkey Mineral / Spring Water Bottling Plant photo-4

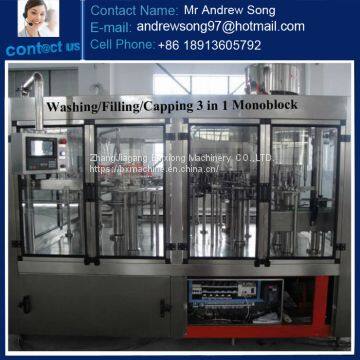

Turnkey Mineral / Spring Water Bottling Plant photo-5
US$ 10000 - 1000000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BX
Place of Origin:
China
Model Number:
CGF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Brand Name BX
Place of Origin China
Model Number CGF
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight according to different models of machine
Dimension(L*W*H) according to different models of machine
Condition New
Voltage depending on clients' requirements
Power(W) according to different models of machine
Processing Types water
Turnkey Mineral / Spring Water Bottling Plant

Features



1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.



2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.



3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.



4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.



5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Parameters



Model

CGF

16-12-6

CGF

18-18-6

CGF

24-24-8

CGF

32-32-10

CGF

40-40-12

CGF

50-50-15

Washing No.

16

18

24

32

40

50

Filling No.

12

18

24

32

40

50

Capping No

6

6

8

10

12

15

Production Capacity(500ml)

4000BPH

6000BPH

10000BPH

12000

BPH

16000

BPH

24000

BPH

Install Capacity(KW)

3.5

4

4.8

7.6

8.3

9.6

Overall size

2450×1800×2400

2650×1900×2400

2900×2100×2400

4100×2400×2400

4550×2650×2400

5450×3210×2400
