DTH Drill is a new type of drilling equipment, large diameter hole drilling operation is widely applied in medium and small mines and road construction, national defense, water conservancy, in rock engineering, and open-pit mine early mining indispensable drilling equipment.
Feature of Pneumatic DTH Drilling Rig:
1) Easy operation and high efficiency as the hydraulic feeding be taken.
2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
3) The pressure indicator of bottom hole can observe and control the well conditions easily.
4) Close levers, convenient to operate.
5) Compact size and light in weight are easy to set up and transport on working plains and mountain area.

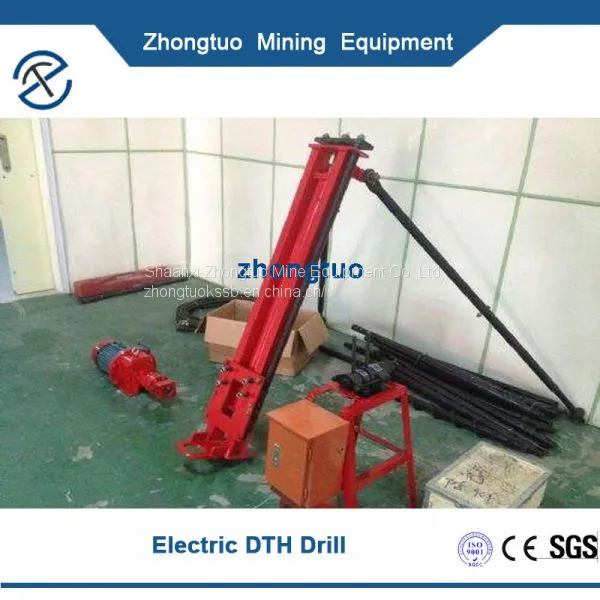

Advantage of Electric DTH Drill:
1. Forward,turn,and the impact of all the compressed air as power,structure simple,
power,relocation facilities.
2. In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
3. Centralized control mechanism,easy to operate.
4. Unique dual muffler,muffler effect, reducing environmental pollution
Specification of jupiter rock drills:
Model |
Hole diameter |
Hole depth |
Working pressure |
Air consumption |
Remark |
(mm) |
(m) |
(MPa) |
(m3/min) |
||
ZTD 70 |
60--80 |
≥15 |
0.5—0.7 |
≥3.5 |
3kw |
ZTD100B |
80--100 |
≥20 |
0.5—0.7 |
≥6 |
4kw |
ZTD 100 |
80--100 |
≥20 |
0.5—0.7 |
≥6 |
4kw |
ZTD 120 |
80-100 |
≥20 |
0.5—0.7 |
≥6 |
5.5kw |
ZTD145B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
ZTD150B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
ZTD165 |
90-150 |
≥50 |
0.7-1.4 |
≥15 |
11kw |

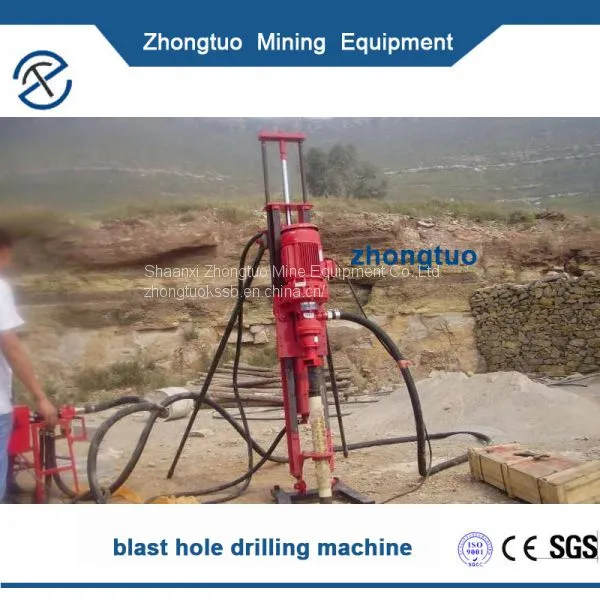

Application of Portable DTH Drill:
It's used for drilling large blast hole.It's especially convenient to be used during the initial period of opencast working,other drill carriage unable to reach,unable to carry on the normal work.
