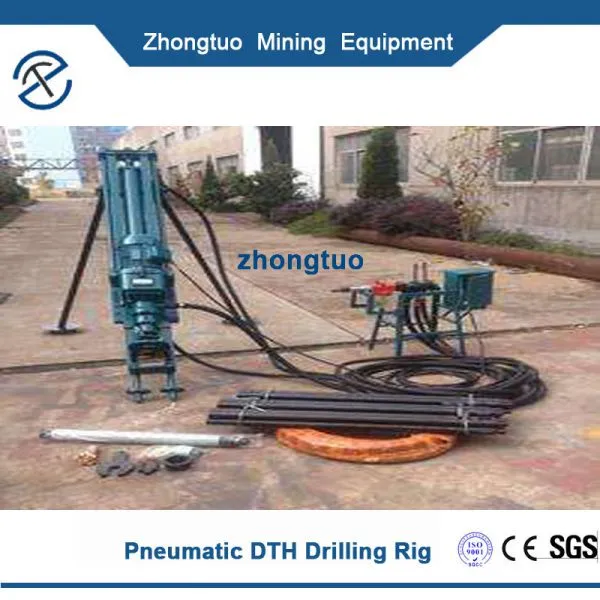

Descriptions of Pneumatic DTH Drilling Rig :
1. With motor for rotary power, economy, high efficiency and energy saving
2.Adopt cycloidal or spur gear transmission speed reducer, big rotary torque, drilling in high efficiency.
3. Novel overload protection, and makes drilling machine operation stable and reliable

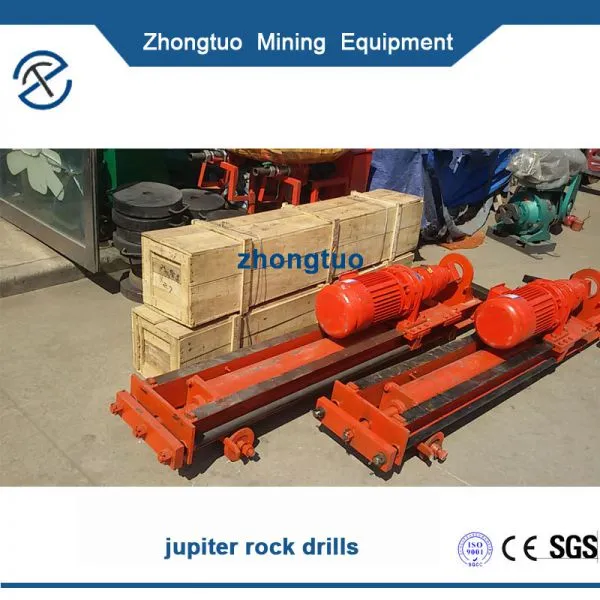

Characteristics of jupiter rock drills :
1. Compact structure, easy operation, quick cutting speed, high efficiency, good demolition, convenient transport;
2. The energy loss does not increase with the drill rod increasing;
3. Working noise is greatly reduced;
4. Higher degree of mechanization, less auxiliary operation time, improving the drilling rig operating rate.
Advantage of Electric DTH Drill:
1. Forward,turn,and the impact of all the compressed air as power,structure simple,
power,relocation facilities.
2. In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
3. Centralized control mechanism,easy to operate.
4. Unique dual muffler,muffler effect, reducing environmental pollution
Parameter of Portable DTH Drill:
Model |
Hole diameter |
Hole depth |
Working pressure |
Air consumption |
Remark |
(mm) |
(m) |
(MPa) |
(m3/min) |
||
ZTD 70 |
60--80 |
≥15 |
0.5—0.7 |
≥3.5 |
3kw |
ZTD100B |
80--100 |
≥20 |
0.5—0.7 |
≥6 |
4kw |
ZTD 100 |
80--100 |
≥20 |
0.5—0.7 |
≥6 |
4kw |
ZTD 120 |
80-100 |
≥20 |
0.5—0.7 |
≥6 |
5.5kw |
ZTD145B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
ZTD150B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
ZTD165 |
90-150 |
≥50 |
0.7-1.4 |
≥15 |
