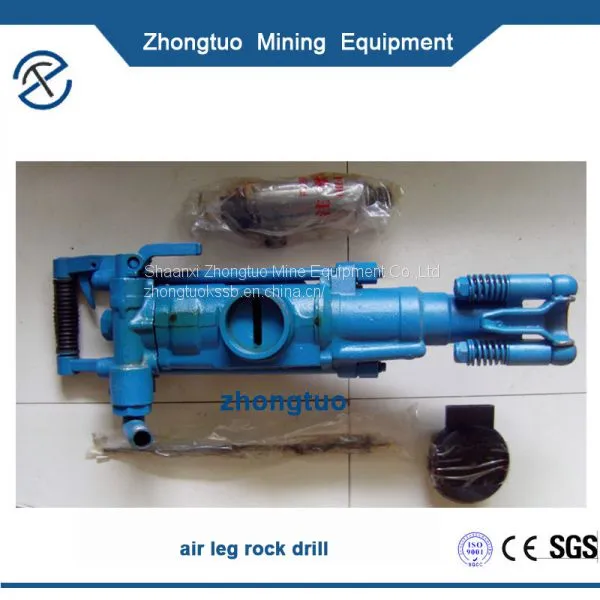

Description of air leg rock drill:
YT28 is suitable for rock drilling on hard or hard rock and has a strong adaptability to working conditions. The product has high efficiency, long life and durable. In general with the same type of machine parts, the benefit of the user is not lost when the product is replaced.
Parameter of Rock Drill Jack Hammer:
Product model |
YT28 |
|
Weight kg |
26 |
|
Length mm |
661 |
|
Brazing tail specification mm |
H22×108 |
|
Drilling diameter mm |
34-42 |
|
Piston diameter mm |
80 |
|
Piston stroke mm |
60 |
|
Under the condition of pressure 0.5MPa |
Gas consumption L/s |
≤58 |
Impact frequency Hz |
≥35 |
|
Rotation number r/min |
≥260 |
|
Endotracheal diameter mm |
25 |
|

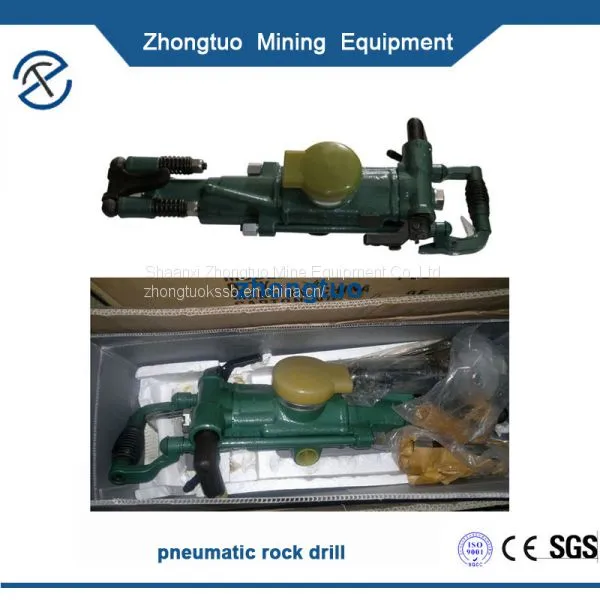

Precautions for the operating rules of pneumatic rock drill:
The operation rules of rock drills are quite complex. If we don't know anything about this information, we believe that it is relatively difficult for us to operate, and it is also a great threat to the safety of the operator. It is very helpful for everyone to be aware of the instructions that have mastered some of the operations of the machine.
First, everyone in the rock when it parts prior to the inspection of the machine of course, in some very small parts, it is recommended to use some tools to check, for example, magnifying glass, etc., but also test the operation of the machine, by checking its operation situation, can feel the efficiency it can bring to you and whether it is need to add diesel oil etc..
Second, we believe that when using the machine, when the machine is lack of humidity, work is more difficult, it is necessary to remind you that everyone in the operation, it will need to open the water, use water to increase the lubrication of the machine, but it is worth noting that the in when you stop working, is finally able to close the water. This will not only improve the efficiency of the use of it, but also enhance the maintenance of the machine in the later period.
Third, if we have to check the instructions of the words before the operation, I believe you can learn to use the rotary drill, when the thousand persons are prohibited from wearing gloves, gloves because voids due to easy, makes the machine down, this is not conducive to the control of the machine, which we need to pay special attention and if there was an accident situation, you can directly call our hotline for help in the first time!

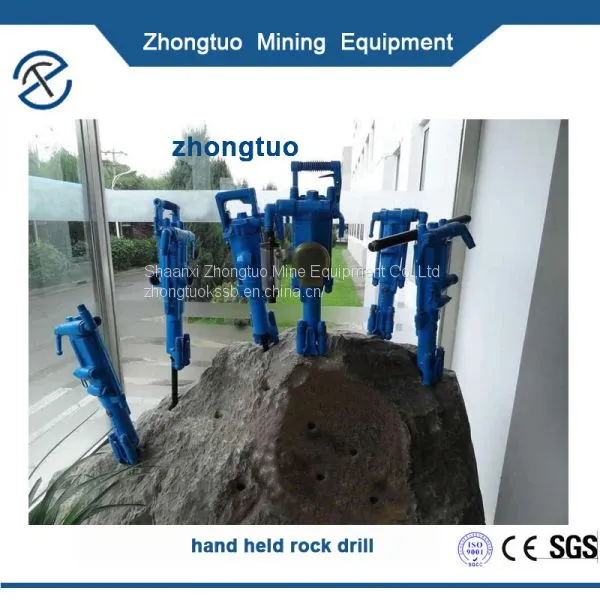

Application of hand held rock drill:
Type YT28 pusher leg rock drill widely used in mining, tunneling and drilling operation. Is an important equipment in metallurgy, coal, railway, transportation, water conservancy, infrastructure and defense in rock engineering.
